SGP Laminated Glass
QR
Product Description
Instead of conventional PVB, SGP laminated glass is built around a structural ionoplast (SGP) interlayer. The result is a laminate that is both stronger and more rigid, five times tougher and up to 100 times stiffer, able to protect against bigger storms, larger impacts and more powerful blasts.
Once laminated, the SGP interlayer acts as an engineered component inside the glass, carrying more weight so the pane can play a more active structural role in the building envelope and give designers greater framing freedom. Glass thicknesses span 3mm to 19mm, SGP thicknesses are 0.89mm and 1.52mm, and jumbo sizes reach 3660x18000mm.
AUGTON GLASS provides factory-direct SGP laminated glass and works with architects and glazing system manufacturers to satisfy higher demands for security, energy efficiency, noise reduction and safety.
Key Features
- Structural SGP ionoplast interlayer, 5 times tougher and up to 100 times stiffer than PVB laminates
- Carries more weight after breakage, turning the glass into an active structural element
- Shields against bigger storms, larger impacts and more powerful blasts
- Greater framing system design freedom through larger unsupported panes and slimmer profiles
- Excellent post-breakage performance: broken panes remain in the frame
- Jumbo formats up to 3660x18000mm in clear and low iron glass
Applications
Structural Glazing

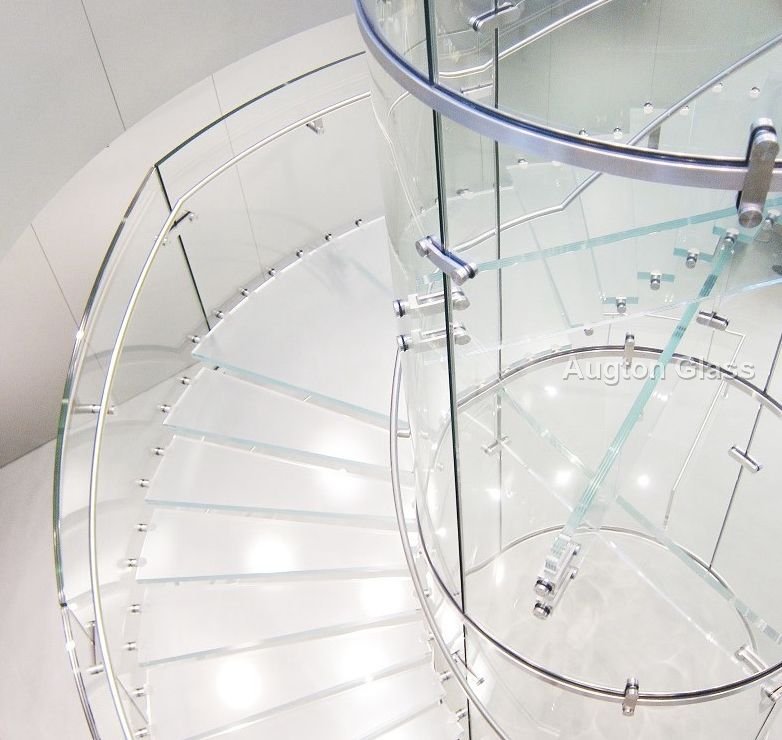

- Glass floors & stairs
- Structural facades
- Point-supported canopies
- Overhead glazing
Hurricane & Blast
- Hurricane-resistant windows
- Blast-resistant facades
- High security glazing
- Embassy & institutional windows
Architecture
- Glass fins & beams
- Curtain walls
- Balustrades
- Skylights
Optical Performance Parameters
SGP interlayer: structural ionoplast, available in 0.89mm and 1.52mm. Compared with PVB, SGP delivers 5x tear strength and up to 100x shear stiffness, enabling structural make-ups such as 8+1.52+8mm and beyond. Max size 3660x18000mm.
Frequently Asked Questions
What thicknesses and sizes are available for SGP Laminated Glass?
SGP Laminated Glass is available in 3mm – 19mm. Jumbo sizes up to 3.66m x 12m are possible, and custom cutting to your drawings is supported.
Do you offer custom processing?
Yes. Accept customized make-ups & structural design support - just send us your drawings, sizes or special requirements.
What certifications do your products hold?
Our SGP laminated glass has passed multiple international authoritative tests and obtained complete conformity certificates, including CE, ISO 9001 and RoHS by SGS. All products comply with GB 15763.3, BS EN 14449 and ASTM E1300 structural design standards, eligible for export to Europe, North America, Australia, Southeast Asia, the Middle East and other regions.
How is the glass packed for export shipping?
SGP laminated glass sheets are separated by anti-scratch film, then packed into ISPM15 heat-treated solid wooden crates with rainproof plastic wrapping and reinforced steel strapping. A-frame racks are available for structural jumbo panels.
How can I get a quote?
Email us at sales@augtonglass.com with your sizes, thickness and quantity - our sales team replies within 24 hours.

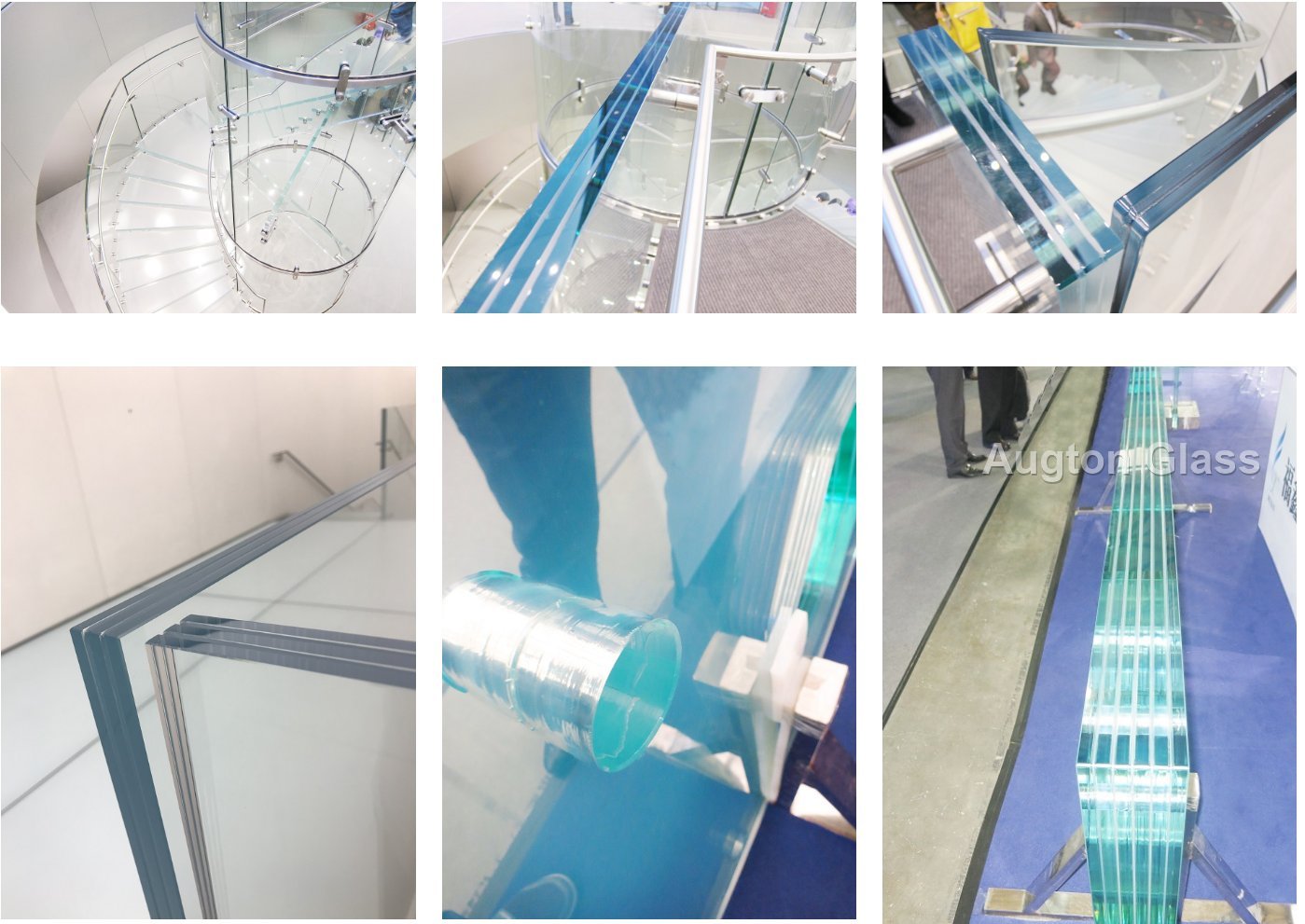

Production Line & Export Packaging
Advanced Automatic Production Workshop
Our SGP laminated glass is produced on full-set automated pre-lamination lines and high-pressure autoclaves. SGP interlayers require higher lamination temperatures and humidity-controlled storage — our clean room and digital autoclave control guarantee fully bonded, optically clear SGP laminates.
Standard Export Wooden Crate Packaging
SGP laminated glass sheets are separated by anti-scratch film, then packed into ISPM15 heat-treated solid wooden crates with rainproof plastic wrapping and reinforced steel strapping. A-frame racks are available for structural jumbo panels.
Certification
Our SGP laminated glass has passed multiple international authoritative tests and obtained complete conformity certificates, including CE, ISO 9001 and RoHS by SGS. All products comply with GB 15763.3, BS EN 14449 and ASTM E1300 structural design standards, eligible for export to Europe, North America, Australia, Southeast Asia, the Middle East and other regions.
We manufacture to the applicable standards of your destination market and can provide test reports, certificates of conformity and Declarations of Performance.
Europe (CE)
CE-marked glass with Declaration of Performance for EU construction products.
Americas
SGCC and IGCC certified safety and insulated glass units.
Australia & New Zealand
Safety glazing certified through SAI Global.
Middle East
SASO / GSO conformity support for Gulf and Levant projects.
