Welding Glass
QR
Product Description
The main component in welding masks and laser goggles is the welding lens, which also goes by welding glass, protective lens or welding goggle lens. Among welding hazards is eye damage from visible light that triggers flash blindness, leaving eyes red and tearful and in serious cases producing blind spots, so correct eye protection is essential.
Welding glass addresses exactly these dangers: it stops infrared and ultraviolet radiation from passing through effectively and reduces the incident visible light, yet workers looking through the lens can still observe the working condition clearly.

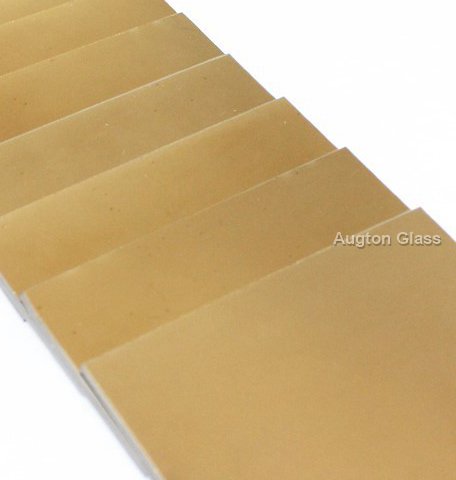

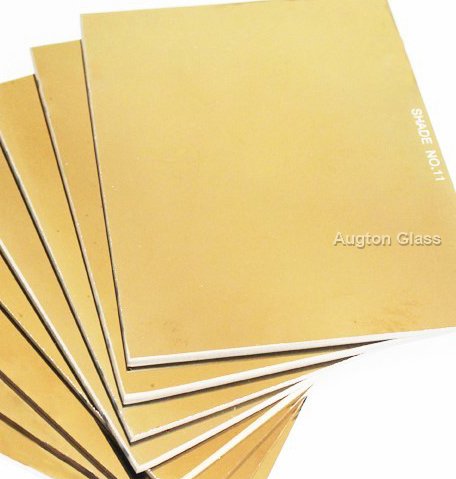

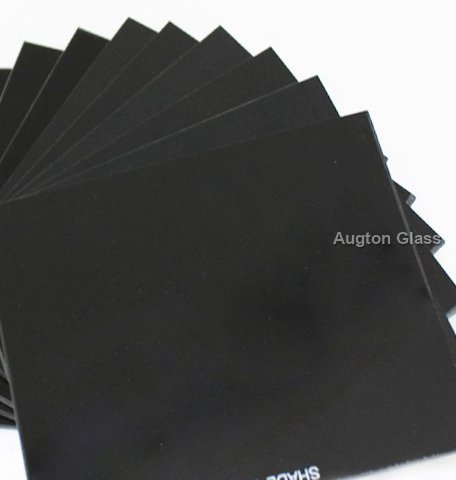

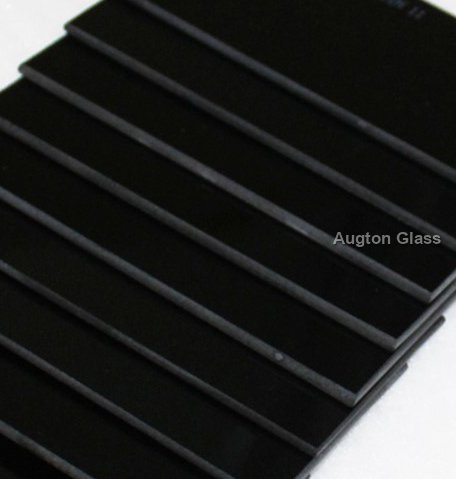

AUGTON GLASS stocks welding glass from DIN 4 to DIN 16 in clear, black, golden and silver. Standard sizes run from 75x98mm to 165x110mm, phi50mm rounds included, and custom sizes are made to order for mask manufacturers worldwide.
Key Features
- Infrared and ultraviolet radiation blocked effectively
- Incident visible light reduced without losing a clear view of the working condition
- Shade No. 4 intended for backman work such as steel rollers and blast furnace firemen
- Shade No. 5-14 covering gas and arc welding, brazing and torch cutting

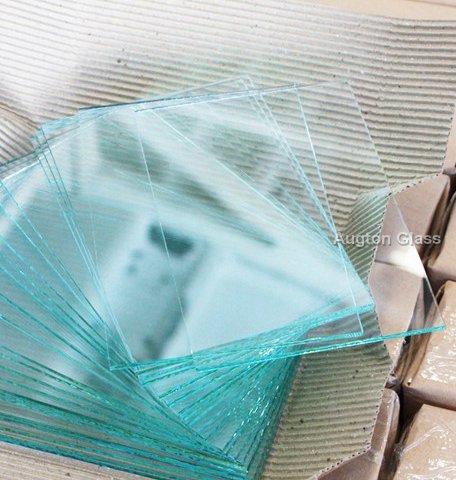

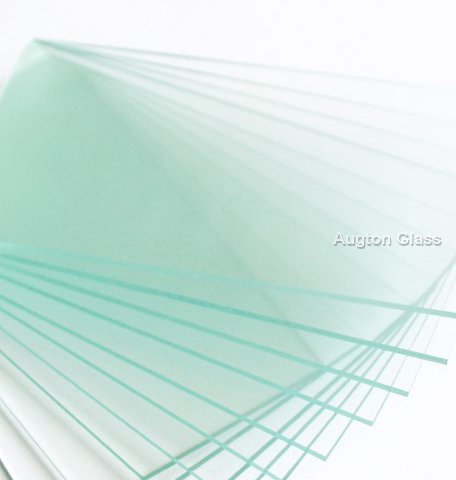

- Clear welding glass at a better price; float glass type with better image formation
- Every standard mask size on offer, plus custom shapes and diameters
Applications
Welding Protection
- Welding masks
- Arc welding (30A-400A+)
- Gas welding
- Brazing
- Torch cutting
Industrial & Fire Safety
- Steel roller backman
- Blast furnace firemen
- Laser goggles
- Furnace observation
Optical Performance Parameters
Light transmittance data of welding glass filters (typical values, per EN 169 shade numbers)
| Shade No. | UV 313nm % | UV 365nm % | Visible Max % | Visible Min % | IR 700-1300nm % | IR 1300-2000nm % |
|---|---|---|---|---|---|---|
| DIN 4 | 0.0003 | 0.95 | 8.5 | 3.2 | 6.4 | 5.4 |
| DIN 5 | 0.0003 | 0.3 | 3.2 | 1.2 | 3.2 | 3.2 |
| DIN 6 | 0.0003 | 0.1 | 1.2 | 0.44 | 1.7 | 1.9 |
| DIN 7 | 0.0003 | 0.037 | 0.44 | 0.16 | 0.81 | 1.2 |
| DIN 8 | 0.0003 | 0.013 | 0.16 | 0.061 | 0.43 | 0.68 |
| DIN 9 | 0.0003 | 0.045 | 0.061 | 0.023 | 0.2 | 0.39 |
Frequently Asked Questions
What thicknesses and sizes are available for Welding Glass?
Welding Glass is available in 1.5mm - 3mm. Jumbo sizes up to 3.66m x 12m are possible, and custom cutting to your drawings is supported.
Do you offer custom processing?
Yes. Custom sizes and shapes, shade numbers DIN 4-16 to order - just send us your drawings, sizes or special requirements.
What certifications do your products hold?
Welding glass is tested to EN 169 shade number transmittance requirements, with UV, visible and IR values verified per batch. ISO 9001 certified production; factory test reports available for every shade from DIN 4 to DIN 16.
How is the glass packed for export shipping?
Lenses are packed in paper sleeves, assorted by shade number in inner boxes and master cartons, ready for mask manufacturers and safety equipment distributors.
How can I get a quote?
Email us at sales@augtonglass.com with your sizes, thickness and quantity - our sales team replies within 24 hours.
Production Line & Export Packaging
Filter Glass Production
Welding filters are produced from sheet or float glass in controlled shade batches - each DIN shade verified for UV, visible and IR transmittance - then cut and ground to mask sizes with chamfered edges.
Carton & Inner-Box Packaging
Lenses are packed in paper sleeves, assorted by shade number in inner boxes and master cartons, ready for mask manufacturers and safety equipment distributors.
Certification
Welding glass is tested to EN 169 shade number transmittance requirements, with UV, visible and IR values verified per batch. ISO 9001 certified production; factory test reports available for every shade from DIN 4 to DIN 16.
We manufacture to the applicable standards of your destination market and can provide test reports, certificates of conformity and Declarations of Performance.
Europe (CE)
CE-marked glass with Declaration of Performance for EU construction products.
Americas
SGCC and IGCC certified safety and insulated glass units.
Australia & New Zealand
Safety glazing certified through SAI Global.
Middle East
SASO / GSO conformity support for Gulf and Levant projects.
