Product Description
Rolling is what gives pattern glass its character: single-sided or double-sided embossed patterns are formed on a translucent decorative glass during the production process. Light passes through fully while direct perspective is effectively blocked, creating an excellent combination of brightness and privacy.
Thicknesses run from 2.2mm to 12mm across more than 20 original designs — hazy and quiet, lively, antique and elegant, or bold and imaginative. Each pattern carries a strong stereoscopic impression and will never fade, and the glass can be cut, ground, drilled, tempered, laminated and screen printed for further processing.
AUGTON GLASS forms these patterns in-house and ships clear patterned glass direct, offering customized sizes, a wide choice of pattern designs and one-stop deep-processing services for global buyers.
Key Features
- Translucent decorative glass that transmits light fully while blocking direct perspective
- Colorful, original designs — hazy, lively, antique and elegant, or bold and imaginative
- Strong stereoscopic pattern impression that will never fade
- Fully re-processable: cutting, grinding, drilling, tempering, laminating and screen printing

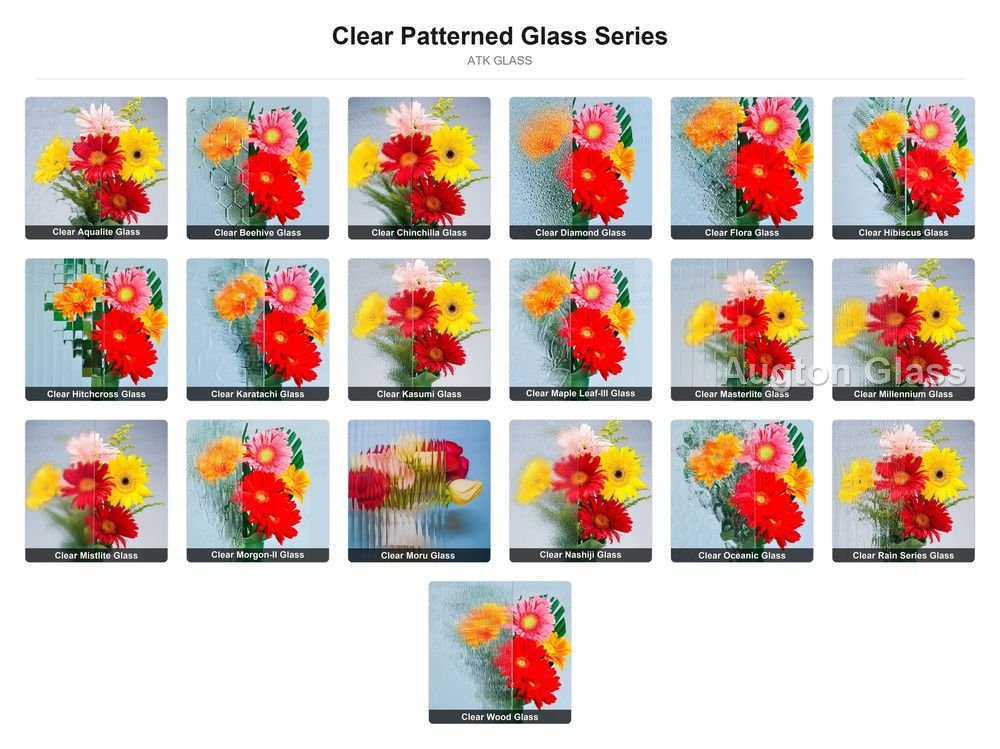

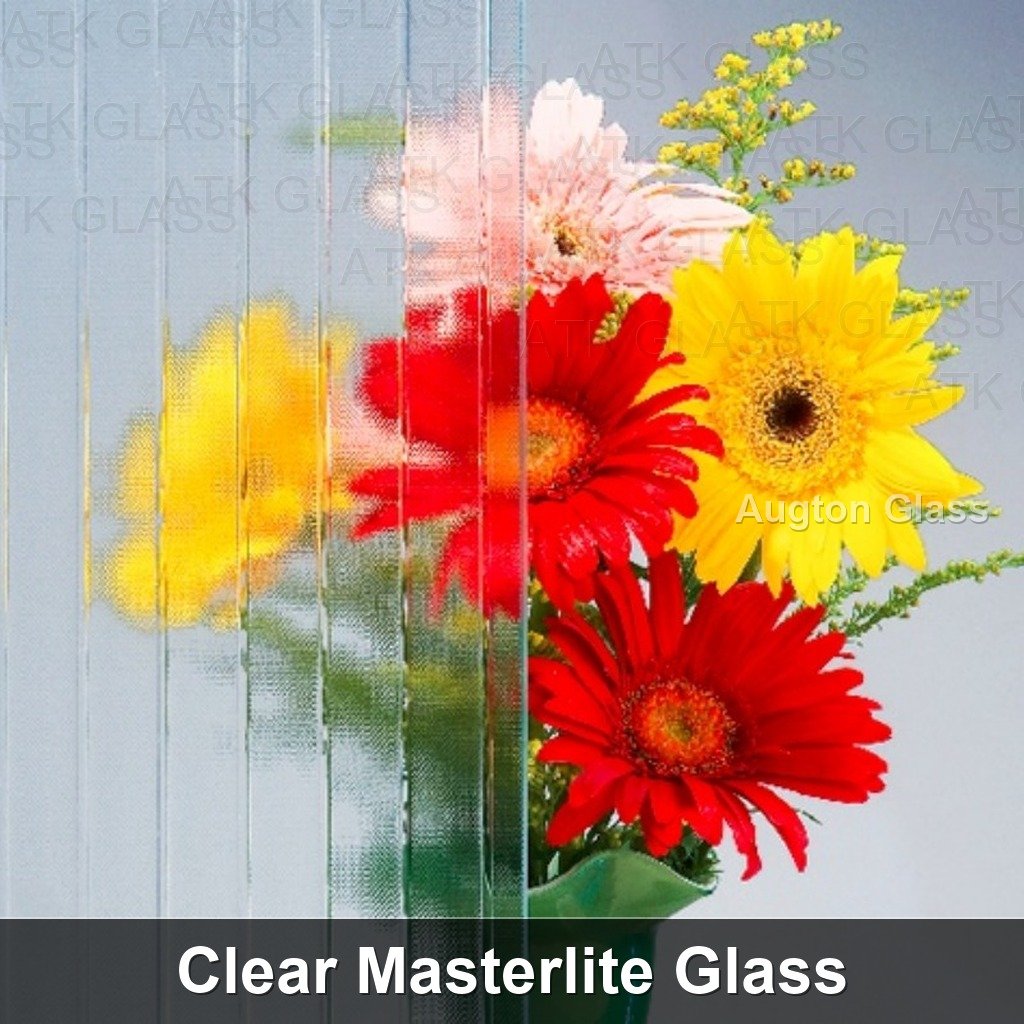

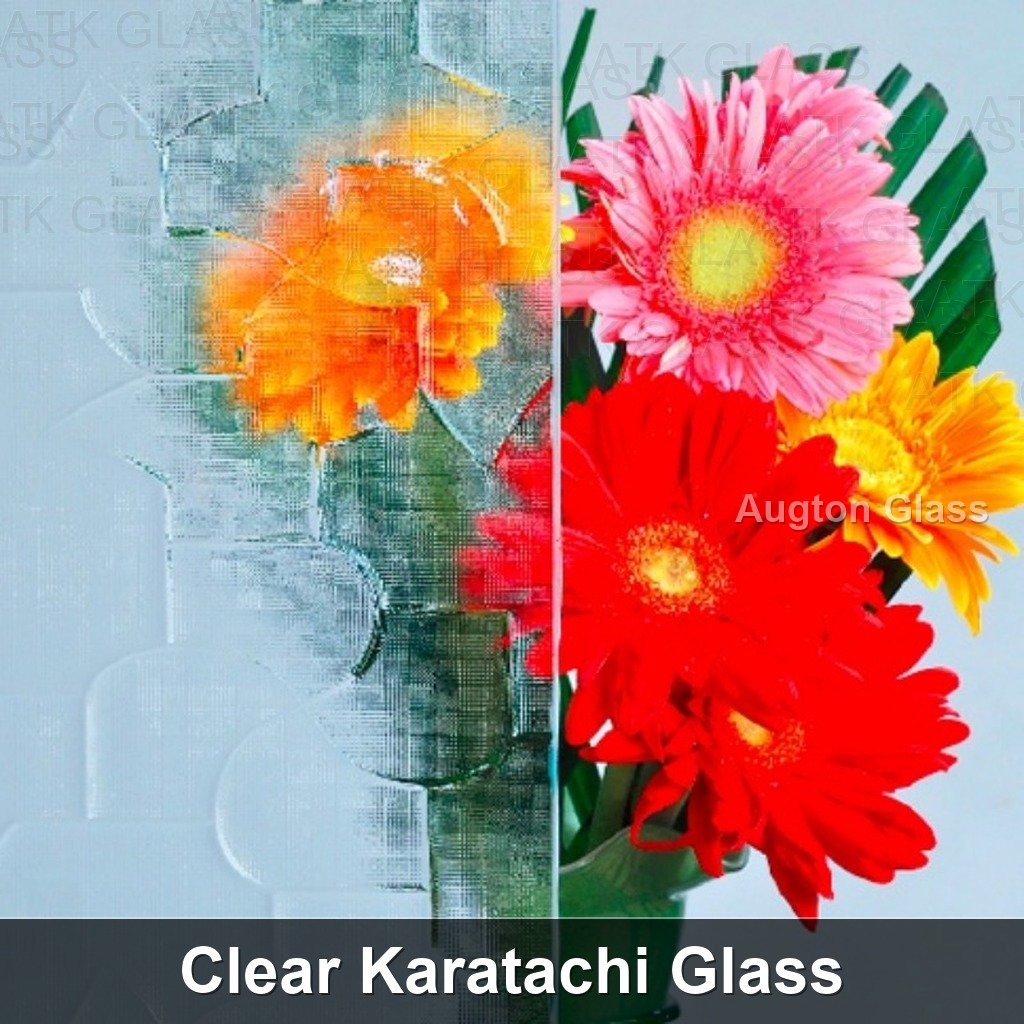

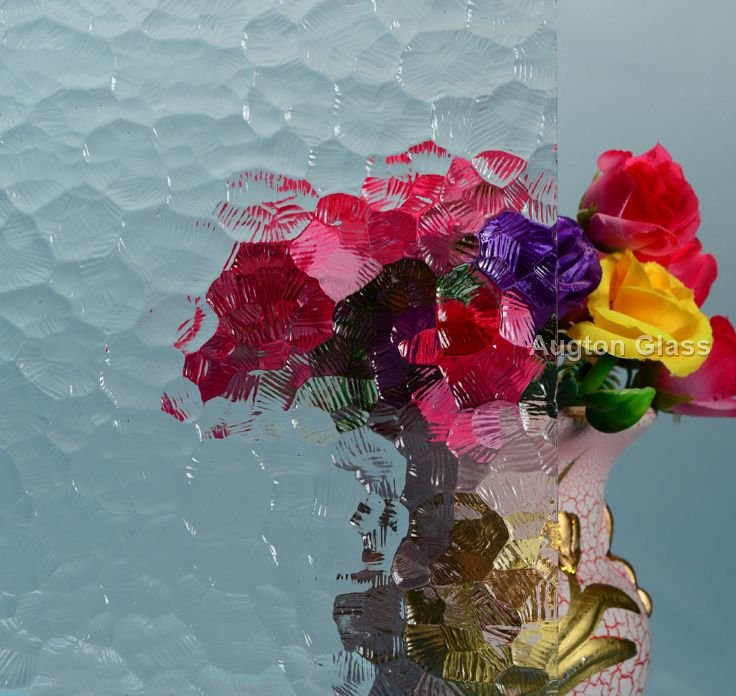

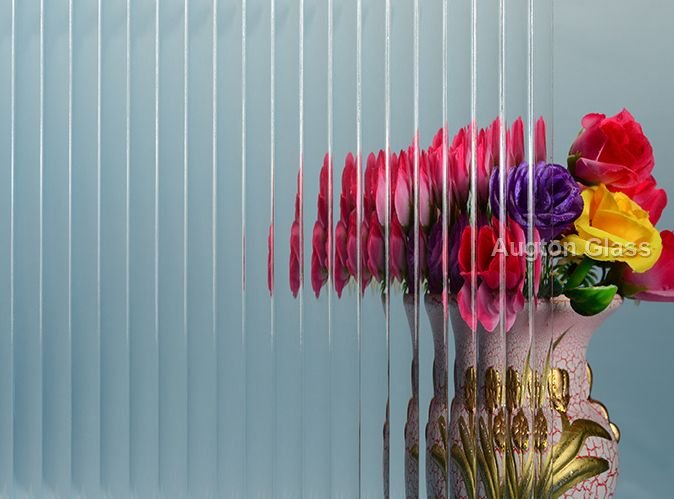

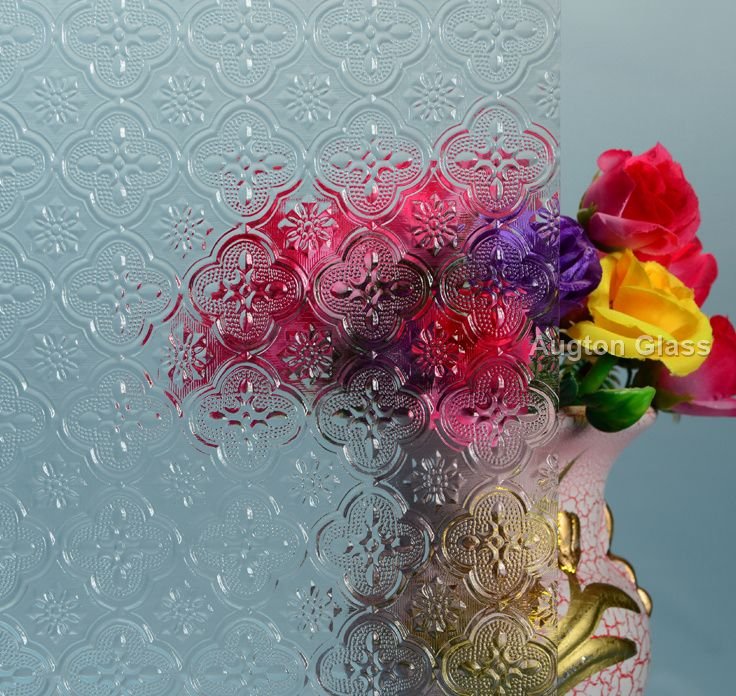

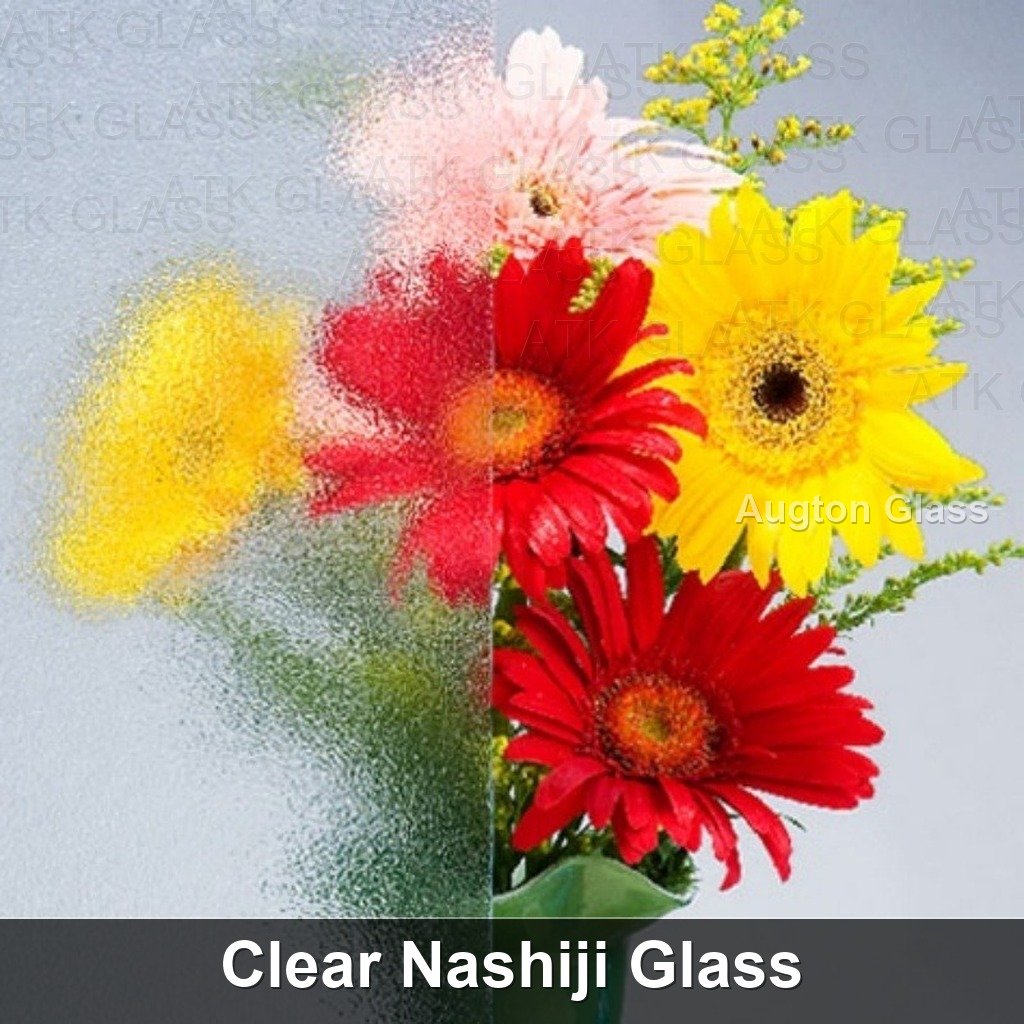

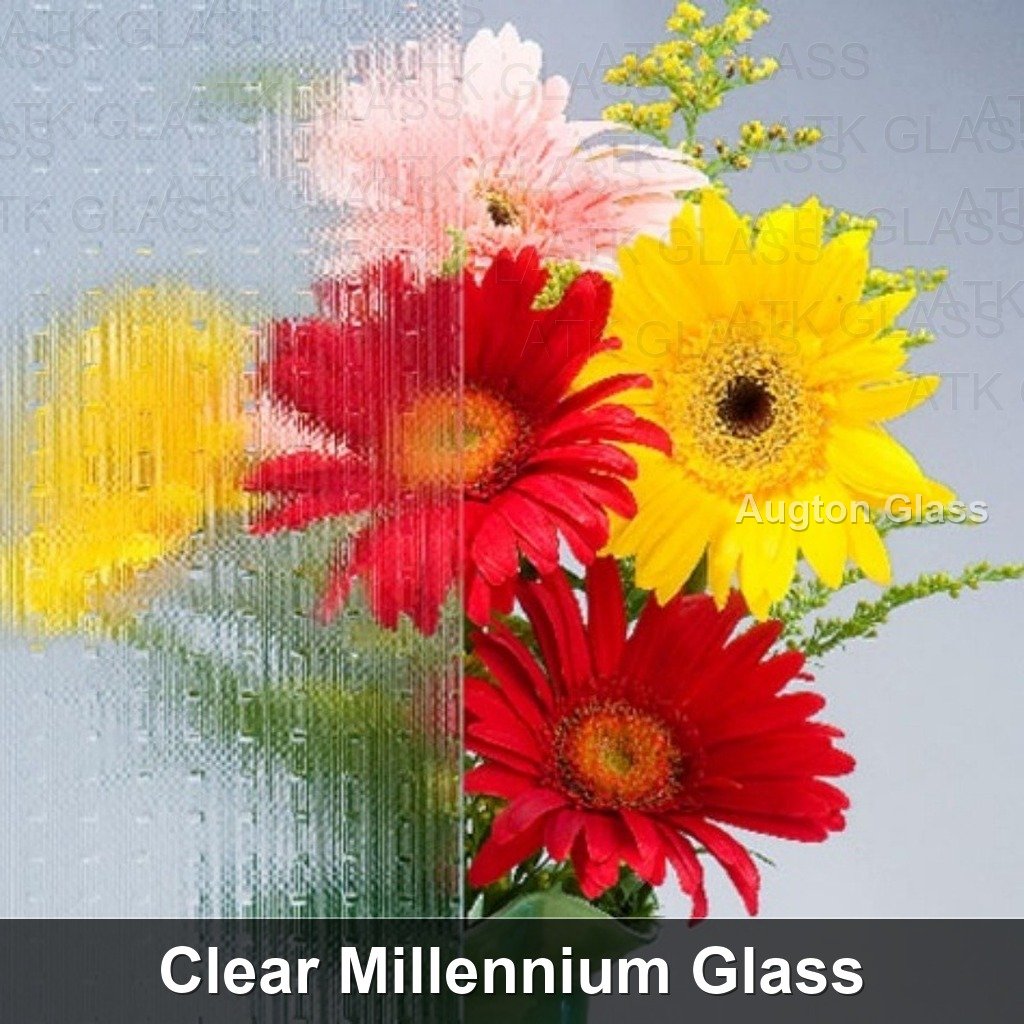

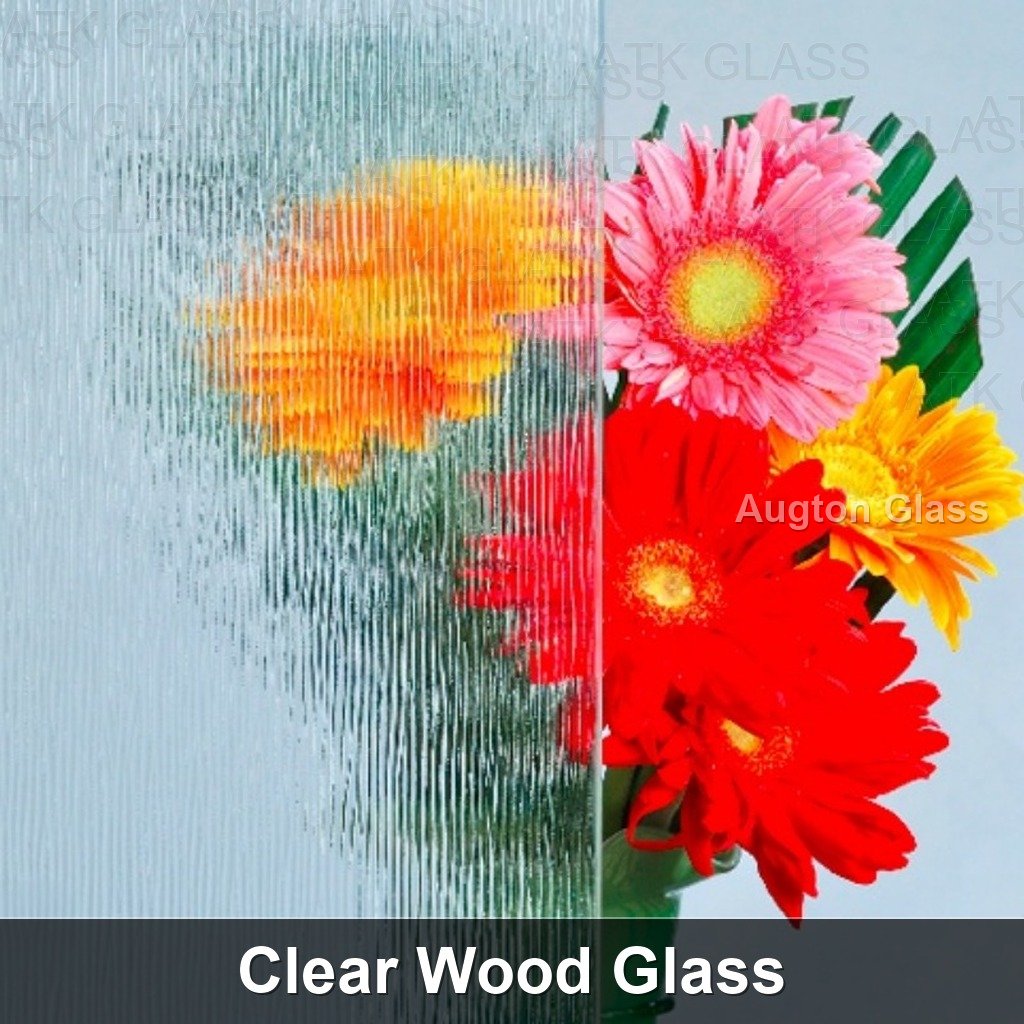

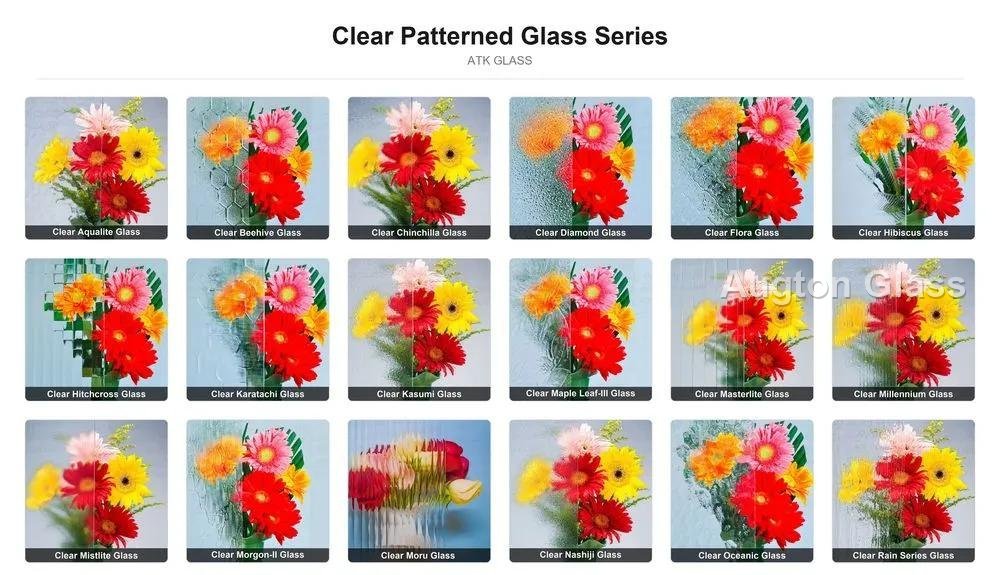

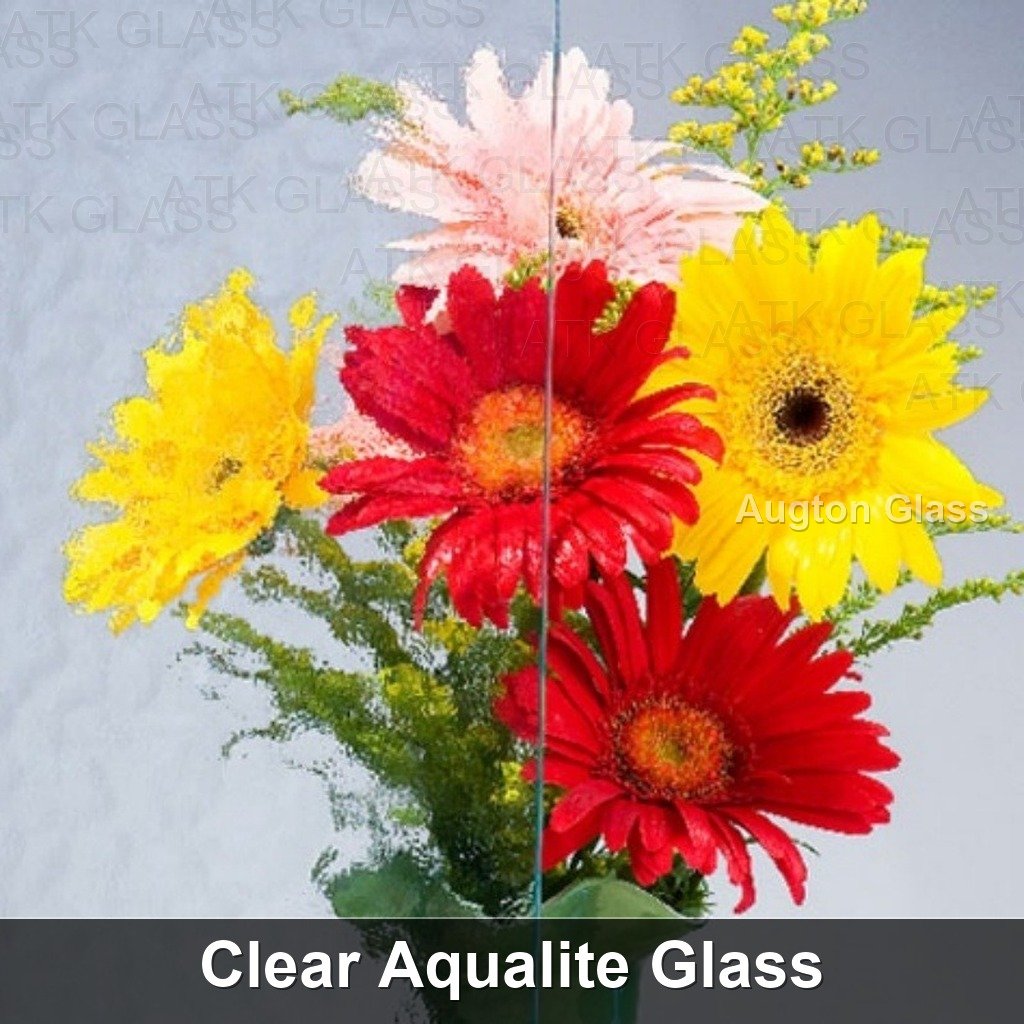

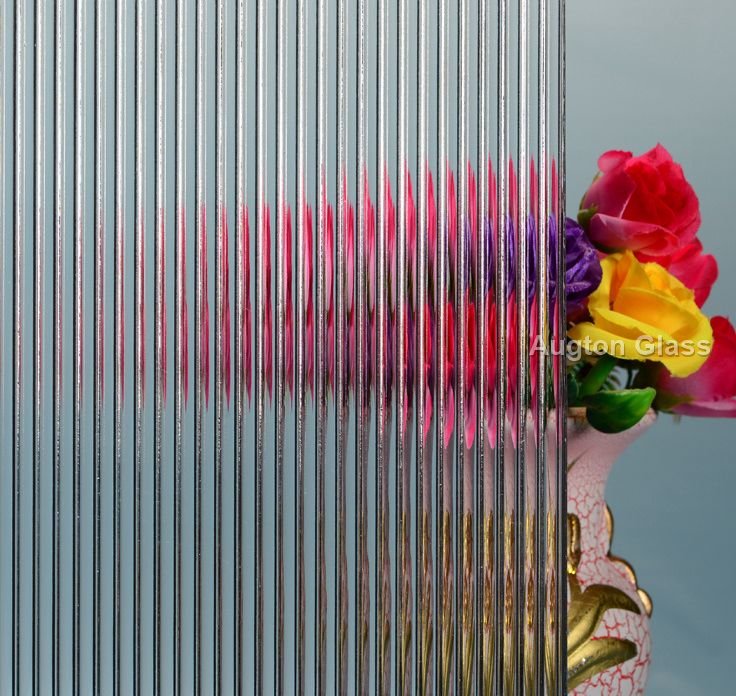

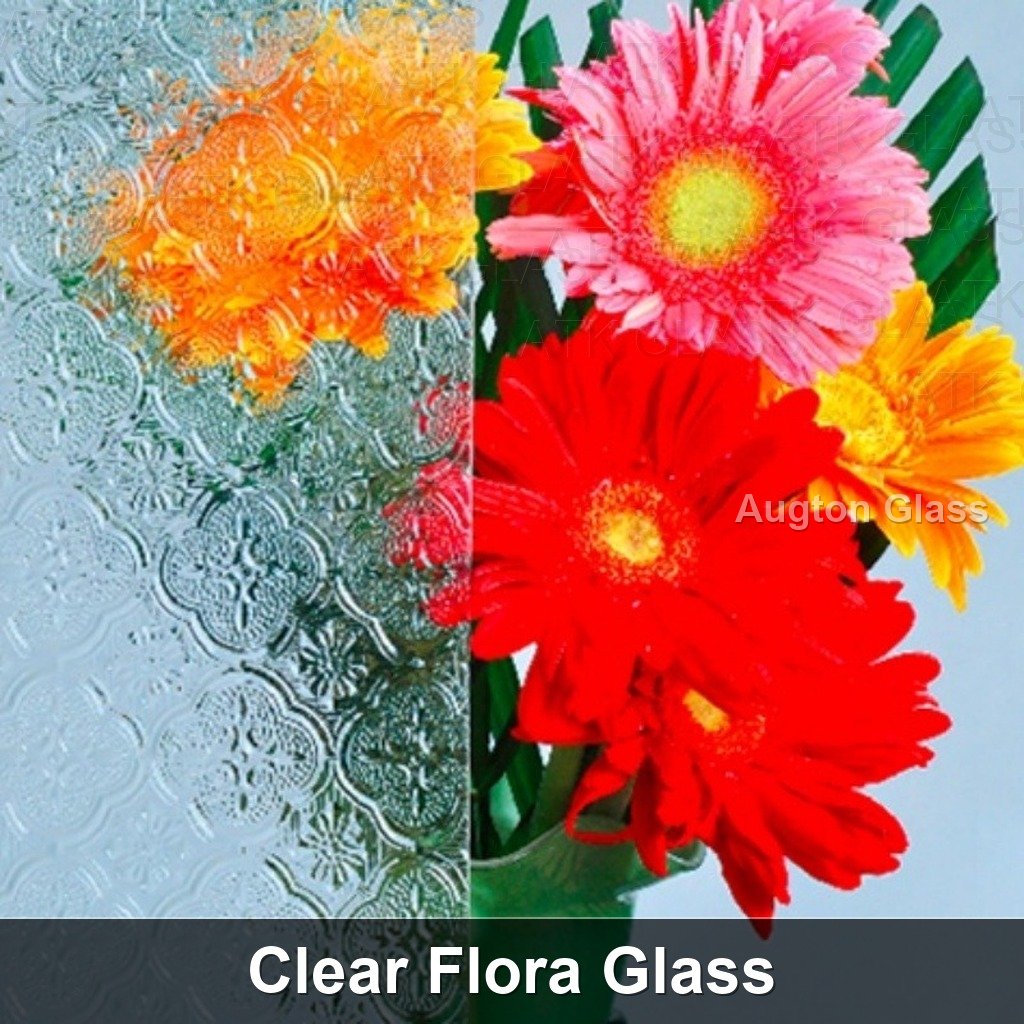

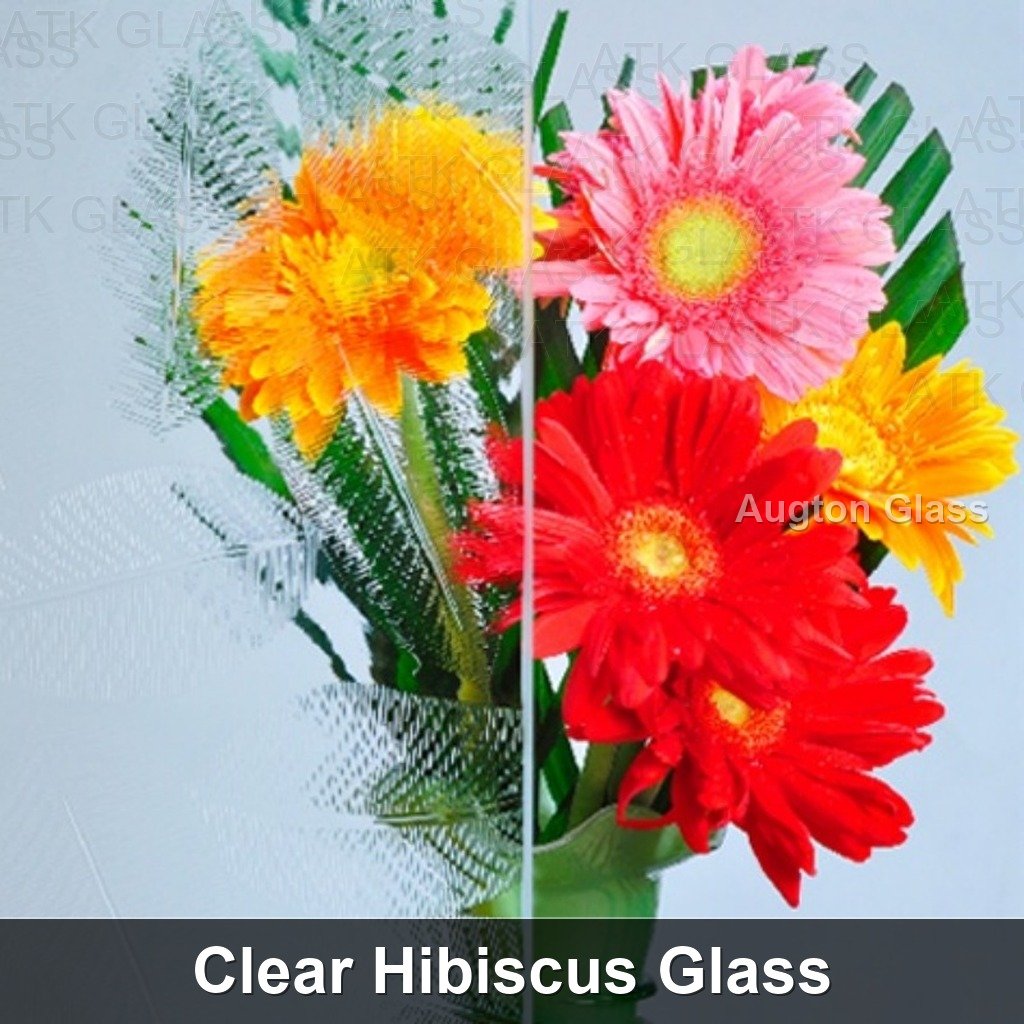

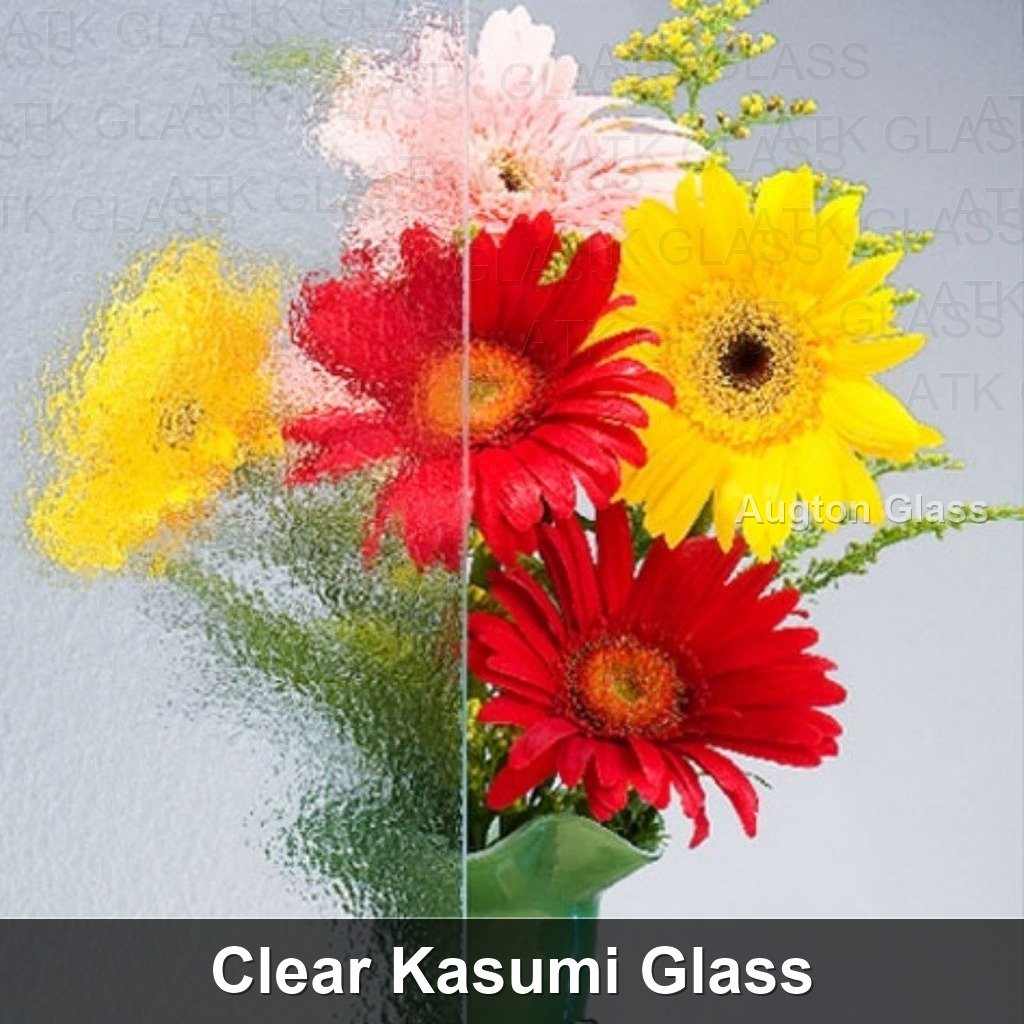

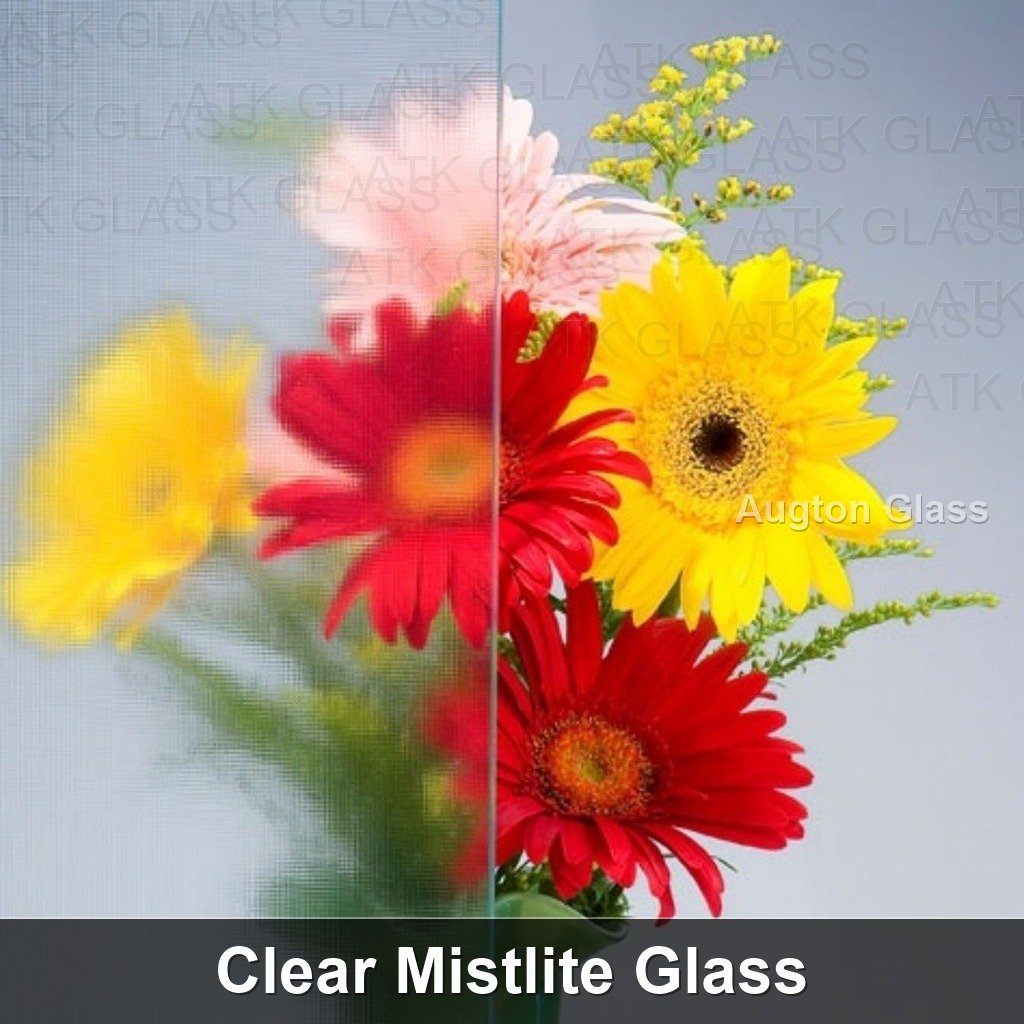

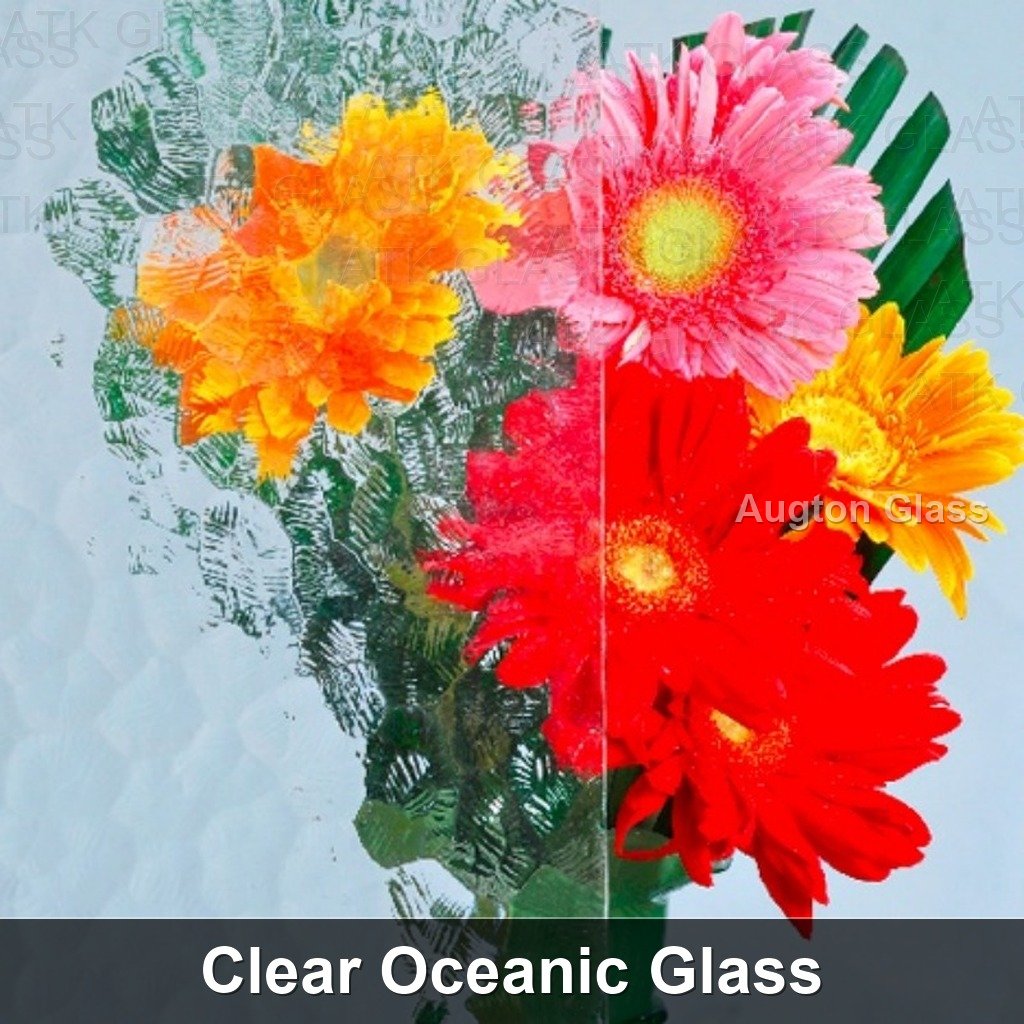

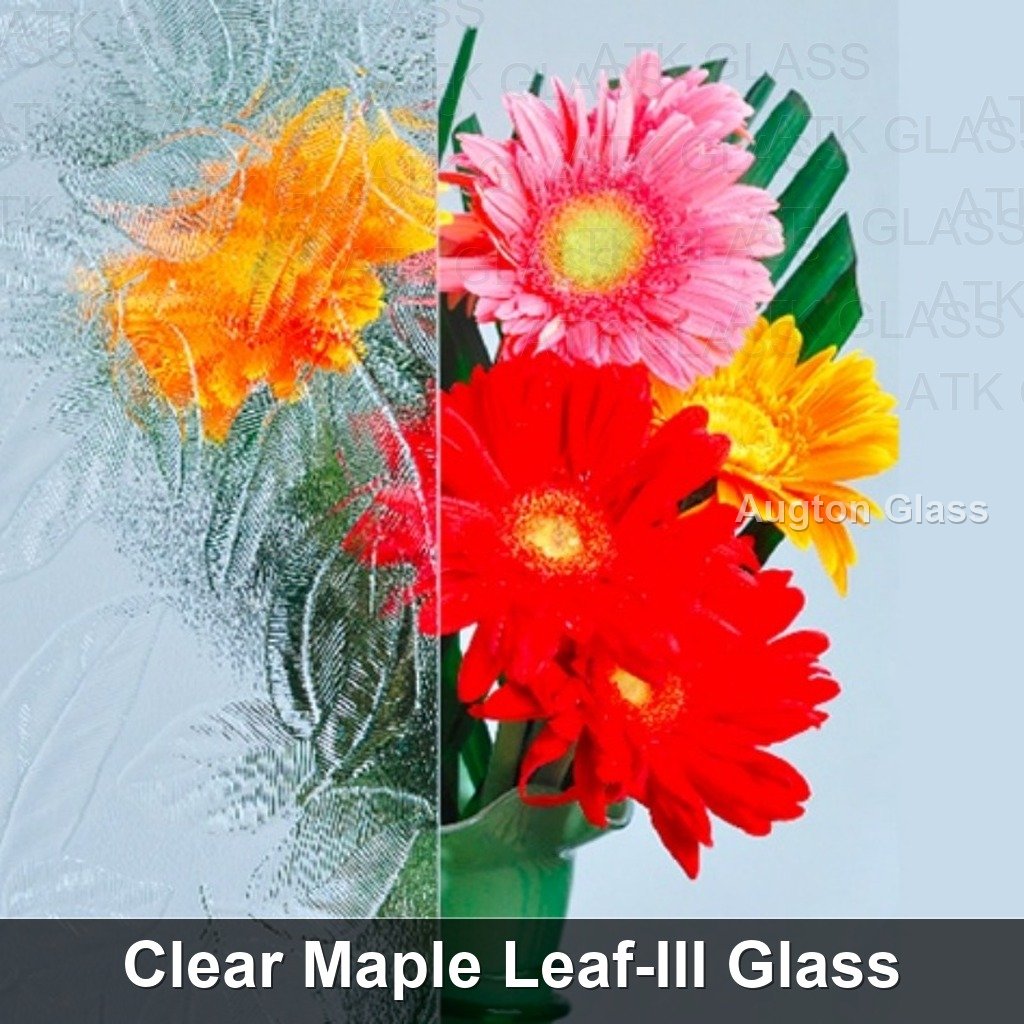

- More than 20 pattern options, including mistlite, flora, nashiiji and moru designs
- First-grade quality standard with strict control of bubbles, inclusions, scratches and lines

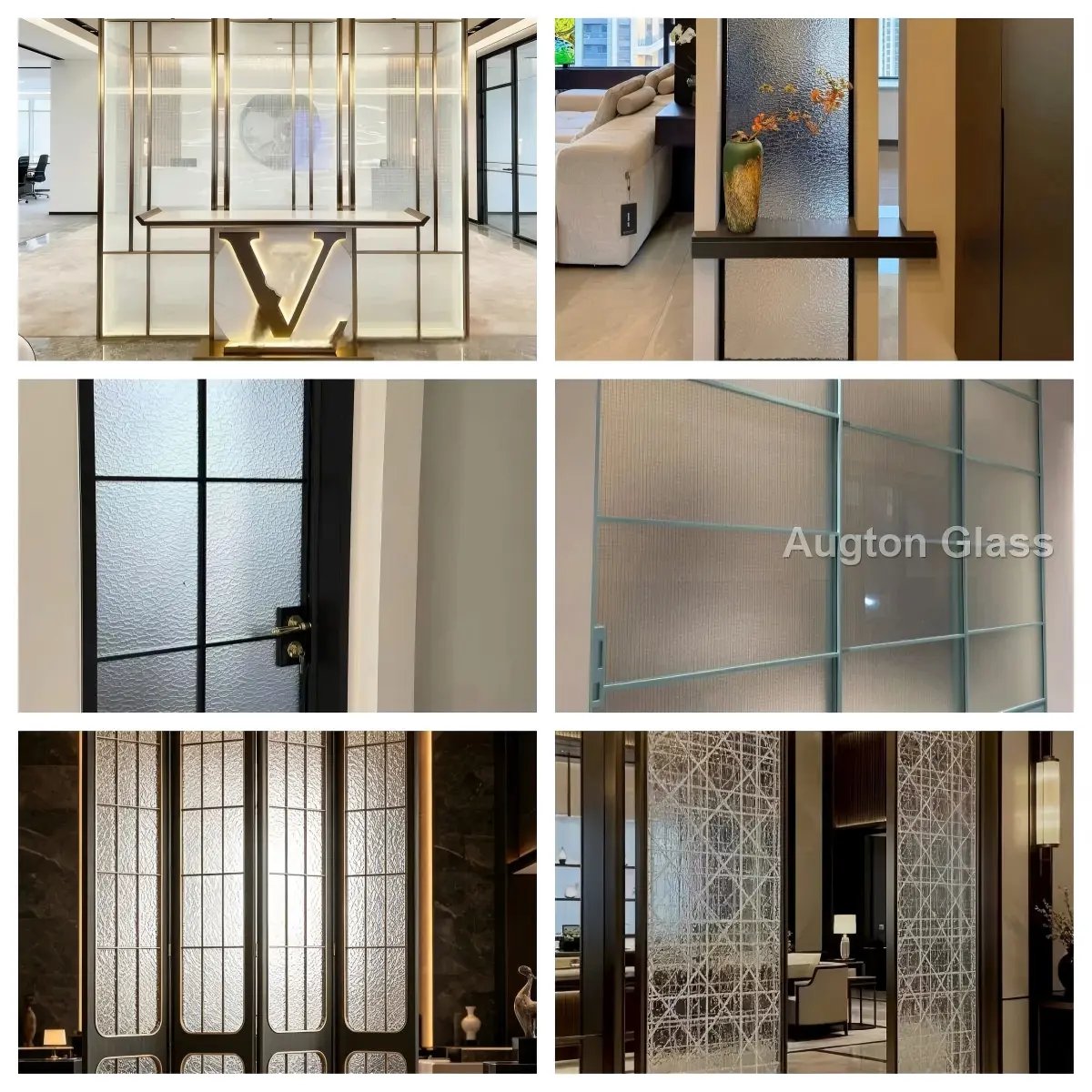

Applications
Privacy Glazing
- Bathroom doors & windows
- Toilet partitions
- Office partitions
- Furniture doors & cabinets
Decoration
- Interior decoration
- Lighting fixtures
- Lampshades & lamps
- Craft articles
Deep Processing Base
- Tempered pattern glass
- Laminated pattern glass
- Screen printed pattern glass
- Insulated pattern glass units
Optical Performance Parameters
First-grade quality standard per GB/T 18915.2: pattern unclearness barely visible; bubbles ≤5mm limited to 6/m²; inclusions ≤3mm limited to 1/m²; scratches L≤60mm W<0.5mm limited to 3/m²; no visible cracks. Bubbles under 2mm cannot exceed 8 within any Ø100mm circle.
Frequently Asked Questions
What thicknesses and sizes are available for Clear Patterned Glass?
Clear Patterned Glass is available in 2.2mm – 12mm. Jumbo sizes up to 3.66m x 12m are possible, and custom cutting to your drawings is supported.
Do you offer custom processing?
Yes. Accept customized size & pattern requirements - just send us your drawings, sizes or special requirements.
What certifications do your products hold?
Our pattern glass has passed multiple international authoritative tests and obtained complete conformity certificates, including CE, ISO 9001 and RoHS by SGS. All products comply with GB/T 18915.2 and EN 572, eligible for export to Europe, North America, Australia, Southeast Asia, the Middle East and other regions.
How is the glass packed for export shipping?
Pattern glass sheets are separated by anti-scratch paper interlayers, then packed into ISPM15 heat-treated solid wooden crates with rainproof plastic wrapping and reinforced steel strapping. Pattern-to-pattern interleaving protects the embossed surface during long-distance transportation.
How can I get a quote?
Email us at sales@augtonglass.com with your sizes, thickness and quantity - our sales team replies within 24 hours.
Production Line & Export Packaging
Advanced Automatic Production Workshop
Our pattern glass is produced on full-set automated rolled glass lines with precision engraved rollers. Online defect inspection systems monitor pattern clarity and thickness consistency, while strict first-grade quality control keeps bubbles, inclusions and scratches within standard limits sheet after sheet.
Standard Export Wooden Crate Packaging
Pattern glass sheets are separated by anti-scratch paper interlayers, then packed into ISPM15 heat-treated solid wooden crates with rainproof plastic wrapping and reinforced steel strapping. Pattern-to-pattern interleaving protects the embossed surface during long-distance transportation.
Certification
Our pattern glass has passed multiple international authoritative tests and obtained complete conformity certificates, including CE, ISO 9001 and RoHS by SGS. All products comply with GB/T 18915.2 and EN 572, eligible for export to Europe, North America, Australia, Southeast Asia, the Middle East and other regions.
We manufacture to the applicable standards of your destination market and can provide test reports, certificates of conformity and Declarations of Performance.
Europe (CE)
CE-marked glass with Declaration of Performance for EU construction products.
Americas
SGCC and IGCC certified safety and insulated glass units.
Australia & New Zealand
Safety glazing certified through SAI Global.
Middle East
SASO / GSO conformity support for Gulf and Levant projects.
