Product Description

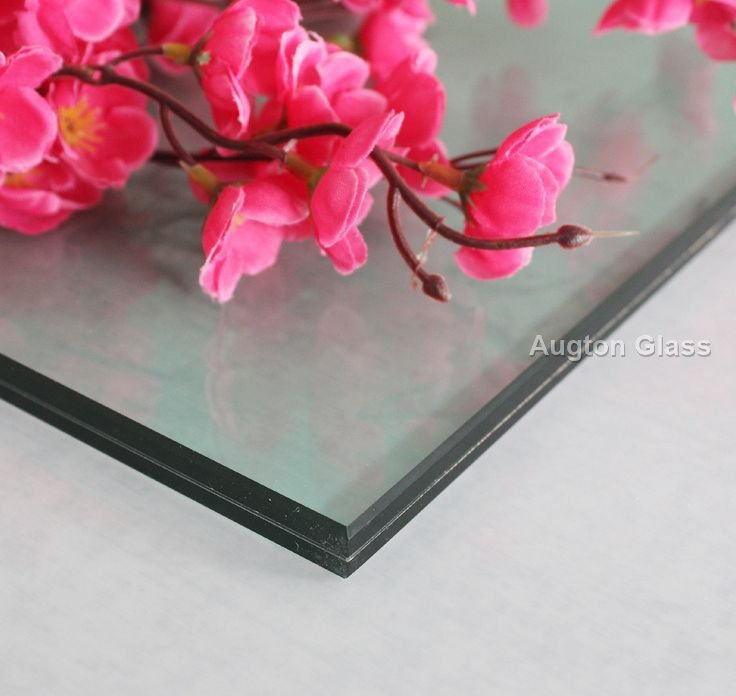

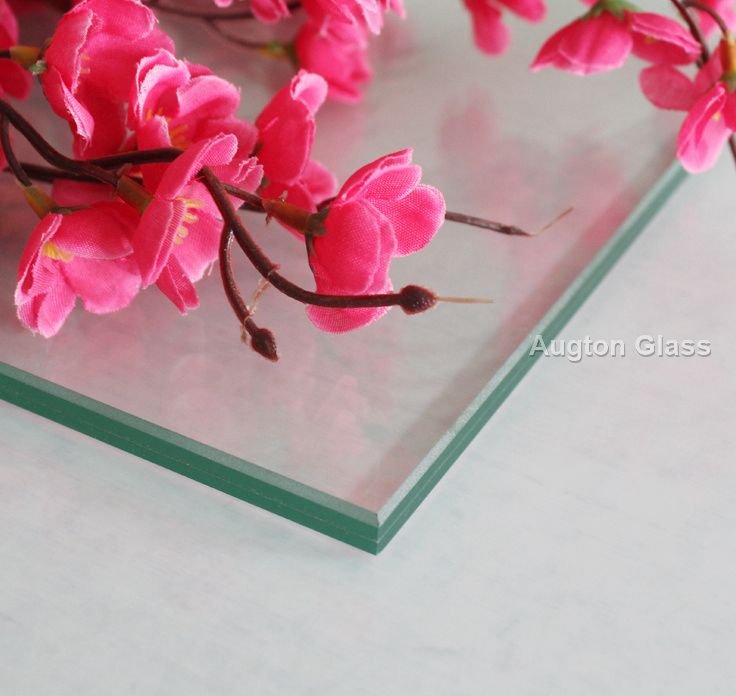

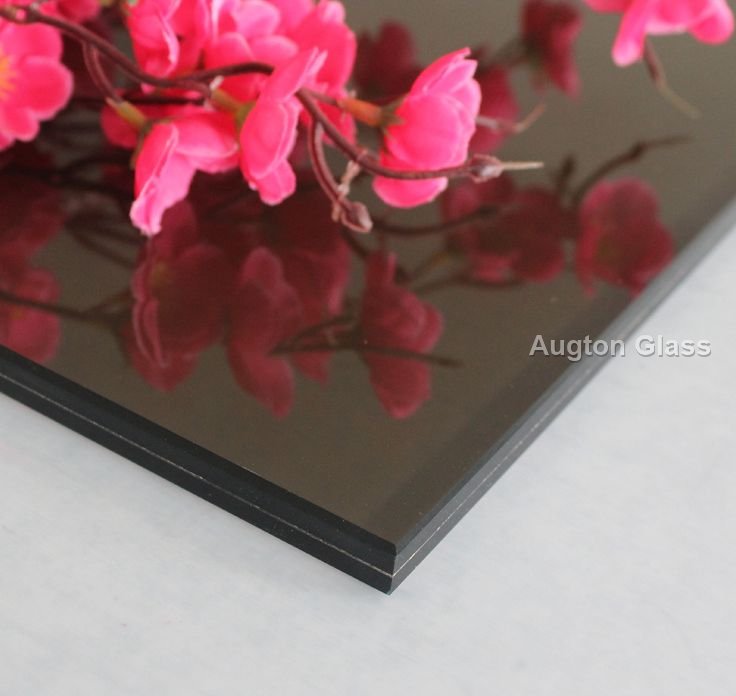

As a safety glass, laminated glass is created by placing one or more PVB interlayers between two or more sheets of glass and bonding them under heat and pressure. Breakage does not scatter glass: fragments stay attached to the interlayer rather than falling.

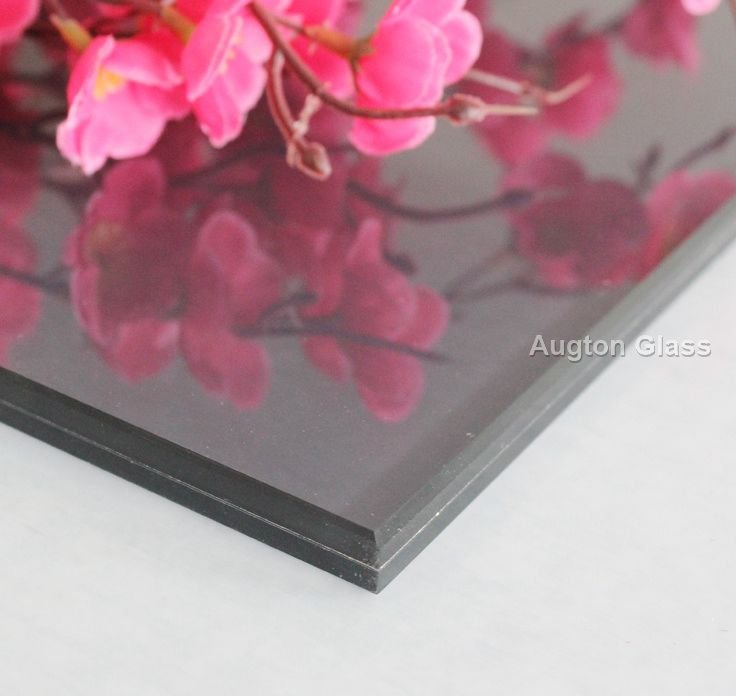

Injury, noise, vandalism and burglary are all guarded against, and most UV rays are blocked. PVB thickness is supplied in multiples of 0.38mm, glass thicknesses range from 2mm to 19mm, colors include clear, milk white, green, blue, bronze, grey and others, and jumbo sizes reach 3660x18000mm.
AUGTON GLASS provides laminated glass straight from our factory. As a Chinese glass manufacturer, we pair lamination with tempering, heat soaking, coating and IGU assembly so buyers can source all deep processing under one roof.
Key Features
- Injury protection: broken fragments stay bonded to the PVB interlayer, a requirement often made mandatory for public buildings, schools and creches
- Noise protection: acoustic PVB interlayers deliver high sound insulation with no loss of safety
- Vandalism and burglary protection: a strong deterrent for shop windows, entrance doors and showcases
- Stops more than 99% of UV rays yet lets visible light through, shielding interiors from fading

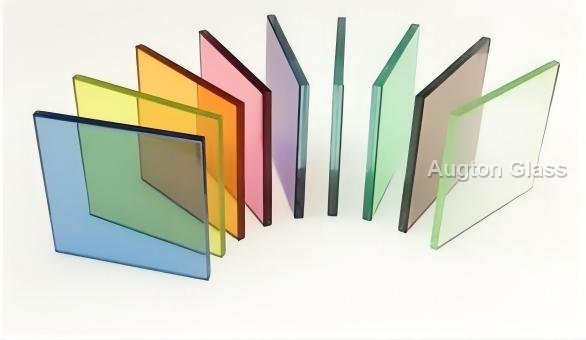

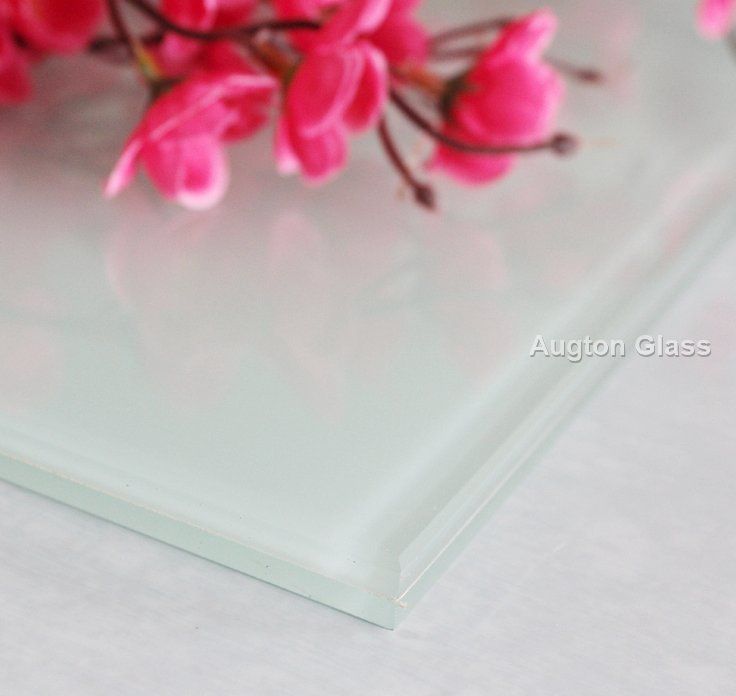

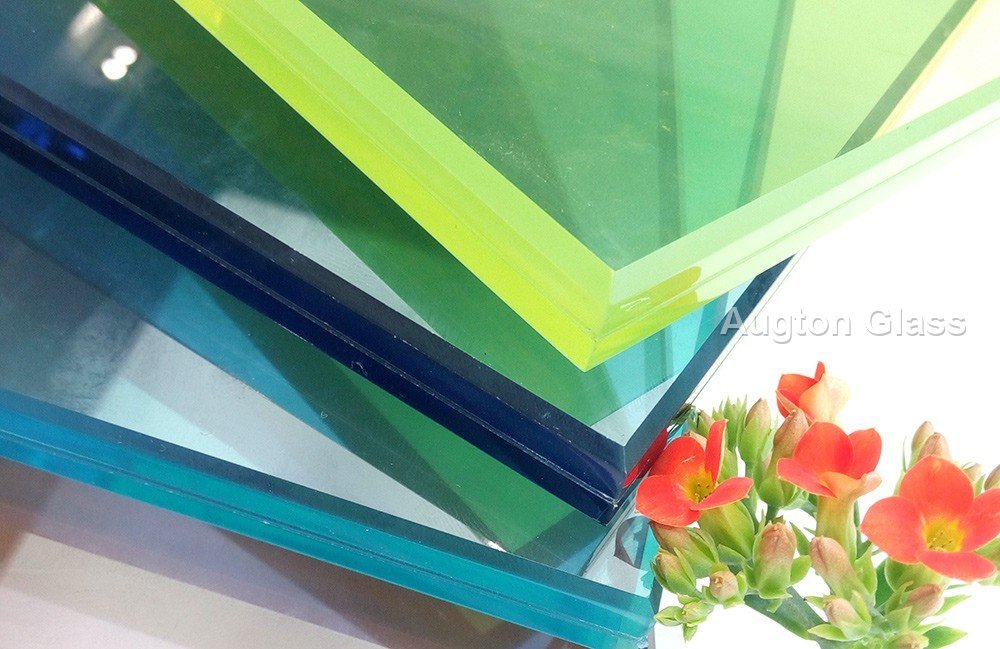

- Wide color choice, including milk white and colored PVB interlayers
- Further processing available: edge working, sandblasting or acid etching, tempering or heat soaking, IGU assembly, and solar control or Low-E coating
Applications
Architecture
- Windows & facades
- Curtain walls
- Overhead glazing
- Balustrades
- Skylights
Safety & Security
- Shop windows & doors
- Entrance doors
- Showcases
- Bank counters
- Hurricane areas
Noise Sensitive
- Interpreting booths
- Airport-area residences
- Hotel windows
- City center offices
Optical Performance Parameters
PVB interlayer thickness available in multiples of 0.38mm (0.38 / 0.76 / 1.14 / 1.52mm). Laminated make-ups can combine annealed, heat strengthened or tempered glass with clear, colored or acoustic PVB. Maximum jumbo size 3660x18000mm.
Frequently Asked Questions
What thicknesses and sizes are available for Laminated Glass?
Laminated Glass is available in 2mm – 19mm. Jumbo sizes up to 3.66m x 12m are possible, and custom cutting to your drawings is supported.
Do you offer custom processing?
Yes. Accept customized make-ups, PVB colors & edgework requirements - just send us your drawings, sizes or special requirements.
What certifications do your products hold?
Our laminated glass has passed multiple international authoritative tests and obtained complete conformity certificates, including CE, ISO 9001 and RoHS by SGS. All products comply with GB 15763.3, BS EN 14449 and ANSI Z97.1, eligible for export to Europe, North America, Australia, Southeast Asia, the Middle East and other regions.
How is the glass packed for export shipping?
Laminated glass sheets are separated by anti-scratch film and soft interlayers, then packed into ISPM15 heat-treated solid wooden crates with rainproof plastic wrapping and reinforced steel strapping. Custom loading plans suit jumbo sizes.
How can I get a quote?
Email us at sales@augtonglass.com with your sizes, thickness and quantity - our sales team replies within 24 hours.
Production Line & Export Packaging
Advanced Automatic Production Workshop
Our laminated glass is produced on full-set automated pre-lamination lines and autoclaves. Glass washing, PVB laying and pre-pressing are done in a clean room environment, and the autoclave cycle is digitally controlled to guarantee bubble-free, optically clear lamination.

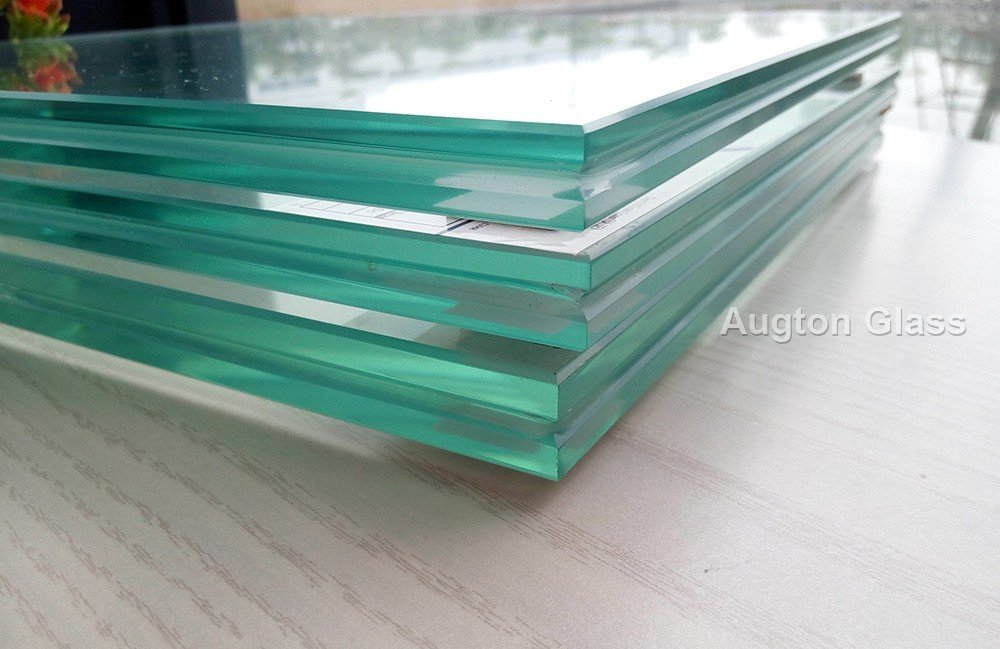

Standard Export Wooden Crate Packaging
Laminated glass sheets are separated by anti-scratch film and soft interlayers, then packed into ISPM15 heat-treated solid wooden crates with rainproof plastic wrapping and reinforced steel strapping. Custom loading plans suit jumbo sizes.
Certification
Our laminated glass has passed multiple international authoritative tests and obtained complete conformity certificates, including CE, ISO 9001 and RoHS by SGS. All products comply with GB 15763.3, BS EN 14449 and ANSI Z97.1, eligible for export to Europe, North America, Australia, Southeast Asia, the Middle East and other regions.
We manufacture to the applicable standards of your destination market and can provide test reports, certificates of conformity and Declarations of Performance.
Europe (CE)
CE-marked glass with Declaration of Performance for EU construction products.
Americas
SGCC and IGCC certified safety and insulated glass units.
Australia & New Zealand
Safety glazing certified through SAI Global.
Middle East
SASO / GSO conformity support for Gulf and Levant projects.
