Smart Glass: Electrochromic, Dichroic and AR Glass Explained
Glass that tints on command, shifts color with your viewing angle, or disappears reflections entirely — three technologies, three very different jobs.
- PDLC switchable glass frosts in under a second for privacy; electrochromic tints gradually to manage heat and glare — choose by job, not by buzzword.
- All holes, notches and edgework happen before lamination — final-size drawings are what keep a switchable order on schedule.
- Quality PDLC runs at 48-65 V AC and 3-7 W/m², with haze below 8% when clear and above 90% when frosted.
- AR glass on a low-iron substrate is the display-case standard; dichroic glass brings fade-proof, angle-dependent color.
- Every panel leaves the line tempered or laminated to safety code — see our glass partition integration notes before drawings freeze.
Electrochromic (Switchable) Glass: Privacy on Demand
The most requested "smart glass" family comes in two working principles. PDLC (polymer-dispersed liquid crystal) laminate switches from frosted to clear in under a second with a low-voltage supply — instant privacy for meeting rooms, clinics and shower walls, powered by the same philosophy behind smart partitions. True electrochromic coatings tint gradually (typically 1-10 minutes) through several darkness levels, managing solar heat as well as privacy — the choice for facades and skylights where the goal is energy control, not instant frost.
Response time is the honest divider between the two. PDLC completes its switch in a fraction of a second, while electrochromic glazing passes through intermediate tint levels over several minutes — deliberately slow, because the gradual transition is what lets occupants tune daylight instead of snapping between two states. Power profiles differ accordingly: PDLC draws a few watts per square meter continuously in the clear state, while electrochromic consumes current only while moving between tints, which keeps wiring and controls modest even across a full facade.
Inside a PDLC Panel: How It Is Manufactured
A switchable laminate is built like a standard laminated panel with two extra disciplines — absolute cleanliness and edge-of-panel wiring. Every panel follows the same production sequence:
- Cut both glass lites to final size and complete all edge finishing, holes and notches first — nothing can be reworked after lamination.
- Wash and inspect in a controlled environment; a single dust particle trapped against the PDLC film shows permanently as a dark speck.
- Laminate the PDLC film between PVB or EVA interlayers in the autoclave, typically at 130-140 °C and around 12 bar, fusing the sandwich into a single panel.
- Attach the bus bars and flexible leads along the designated edge, then pot the connection for strain relief.
- Test every panel: switching time, haze in clear and frosted states, and insulation resistance between leads and any frame contact.
- Pack in individual crates with the wired edge protected — the leads are the only fragile part of an otherwise ordinary glass panel.

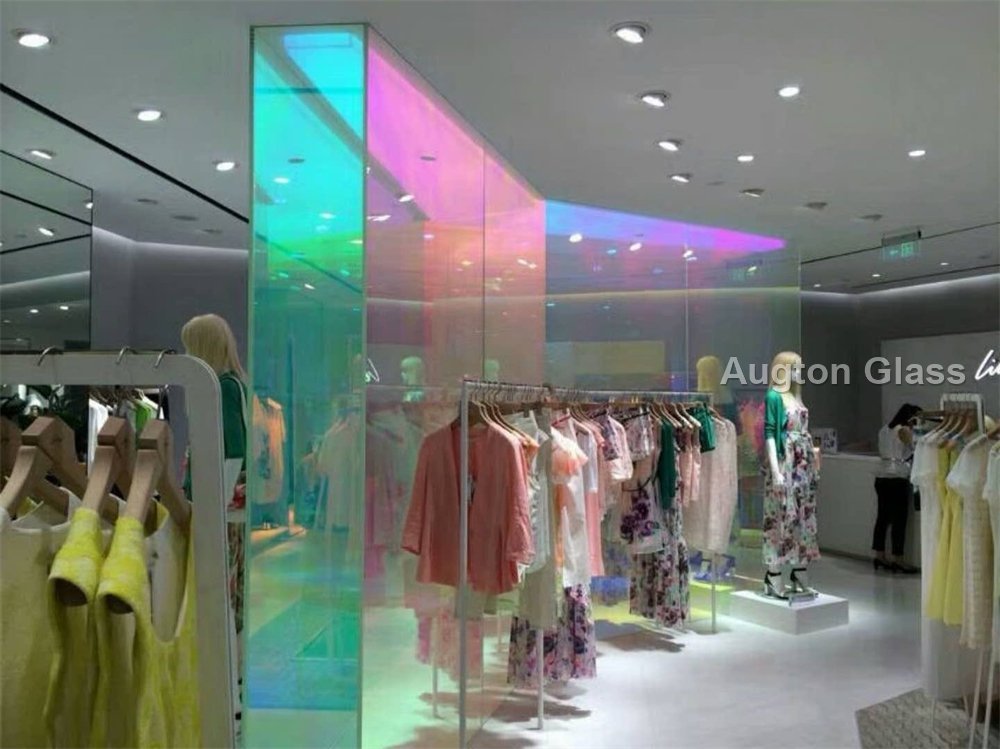

Dichroic Glass: Color Without Pigment
Dichroic glass carries an engineered thin-film stack that reflects one color while transmitting another — the pane shifts hue as the viewer or the light source moves. The effect is pure optics, no dyes to fade, which is why museums and flagship retail use it for installations that must survive decades of light exposure. It laminates or triple-glazes like ordinary glass, so the magic travels in standard build-ups.
Anti-Reflective Glass: Making Glass Invisible
AR glass attacks the opposite problem: ordinary glass reflects 8% of light per surface — over 15% through both faces of a pane. AR coatings cut surface reflection below 1%, which is transformative for museum vitrines, showcase displays, camera housings, control-room monitors and storefront windows photographed from across the street. Transmission climbs to ~98%, and with a low-iron substrate the glass genuinely disappears.
Specifying AR is mostly about where the coating goes. Single-side AR suits a display case where visitors look through one face; double-side AR serves photography, control-room glazing and signage covers where both surfaces bounce light. Coatings also come in different hues — a neutral residual reflection for galleries, or a slight blue-violet cast that reads cleaner outdoors. And because the thin film cannot survive a tempering furnace, AR glass is always tempered first and coated second, which is worth remembering when a project mixes stock AR sheet with custom tempered panels.
Electrical and Performance Specifications
Numbers to design around — the data our standard PDLC and electrochromic builds ship with:
| Parameter | Typical value | Buyer note |
|---|---|---|
| Operating voltage | 48-65 V AC (PDLC) | Transformer sized per panel or per zone; keep wire runs short |
| Power draw | 3-7 W/m² | Only while powered clear; PDLC frosted state is near zero |
| Switching time | <1 s (PDLC); 1-10 min per tint step (electrochromic) | Electrochromic draws current only while changing tint |
| Haze | <8% clear, >90% frosted | The spec that separates quality film from cheap film |
| UV blocking | >98% (PDLC) | Protects interiors behind privacy glass |
| Max panel size | ~1830 × 3600 mm | Film sheet size limits the panel; confirm before drawing elevations |
| Operating temperature | -10 to +60 °C | For freezer, sauna or boiler-room duty, tell us before ordering |
Choosing by Goal
| Goal | Technology | Notes |
|---|---|---|
| Instant privacy for meeting rooms | PDLC switchable | Frosted ↔ clear in <1 s; low-voltage |
| Solar heat management with privacy | Electrochromic coating | Gradual tint; pairs with low-E strategies |
| Color-shifting feature installation | Dichroic | Angle-dependent color; film-free durability |
| Display cases / vitrines | AR glass | Sub-1% reflection; combine with low-iron |
| Control rooms / signage covers | AR glass | Kills screen reflections, boosts contrast |
Where Each Technology Gets Specified
Boardrooms, clinics and examination rooms
PDLC switchable is the default — privacy in a second during meetings, transparency the rest of the day. Integration with partition framing and door pivots is planned at drawing stage, which is what keeps installation a one-day job.
Facades, skylights and daylight bathrooms
Electrochromic earns its cost where solar heat and glare drift through the day. Tint levels are tuned per orientation much like a low-E coating strategy, but with occupant control on top — the difference between a static facade and a responsive one.
Museums, vitrines and display cases
AR glass over a low-iron substrate removes both reflection and green tint — the standard pairing for galleries photographing through glass, and worth specifying for any showcase that faces mixed lighting.
Retail and hospitality features
Dichroic glass on backlit walls or suspended fins delivers color that changes as visitors move — no lighting color changes, no maintenance cycle, no fading to schedule around.
What Drives the Price of Smart Glass
- Panel size beats area: a 3 m panel can cost more than three 1 m panels because PDLC film sheets cut with waste around large formats — optimizing the cutting plan is the first cost conversation.
- Wiring complexity: transformer count, lead lengths and whether switches, BMS or app control drives the controls package.
- Coating grade and coverage: single- vs double-side AR, and whether dichroic runs full-pane or as accent strips within ordinary glass.
- Quantity: a single mock-up panel carries setup costs a series order amortizes; we quote both tiers so the decision is informed.
- Safety build-up: tempered, laminated, or insulated assemblies each add process steps on top of the smart layer.
The cheapest smart-glass project is the one specified correctly the first time — reworking wired laminates is the most expensive mistake in this product line.
Practical Notes From Fabrication
Two questions settle most switchable orders: where does the power enter the panel, and what happens when the panel is off. Answer both during design and fabrication stays simple.
- PDLC laminates are ordered to final size and edge-finished like any laminate — plan wiring channels and transformer placement during the partition design, not after.
- Electrochromic glazing needs controls integration (switches, BMS, or app) — we ship with wiring specs your electrician can follow.
- Dichroic and AR coatings are directional — state viewing side at order time.
- All three process into tempered or laminated safety builds; AR-coated glass tempers before coating to protect the thin film.
Order switchable panels at confirmed final size — holes, notches and cut-outs must all be done before lamination, and wired panels cannot be modified afterwards. Lock door hardware and partition drawings before releasing production.
Frequently Asked Questions
Does switchable glass need power all the time?
PDLC is clear when powered and frosts when off — a power cut makes rooms frosted, which some clients prefer. Electrochromic holds its state without continuous power. Either way, consumption is low (watts per m²).
How long do switchable laminates last?
Quality PDLC laminates are rated for 10+ years and hundreds of thousands of switching cycles, sealed inside standard laminated glass construction like any laminated glass build.
Is dichroic glass just colored film?
No — the color comes from engineered thin-film interference layers applied to the glass itself. There is no dye to fade; the color is a physical optics effect that lasts as long as the coating.
Can AR glass be used outdoors?
Yes, with outdoor-grade coatings — storefront windows and photo-facing facades are common uses. Expect slight blue-violet residual reflection rather than full invisibility.
Can these technologies combine in one panel?
Partially — AR coating with dichroic films or low-E combinations are engineered per project. Switchable laminates plus AR on the outer face also work. Tell us the priority order and we confirm feasibility.
What is the MOQ and lead time for switchable glass?
Single-panel prototypes are accepted — worth doing as a mock-up before committing a whole floor. Standard PDLC builds ship in about 2-3 weeks after drawing approval; electrochromic with controls integration takes longer because wiring diagrams and tint levels are confirmed per project. Transformers and leads are supplied matched to the panel count.
How do I clean and maintain switchable glass?
Clean like ordinary laminated glass — soft cloth, mild detergent, no abrasives, and keep ammonia-heavy chemicals off the wired edge. There is no film to peel and nothing to recalibrate; the laminate is sealed for life like any laminated glass panel. An occasional check of transformer connections is the entire maintenance program.
