CNC Cutting & Shaping
Automatic cutting lines and CNC centres cut jumbo sheets down to any rectangular or shaped outline, with clean and chip-free edges.
- Max. size
- 3300 × 13000 mm
- Thickness
- 0.8 – 25 mm
- Tolerance
- ± 0.2 mm
- Capacity
- 200,000 m² / month
Processing Capabilities
From jumbo float sheets to finished, certified glass - every key process is handled in-house on modern production lines.
Edge Grinding & Polishing
Flat, pencil, bevelled, OG and polished edges. Straight-line and double-edger machines cover thicknesses from 2 mm to 25 mm.
- Options
- Flat / Pencil / Bevel / OG / Polished
- Thickness
- 2 – 25 mm
- Max. size
- 6000 mm length
- Tolerance
- ± 0.3 mm
Drilling, Notching & Cut-outs
CNC drills and waterjet cutters produce holes, notches, hinge recesses and socket cut-outs strictly to drawing, with countersinks and polished hole walls on request.
- Hole diameter
- Ø 4 – 200 mm
- Tolerance
- ± 0.5 mm
- Options
- Countersink / Notch / Shaped cut-out
- Max. size
- 3300 × 8000 mm

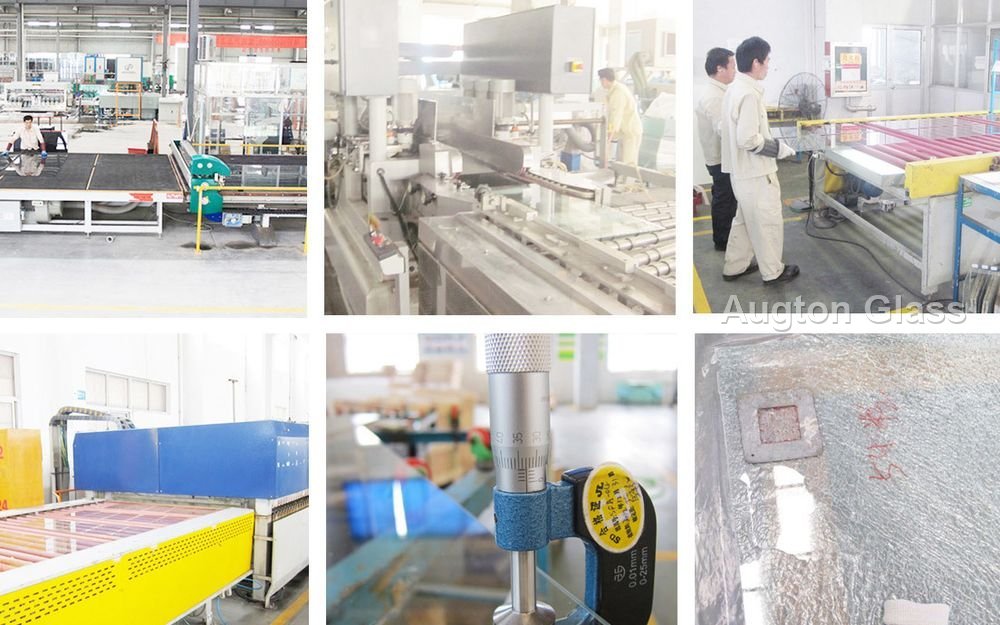

Tempering (Toughening)
Horizontal and continuous furnaces temper glass to 4–5 times the strength of annealed glass, so it breaks into small blunt fragments instead of sharp shards.
- Thickness
- 3 – 19 mm
- Max. size
- 3300 × 12000 mm
- Standard
- EN 12150 / ANSI Z97.1
- Capacity
- 150,000 m² / month
Heat-Strengthening & Heat Soak Test
Heat-strengthened glass roughly doubles annealed strength while keeping a larger, safer break pattern. Heat soak testing removes the NiS inclusion risk in tempered glass.
- Thickness
- 3 – 12 mm
- Max. size
- 3300 × 12000 mm
- Standard
- EN 1863 / EN 14179 (HST)
- Options
- Heat soak test certificate available

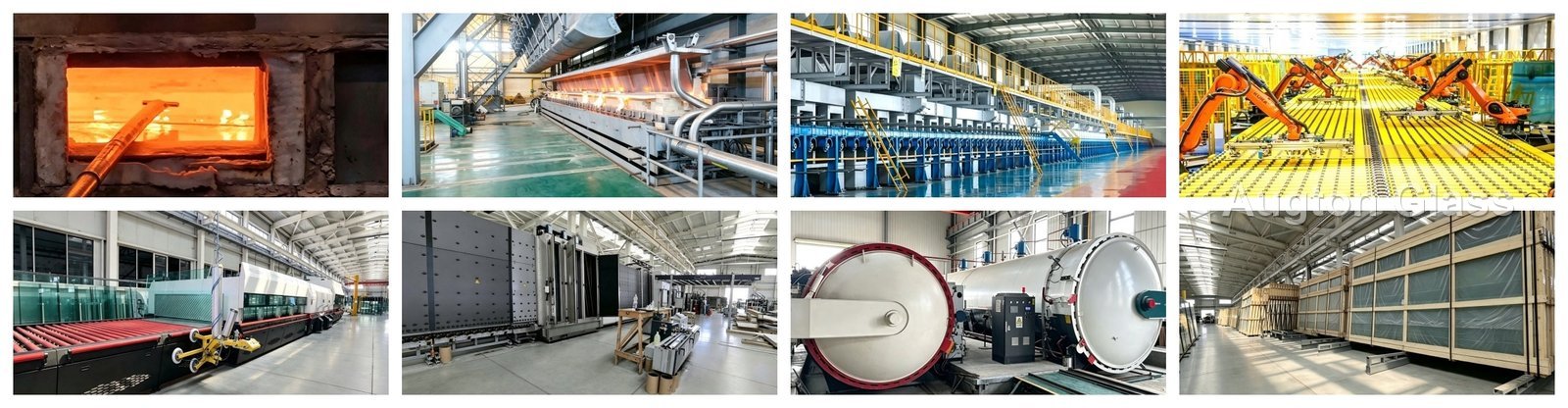

Laminating (PVB / SGP / EVA)
Autoclave lines bond two or more plies with PVB, SGP or EVA interlayers for safety glazing, security, acoustic damping and UV blocking.
- Thickness
- 4 – 80 mm (total)
- Interlayer
- 0.38 – 2.28 mm
- Max. size
- 3300 × 13000 mm
- Standard
- EN 14449 / ANSI Z97.1

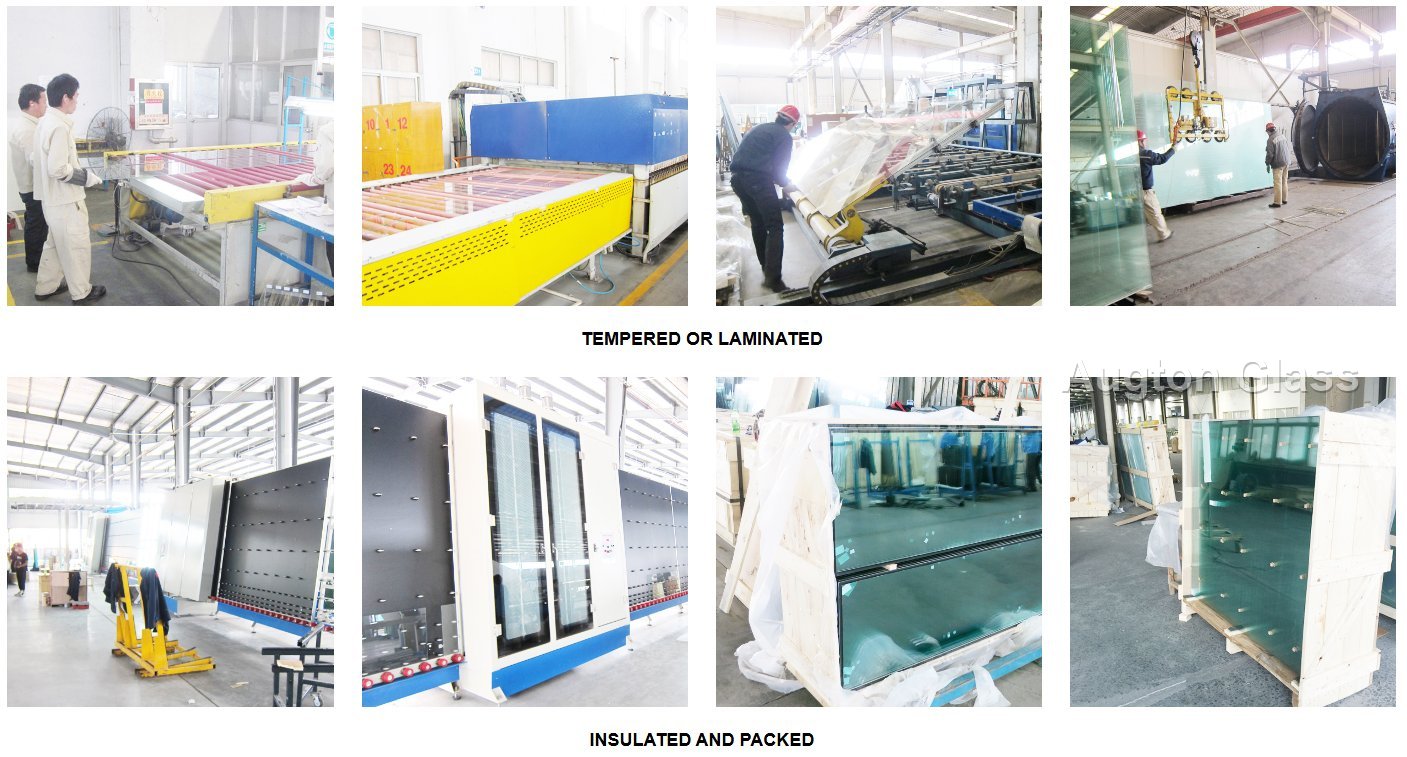

Insulating Glass Units (IGU)
Fully automatic lines build double and triple glazed units with warm-edge spacers, argon filling and dual sealing for long-term U-value performance.
- Structure
- Double / Triple glazing
- Cavity
- 6 – 24 mm
- Max. size
- 2700 × 6000 mm
- Standard
- EN 1279 / CE
Hot Bending & Curving
Electric bending furnaces form single-curvature and complex shapes for facades, balustrades, shower enclosures and furniture, with matching tempering available.
- Radius
- Min. R 300 mm (thickness dependent)
- Thickness
- 3 – 19 mm
- Max. size
- 2440 × 5000 mm
- Options
- Curved tempered / curved laminated
Printing, Sandblasting & Acid Etching
Ceramic frit screen printing, UV digital printing, sandblasting and acid etching deliver privacy gradients, logos, patterns and anti-slip finishes.
- Max. size
- 2440 × 4200 mm
- Ink type
- Ceramic frit / UV-curing ink
- Options
- Sandblast / Acid etch / Custom artwork
- Thickness
- 2 – 19 mm
Mirroring, Low-E & Reflective Coating
In-house silvering lines, copper-free mirror lines and magnetron sputtering coaters produce mirrors, low-emissivity and solar-control glass in bulk volumes.
- Max. size
- 3300 × 8000 mm
- Thickness
- 1.8 – 12 mm
- Options
- Silver / Copper-free / Low-E / Reflective
- Standard
- EN 1036 / CE
