Float Glass Explained: Clear, Tinted, Reflective, Black and Ultra-Thin Sheet From One Line
Nearly every glass product starts as float glass — yet buyers rarely compare float lines directly. This guide explains how the float process sets quality, how the color and coating variants differ, and how to specify thickness from 0.8 to 22 mm.
- Float glass is made by floating a continuous ribbon of molten glass on a bath of molten tin — that is why both faces are perfectly flat and parallel, with no grinding needed.
- Clear float is the universal substrate: it accepts cutting, insulating, acid etching, painting, tempering and coating, which makes it the base for nearly every product in our catalog.
- The thickness ladder runs from 0.33 mm ultra-thin glass for electronics up to 22 mm plate for structural and heavy-duty use — one line logic, many specs.
- Color and performance variants are real products, not afterthoughts: body-tinted glass absorbs solar heat, coated reflective glass rejects it, and black glass combines privacy with serious heat control.
- Batch consistency is the export-quality metric that matters: color ΔE, thickness tolerance and online inspection for bubbles, scratches and stones decide whether downstream fabrication runs clean.
How the Float Process Sets the Quality

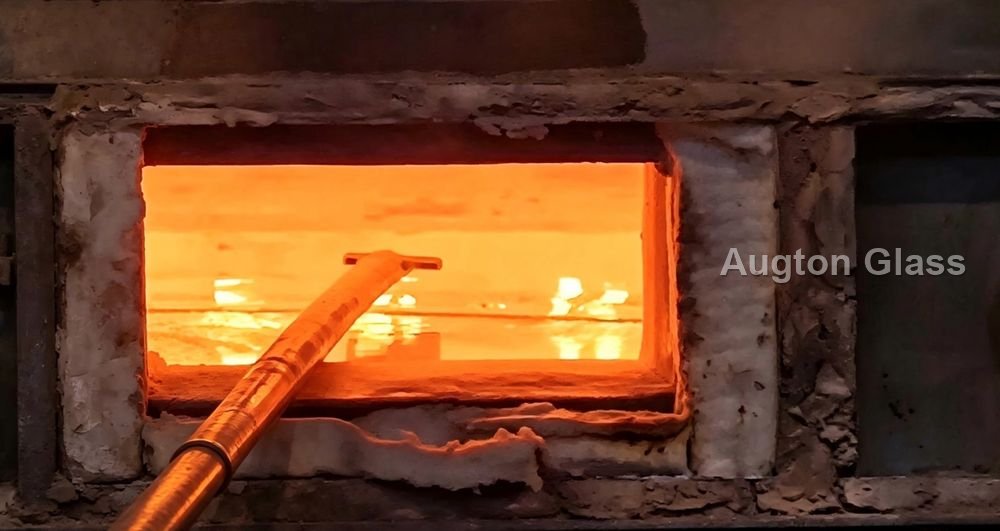

Float glass is produced by melting sand, soda ash, limestone and dolomite, then pouring the ribbon onto a bath of molten tin. Glass does not bond to tin and tin does not oxidize into the sheet, so the glass floats and levels under its own weight — the top surface smoothed by fire, the bottom by the tin. The result is a sheet with both faces flat, parallel and smooth, which is why float glass needs no surface grinding before fabrication.
Everything downstream inherits from this step. A flat, parallel ribbon cuts cleanly; a ribbon with thickness drift jams automated cutting lines and shows edge deviation after tempering. That is why the metrics that matter when comparing float suppliers are thickness tolerance across the ribbon, optical distortion, and the online inspection systems that catch bubbles, scratches, stones and inclusions before they reach your cutting table.
Our clear float glass runs exactly this discipline: high visible light transmittance with zero color distortion, double-sided ultra-smooth surfaces, strict online inspection, and a complete thickness range from 0.8 mm to 22 mm.
Clear Float: The Universal Substrate
Clear float is the raw material of the entire industry. Tempered glass, laminated glass, insulated units, mirrors, painted glass, acid-etched glass — every one of them starts as a float sheet that gets processed. When buyers ask what we make, the honest first answer is: clear float, and everything it becomes.
The practical consequences for procurement are significant. One substrate with consistent quality means one approval covers your whole processing chain: tempered glass for safety, insulated glass for windows, paint glass and acid etched glass for decoration. Mixed-substrate sourcing, by contrast, multiplies the failure modes — different floats temper differently, and color drift between batches shows up exactly where two sheets meet in a frame.
For fabrication planning, the rework ability line matters as much as the optics: clear float accepts cutting, insulating, acid etching, painting, tempering and coating without preconditioning. That is what makes it the default base for all processing.
The Thickness Ladder: 0.33 mm to 22 mm
Float lines produce a ladder of thicknesses, and each rung has its own market. At the thin end, ultra-thin glass runs from 0.33 mm with tight thickness tolerance — the substrate for electronic displays, optical components and precision instruments, where flatness matters more than strength.
The architectural heartland runs roughly 2 mm to 12 mm: 2–6 mm for interiors, mirrors and picture framing; 4–6 mm for windows and furniture; 8–12 mm for doors, railings and table tops where safety glazing rules push thickness up. Beyond that, 15–22 mm heavy plate serves structural fins, aquariums, stairs and oversized tabletops.
The sourcing note that saves money: specify the thinnest thickness your application’s standard allows. Thickness prices step up non-linearly, and overspecifying “one grade heavier” across a container is one of the most common silent costs in glass procurement.
Body-Tinted Variants: Color That Absorbs Heat
Tinted float adds metal oxides to the melt itself, so the color runs through the body: tinted glass in F-Green, Ford Blue, bronze and grey tones absorbs a large proportion of solar energy, cutting heat gain and glare while adding architectural color.
Because the color is in the glass, tinted sheets keep their tone through cutting, edgework and weathering, and they serve as substrate for tempering, laminating, insulating and coating. The quality metric here is color consistency within a batch and across batches — a facade built from two shipments must read as one building.
Black glass is the specialist end of the tinted family: around 10% visible light transmission, a shading coefficient near 0.40 that blocks roughly half of solar heat, and under 2% UV transmission. Developed for automotive sunroofs and sidelites as well as architectural privacy, it stays opaque from outside while preserving the view from inside, with batch color held to ΔE*ab ≤ 2.5.
Coated Variants: Reflective and Solar Control
Where tinted glass absorbs heat, coated glass rejects it. Reflective glass carries a chemically formed high-temperature film with a mirror-like facade appearance, acid and alkali resistance, and daytime privacy. Crucially for fabricators, the coating tolerates processing: reflective sheets can be toughened and thermally curved without damaging the film.
Solar control glass goes a step further, shielding incoming solar radiation while keeping indoor light soft — usable as single glazing for windows, doors and curtain walls, or as the lite for high-performance insulated units. Installation orientation matters: as single glazing, the coated face should face indoors to maximize service life and performance.
The choice between tinted and coated is a climate and budget decision, not a quality ranking. Tinted costs less and suits moderate solar loads; coated performance pays for itself in hot climates and large facade areas. Our solar control glazing comparison walks through the full selection logic.
Quality Control: What to Verify Before Shipping
Float quality failures are rare per sheet but expensive per container, so verification is about systems, not spot checks. Three checkpoints matter. First, thickness tolerance across the ribbon and within the pack — request the tolerance band for your thickness, not a catalogue promise. Second, optical quality: zero color distortion in transmission, no visible seam or wave when viewed at raking angle. Third, the online inspection record for bubbles, scratches, stones and inclusions.
For color variants, insist on batch consistency data: ΔE values for blacks and greys, and cross-batch color matching on tinted greens and blues. For coated products, ask about film adhesion and abrasion testing, and confirm which face carries the coating for your application.

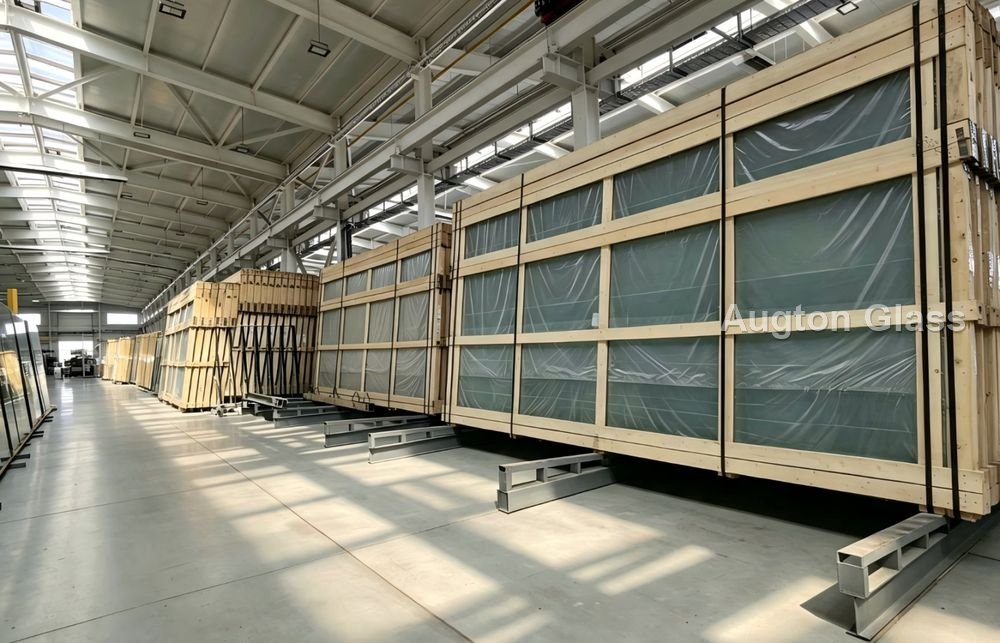

Every pack ships with edge protection, interleaf and moisture-aware packing — float sheets are stacked tight, and the failure mode in transit is pressure and moisture, not impact. Our standard export packing applies to every thickness rung from 0.33 mm up.
From Float Sheet to Finished Product: How to Order
Most buyers order float in one of two modes. Fabricators order jumbo or standard sheet sizes by thickness and cut in their own workshops — the most economical route when you have cutting capacity. Project buyers order cut-to-size with edges and processing done here, so panels arrive ready for installation.
Mixed-thickness containers are routine: a typical shipment combines 4–6 mm clear for general fabrication, a color run of tinted or reflective for facades, and a thin-glass pack for specialty work. Tell us the end products and we will propose the sheet mix and packing plan.
If your project needs the processed forms — tempered, insulated, laminated, painted — those run on the same quality system from the same substrate. Start from our clear float glass page for the thickness table, or send the bill of quantities and we will quote sheet-by-sheet.
Frequently Asked Questions
What is the difference between float glass and sheet glass?
Float glass is formed on a molten tin bath, giving perfectly flat, parallel surfaces with no grinding. Older sheet (drawn) glass shows slight waves and thickness variation — float is the modern standard for all quality applications.
What thickness range do you supply?
From 0.33 mm ultra-thin glass for electronics up to 22 mm heavy plate, with clear float covering 0.8–22 mm. Tell us the application and we will confirm the right rung.
Can I mix thicknesses and colors in one container?
Yes — mixed containers are routine. A typical load combines clear, tinted or reflective sheets in several thicknesses, packed by product line so nothing loads anything.
Is tinted glass better than reflective glass for heat control?
They work differently: tinted glass absorbs solar heat into the body, reflective glass rejects it at the surface. Tinted suits moderate loads and tighter budgets; coated performance wins in hot climates and large facades.
Which face of solar control glass faces indoors?
As single glazing, the coated face should face indoors — it improves service life and maximizes performance. We mark coated faces on every pack.
What quality certificates come with float glass shipments?
Each shipment includes inspection records for thickness tolerance and optical quality, plus the certification set for your market. Batch color data is provided for tinted and black glass.
Can you supply cut-to-size instead of full sheets?
Yes. We supply jumbo and standard sheets for workshops with cutting capacity, and cut-to-size panels with edgework and processing for project buyers.
How is float glass packed for sea freight?
Tight-stacked sheets with interleaf, edge protection and moisture-aware packing in seaworthy crates — the standard for every thickness from 0.33 mm up.
The Bottom Line
Send your thickness list, colors and target quantities — we will return a float glass quotation sheet-by-sheet, with a packing plan for mixed containers.
