Product Description
Designed around the twin requirements architects bring to a project — the functional and the aesthetic — reflective glass is float glass coated on-line. CVD technology (chemical vapor deposition) forms a perfectly uniform layer of metal oxide that is chemically bonded to the glass surface.

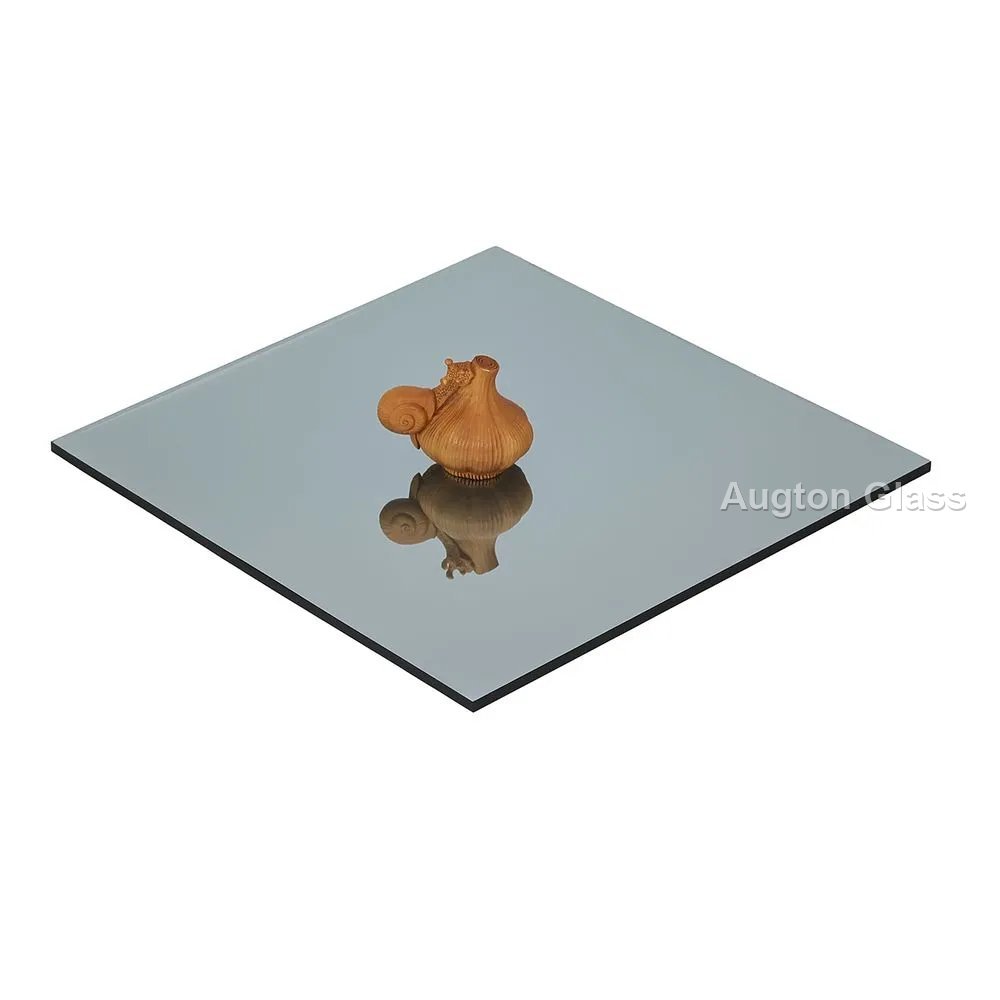

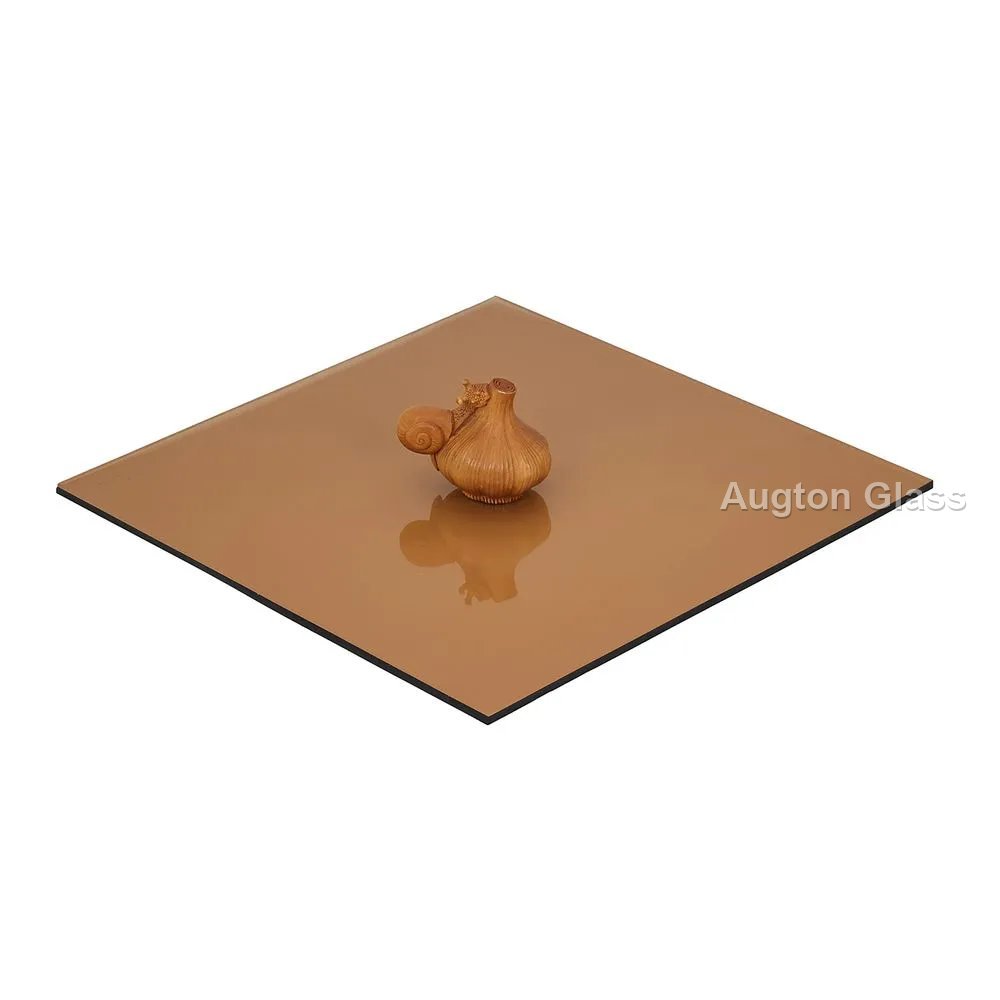

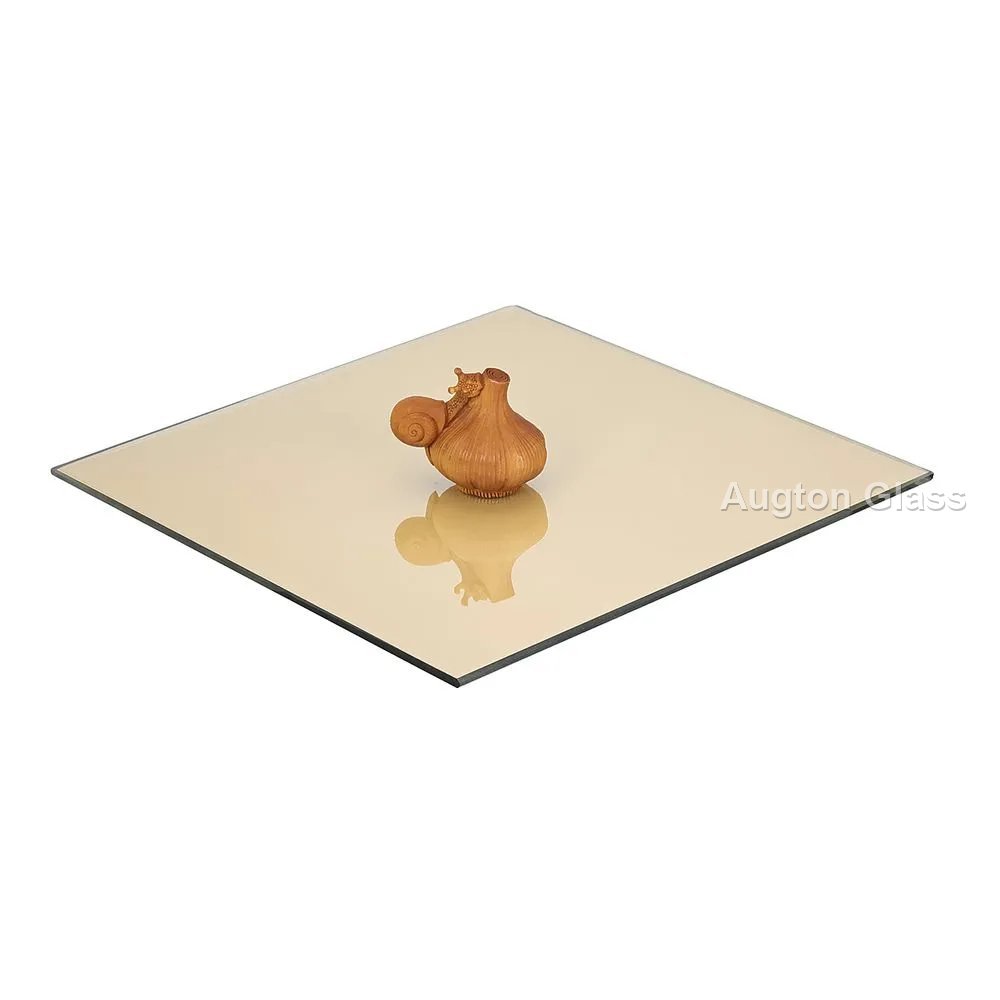

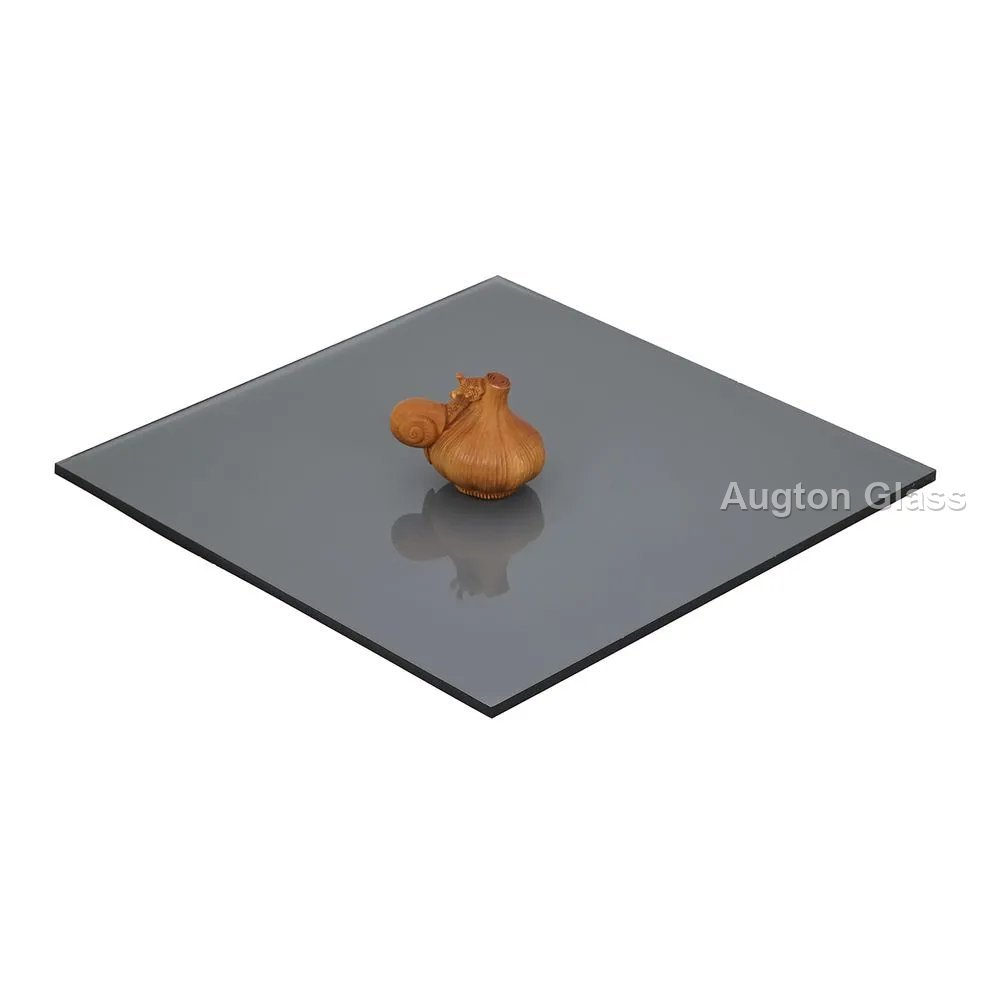

That coating lends the glass a "mirror-like" facade, pairing visual appeal with functional benefits such as solar control and glare reduction. Since the hard chemical layer is fully bonded to the glass, the product can be cut, bent, tempered, heat strengthened and laminated without any effect on the coating. A range of performances is available to meet most environmental requirements for solar control, thermal comfort and energy conservation.
AUGTON GLASS coats this glass on-line in its own float operation and supplies it direct to projects worldwide, with performance grades matched to solar control and energy conservation targets.
Key Features
- Excellent optical performance and a mirror-like facade appearance
- Excellent chemical stability with acid and alkali resistance
- Film chemically formed at high temperature, giving high wear ability
- High color uniformity for a gentle and elegant visual effect
- Easy to machine — can be toughened and thermally curved without affecting the coating
- Reduces solar heat gain and glare while providing daytime privacy
Applications
Architecture
- Commercial towers
- Curtain wall systems
- Office building facades
- Hotel exteriors
Retail & Public
- Shopping malls
- Showrooms
- Airport terminals
- Sports venues
Deep Processing Base Material
- Tempered reflective glass
- Laminated reflective glass
- Insulated glazing units
- Heat strengthened glass
Optical Performance Parameters

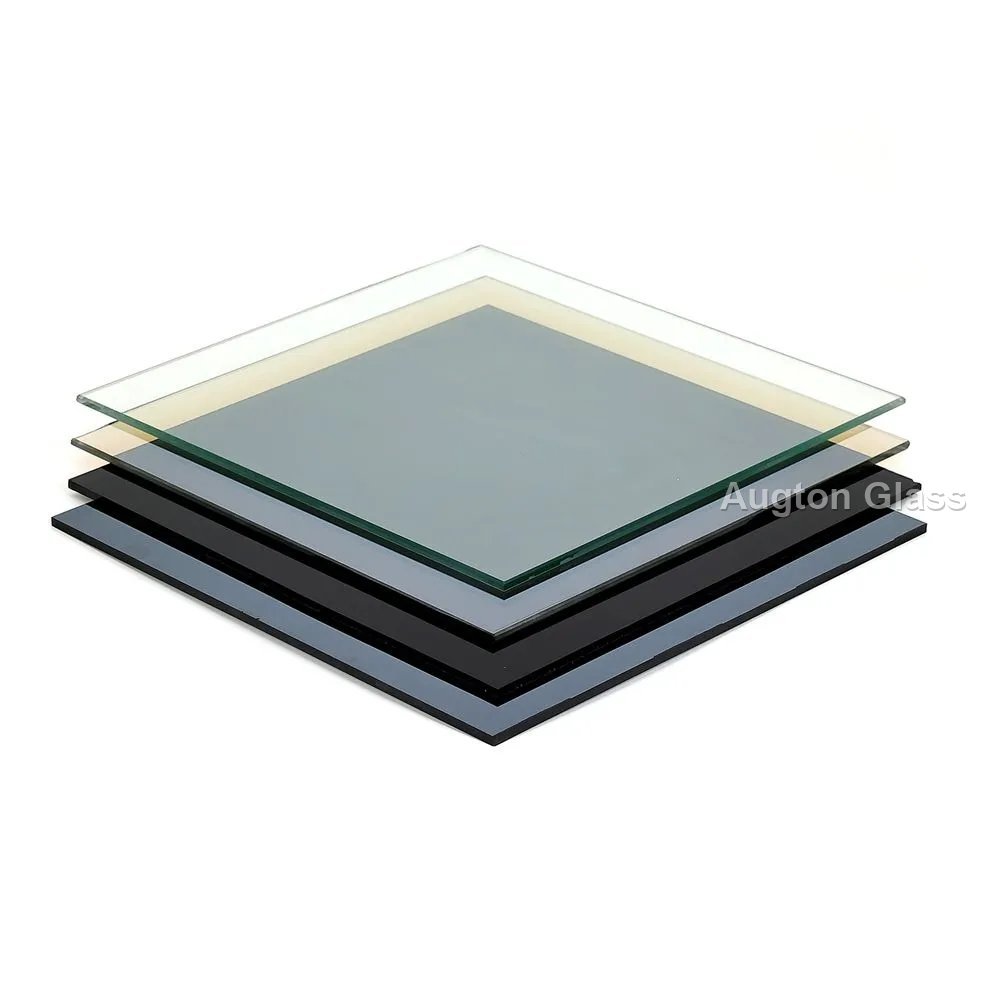

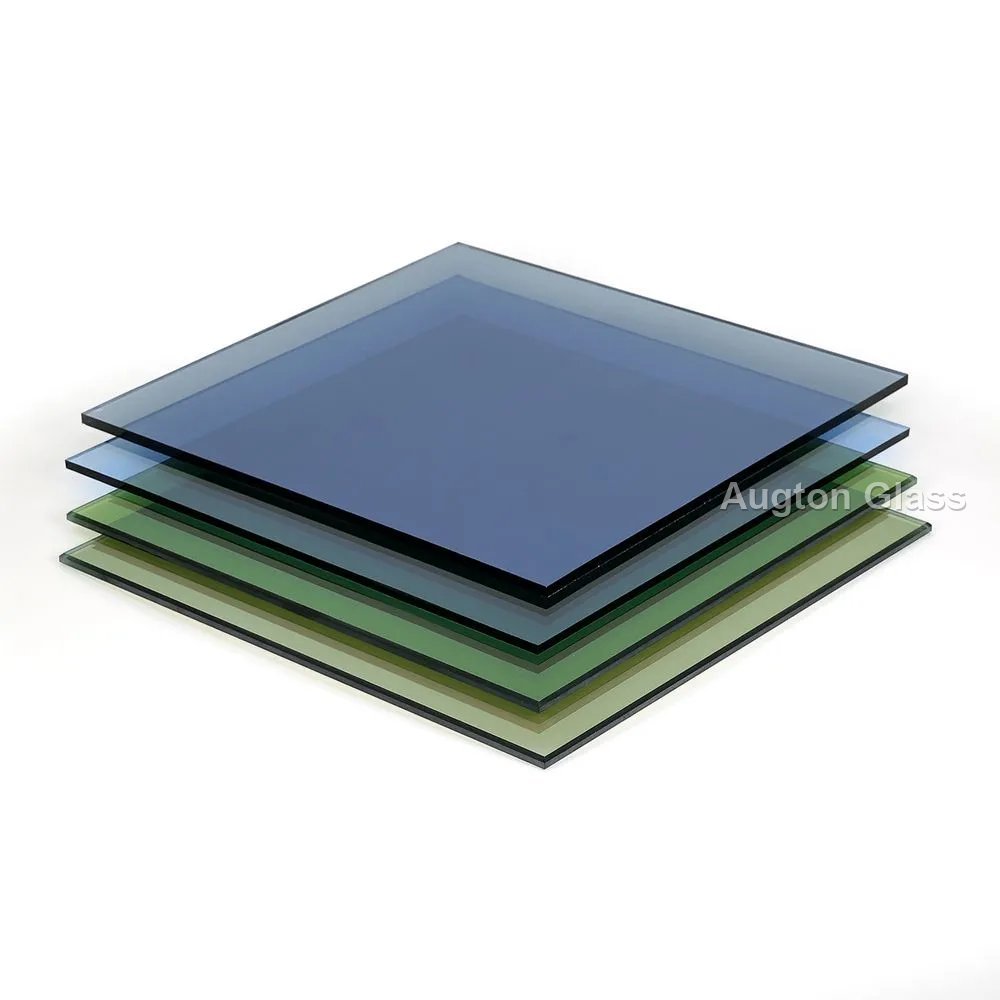

Optical parameters of each reflective color at different thicknesses are listed below, including visible light transmittance, sunlight performance and shading coefficient, which can be provided for your architectural design calculation upon request.
| Glass | VL Transmittance (%) | VL Reflectance (%) | Solar Direct Trans. (%) | Solar Direct Reflect (%) | Shading Coeff. (SC) | Sum of Solar Energy Trans. (%) |
|---|---|---|---|---|---|---|
| 5mm F-Green Reflective | 31.12 | 34.80 | 25.49 | 19.61 | 0.45 | 39.65 |
| 6mm F-Green Reflective | 29.94 | 33.72 | 21.12 | 18.92 | 0.41 | 36.59 |
| 4mm Pink Reflective | 30.66 | 36.06 | 47.82 | 29.17 | 0.60 | 53.76 |
| 6mm Pink Reflective | 29.92 | 28.64 | 46.40 | 22.14 | 0.61 | 54.52 |
| 4mm Dark Blue Reflective | 25.62 | 13.98 | 39.36 | 16.47 | 0.57 | 50.76 |
| 5mm Dark Blue Reflective | 20.92 | 12.52 | 33.42 | 15.00 | 0.53 | 46.73 |
| 6mm Dark Blue Reflective | 13.42 | 13.68 | 25.52 | 16.81 | 0.45 | 40.40 |
| 5mm Ford Blue Reflective | 27.50 | 19.38 | 37.07 | 16.56 | 0.55 | 49.03 |
| 6mm Ford Blue Reflective | 24.97 | 16.51 | 32.04 | 14.72 | 0.51 | 45.78 |
| 4mm Euro Grey Reflective | 26.90 | 19.59 | 37.38 | 17.36 | 0.55 | 49.05 |
| 6mm Euro Grey Reflective | 19.55 | 13.99 | 27.64 | 12.69 | 0.48 | 42.97 |
| 4mm Dark Grey Reflective | 17.96 | 10.10 | 30.09 | 11.30 | 0.51 | 45.21 |
| 5mm Dark Grey Reflective | 14.03 | 9.07 | 25.06 | 10.56 | 0.47 | 42.05 |
| 6mm Dark Grey Reflective | 13.02 | 6.97 | 22.70 | 8.20 | 0.46 | 40.53 |
Frequently Asked Questions
What thicknesses and sizes are available for Reflective Glass?
Reflective Glass is available in 4mm – 6mm. Jumbo sizes up to 3.66m x 12m are possible, and custom cutting to your drawings is supported.
Do you offer custom processing?
Yes. Accept customized size & processing requirements - just send us your drawings, sizes or special requirements.
What certifications do your products hold?
Our reflective glass has passed multiple international authoritative tests and obtained complete conformity certificates, including CE, SGCC, ISO 9001 and other global market access certifications. All products comply with GB/T 18915.1, EN 1096 and international industrial standards, eligible for export to Europe, North America, Australia, Southeast Asia, the Middle East and other regions.
How is the glass packed for export shipping?
All glass sheets are separated by anti-scratch PE film, then packed into ISPM15 heat-treated solid wooden crates. We use rainproof plastic wrapping and reinforced steel strapping to fix the stacks firmly, effectively avoiding breakage during long-distance sea and land transportation. Forklift loading and container stuffing are available for bulk orders.
How can I get a quote?
Email us at sales@augtonglass.com with your sizes, thickness and quantity - our sales team replies within 24 hours.
Production Line & Export Packaging

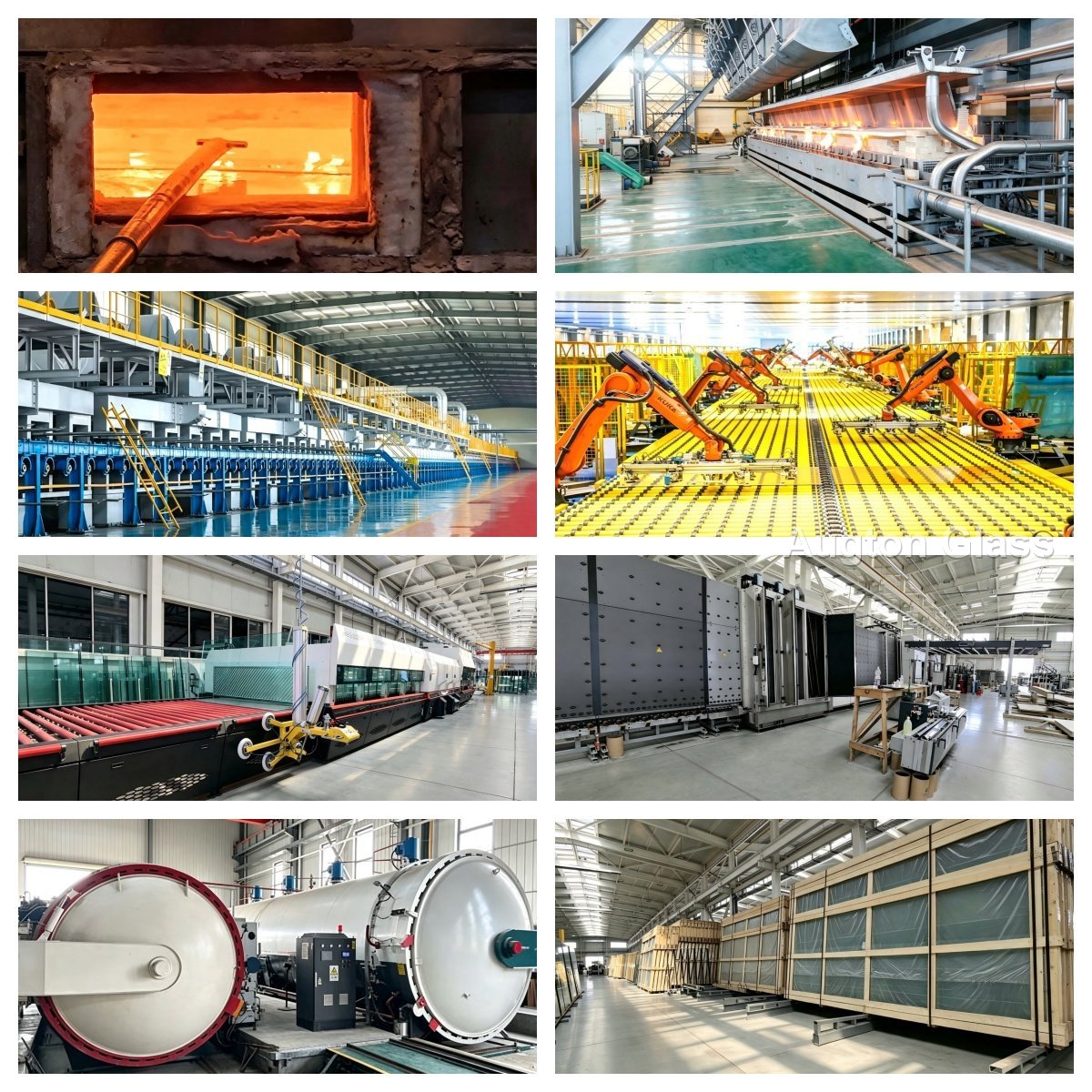

Advanced Automatic Production Workshop
Our reflective glass is coated on-line during the float process using CVD technology, where a perfectly uniform layer of metal oxide is chemically bonded to the glass surface at high temperature. Online defect inspection devices guarantee consistent coating quality and color uniformity of each batch.
Standard Export Wooden Crate Packaging
All glass sheets are separated by anti-scratch PE film, then packed into ISPM15 heat-treated solid wooden crates. We use rainproof plastic wrapping and reinforced steel strapping to fix the stacks firmly, effectively avoiding breakage during long-distance sea and land transportation. Forklift loading and container stuffing are available for bulk orders.
Certification
Our reflective glass has passed multiple international authoritative tests and obtained complete conformity certificates, including CE, SGCC, ISO 9001 and other global market access certifications. All products comply with GB/T 18915.1, EN 1096 and international industrial standards, eligible for export to Europe, North America, Australia, Southeast Asia, the Middle East and other regions.
We manufacture to the applicable standards of your destination market and can provide test reports, certificates of conformity and Declarations of Performance.
Europe (CE)
CE-marked glass with Declaration of Performance for EU construction products.
Americas
SGCC and IGCC certified safety and insulated glass units.
Australia & New Zealand
Safety glazing certified through SAI Global.
Middle East
SASO / GSO conformity support for Gulf and Levant projects.
