Tempered Laminated Glass
QR
Product Description
Two or more glass layers, each tempered in advance, are laminated with more PVB layers than normal laminated glass receives. The build therefore merges the high strength and shock resistance of tempered glass with the shatterlessness of laminated glass.
Sudden strong shock or sustained high pressure in high-safety locations, such as glass floors, glass roofs, guard rails, aquariums and elevator glazing, is exactly what it is built for. Design freedom comes from colored PVB options, and adding further layers produces bullet-resistant build-ups.
AUGTON GLASS produces custom make-ups with glass from 3mm to 19mm and PVB multiples of 0.76mm, in sizes up to 3660x18000mm, exported factory-direct worldwide.
Key Features
- Dual safety: tempered strength plus shatterless PVB bonding, so any shatters stick to the PVB layer
- Strong shock resistance thanks to pre-tempered glass layers
- Solid sound insulation for noise-sensitive rooms
- UV-proof: most UV is insulated out while visible light still passes through
- Bullet-proof build-ups become possible when more PVB and glass layers are added

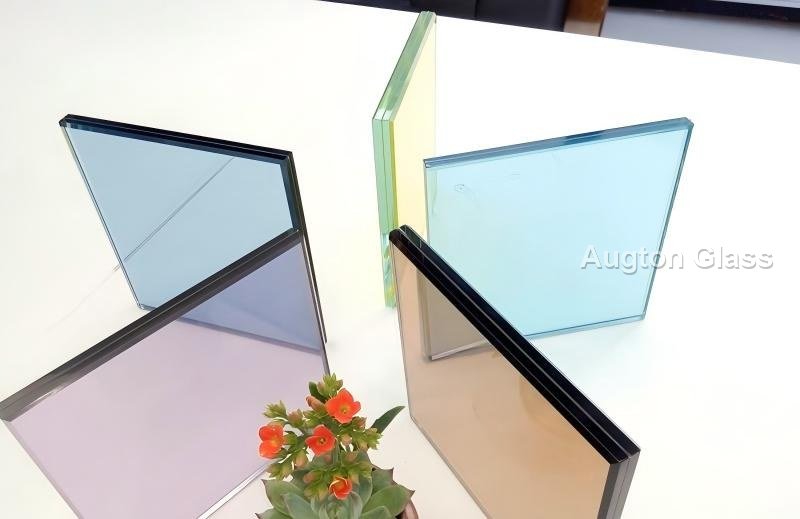

- Colorful options: transparent, milk white and various colored PVB interlayers

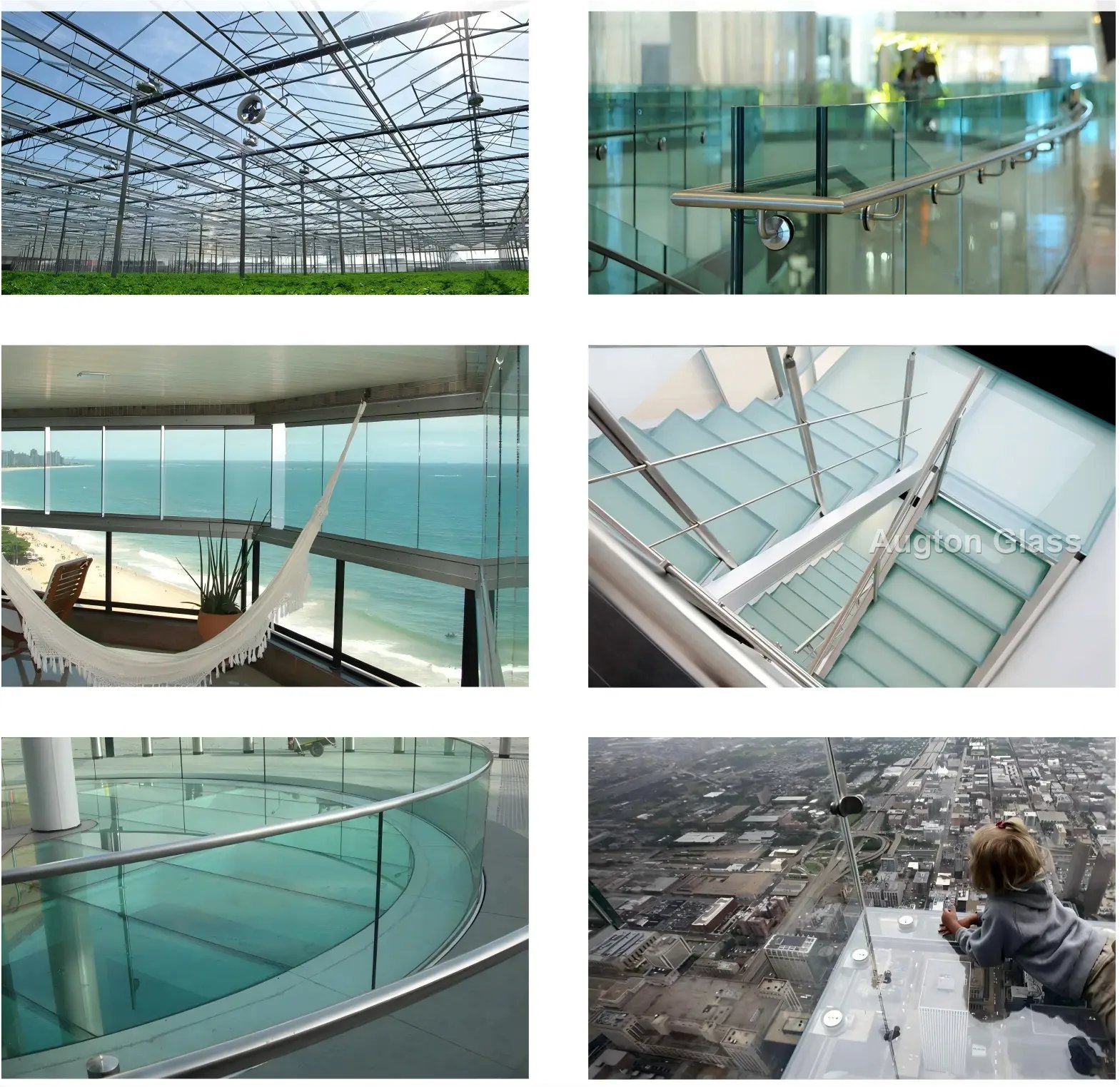

Applications
High Safety Glazing
- Glass floors
- Glass roofs
- Guard rails

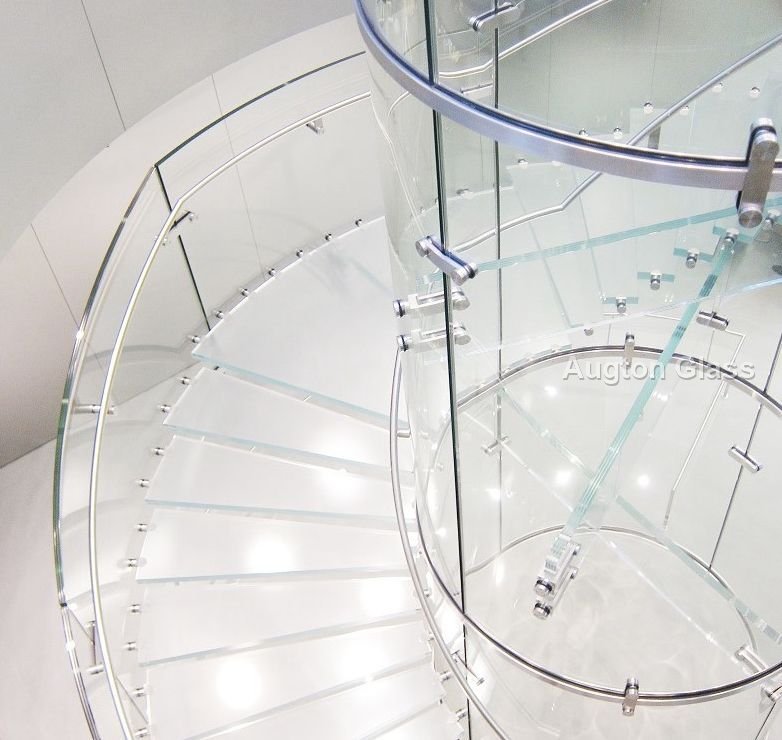

- Stair treads
Special Structures
- Aquariums
- Elevator offices
- Showcase platforms
- Skywalks
Architecture
- Curtain walls
- Windows & doors
- Balustrades
- Overhead glazing
Optical Performance Parameters

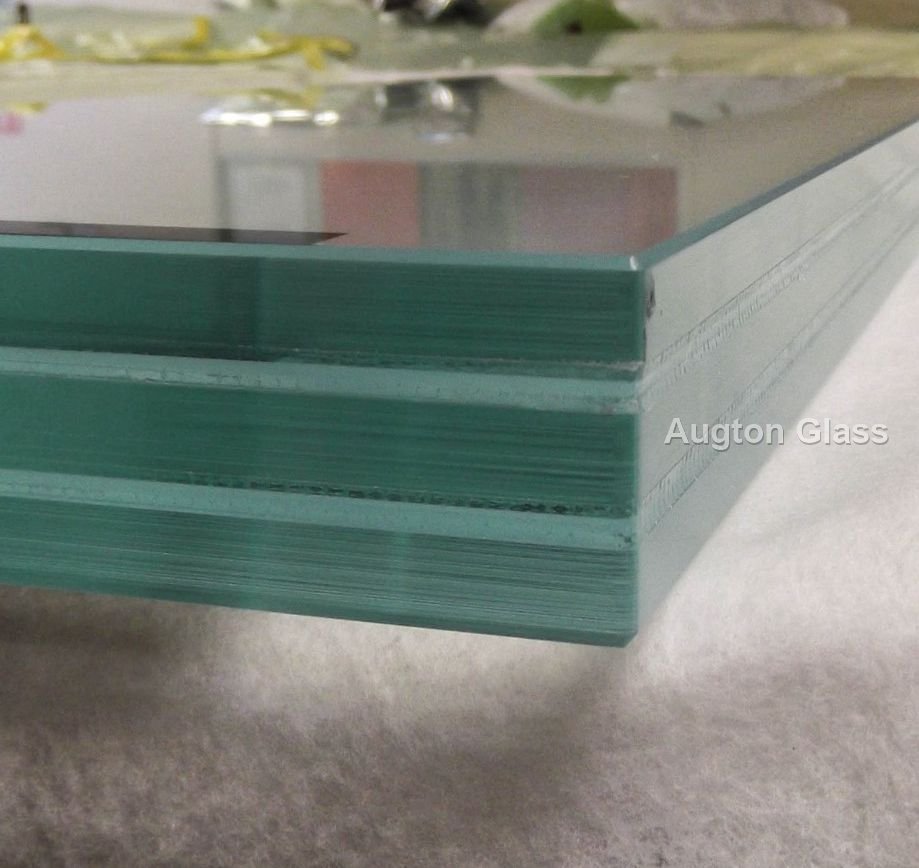

Construction: pre-tempered glass laminated with PVB in multiples of 0.76mm. Typical make-ups: 8+1.14+8mm, 10+1.52+10mm. Max size 3660x18000mm. All glass is tempered before laminating — no re-cutting or drilling after lamination.
Frequently Asked Questions
What thicknesses and sizes are available for Tempered Laminated Glass?
Tempered Laminated Glass is available in 3mm – 19mm. Jumbo sizes up to 3.66m x 12m are possible, and custom cutting to your drawings is supported.
Do you offer custom processing?
Yes. Accept customized make-ups, PVB colors & edgework requirements - just send us your drawings, sizes or special requirements.
What certifications do your products hold?
Our tempered laminated glass has passed multiple international authoritative tests and obtained complete conformity certificates, including CE, ISO 9001 and RoHS by SGS. All products comply with GB 15763.3, BS EN 14449 and BS EN 12150, eligible for export to Europe, North America, Australia, Southeast Asia, the Middle East and other regions.
How is the glass packed for export shipping?
Tempered laminated glass sheets are separated by anti-scratch film and soft interlayers, then packed into ISPM15 heat-treated solid wooden crates with rainproof plastic wrapping and reinforced steel strapping.
How can I get a quote?
Email us at sales@augtonglass.com with your sizes, thickness and quantity - our sales team replies within 24 hours.
Production Line & Export Packaging

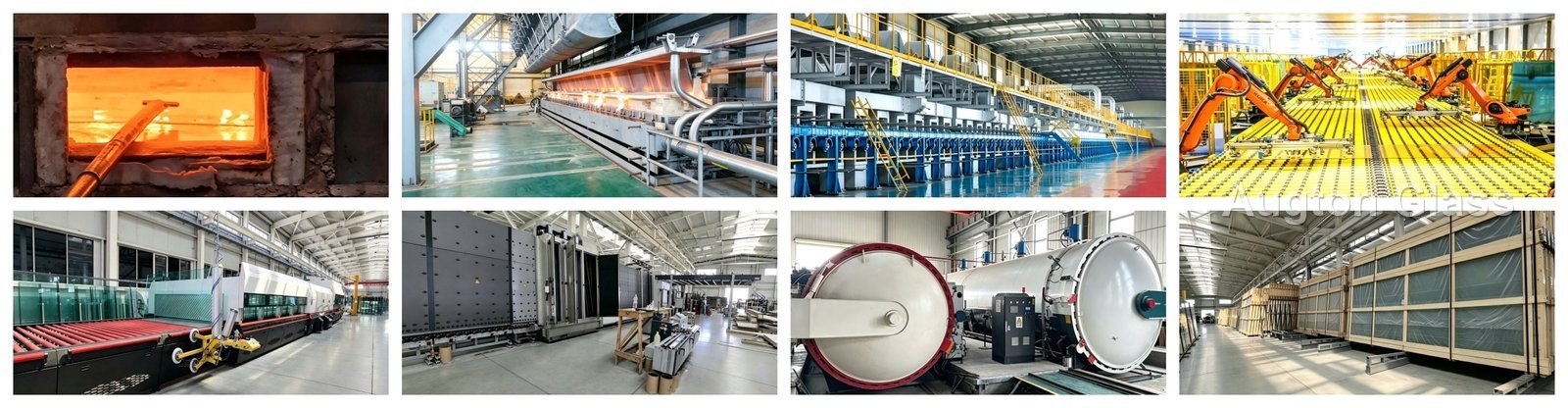

Advanced Automatic Production Workshop
Our tempered laminated glass is produced on full-set tempering furnaces followed by clean room lamination and autoclave curing. Pre-tempering each lite guarantees strength, while digital autoclave control ensures bubble-free, optically clear bonding of the PVB layers.
Standard Export Wooden Crate Packaging
Tempered laminated glass sheets are separated by anti-scratch film and soft interlayers, then packed into ISPM15 heat-treated solid wooden crates with rainproof plastic wrapping and reinforced steel strapping.
Certification
Our tempered laminated glass has passed multiple international authoritative tests and obtained complete conformity certificates, including CE, ISO 9001 and RoHS by SGS. All products comply with GB 15763.3, BS EN 14449 and BS EN 12150, eligible for export to Europe, North America, Australia, Southeast Asia, the Middle East and other regions.
We manufacture to the applicable standards of your destination market and can provide test reports, certificates of conformity and Declarations of Performance.
Europe (CE)
CE-marked glass with Declaration of Performance for EU construction products.
Americas
SGCC and IGCC certified safety and insulated glass units.
Australia & New Zealand
Safety glazing certified through SAI Global.
Middle East
SASO / GSO conformity support for Gulf and Levant projects.
