Clear Float Glass
QR
Product Description

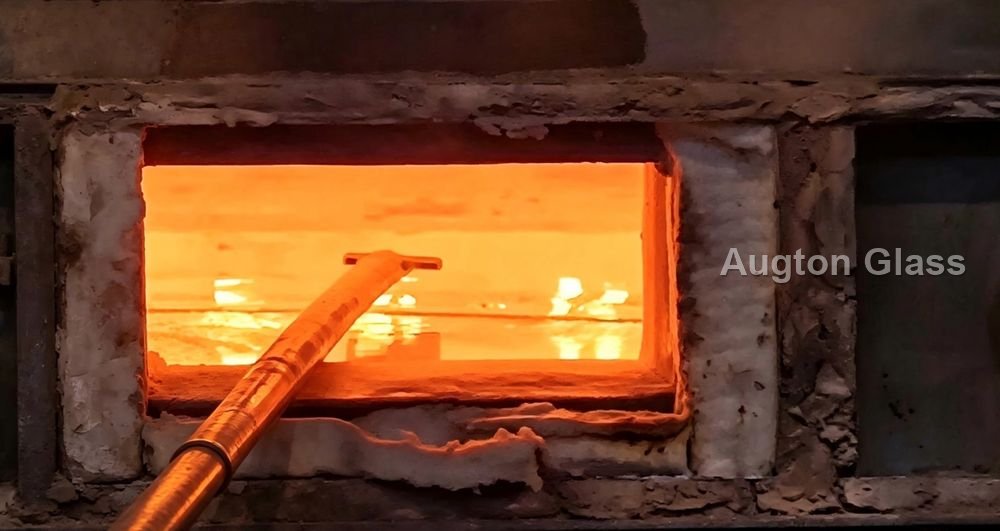

The production of clear float glass begins with premium quartz sand, natural mineral ores and refined chemical raw materials, batched in precise proportions and melted under ultra-high temperature. The molten glass then flows continuously into a tin bath, where gravity and surface tension let it spread naturally over the liquid tin, forming perfectly even sheets with mirror-smooth surfaces.
The finished base glass combines uniform flatness, outstanding optical performance, stable chemical properties and reliable mechanical strength. Its strong resistance to acid, alkali and atmospheric corrosion translates into a long service life for both indoor and outdoor projects.
AUGTON GLASS manufactures this core product in its own plant and ships it direct to buyers worldwide, with the full thickness range in stock and custom sizes cut on request.
Key Features
- High visible light transmittance and premium optical performance, with zero color distortion
- Ultra-smooth flat surface on both sides, backed by strict online inspection that keeps bubbles, scratches, stones and other visual defects under control
- Excellent rework ability — suitable for cutting, insulating, acid etching, painting, tempering, coating and other deep processing
- Complete thickness coverage from 0.8mm to 22mm to meet diversified project demands
Applications
Construction
- Building windows
- Entrance doors
- Full glass curtain walls
- Balcony balustrades
- Sunroom glazing
Interior & Furniture
- Office partitions
- Shower enclosures
- Glass table tops
- Cabinet panels
- Decorative screens
Deep Processing Base Material
- Mirror production
- Tempered safety glass
- Laminated glass
- Insulated glass
Industrial Use
- Automotive windshields & side windows
- Optical instrument panels
- Household appliance glass
Optical Performance Parameters
Different thicknesses come with fixed optical data including ultraviolet transmittance, visible light transmittance, solar heat performance, U-value and shading coefficient (SC), which can be provided for your architectural design calculation upon request.
| Thickness (mm) | UV Trans. | VL Trans. | VL Reflect (Out) | VL Reflect (In) | Solar Direct | Solar Reflect | Solar Absorb | U-Value Sum. | U-Value Win. | SC |
|---|---|---|---|---|---|---|---|---|---|---|
| 2.1 | 0.7791 | 0.9063 | 0.0742 | 0.0747 | 0.8748 | 0.0702 | 0.0550 | 5.3580 | 5.9450 | 1.0240 |
| 2.3 | 0.7775 | 0.9061 | 0.0738 | 0.0743 | 0.8739 | 0.0698 | 0.0563 | 5.3523 | 5.9380 | 1.0233 |
| 2.5 | 0.7759 | 0.9058 | 0.0733 | 0.0738 | 0.8730 | 0.0694 | 0.0577 | 5.3465 | 5.9310 | 1.0225 |
| 3.0 | 0.7727 | 0.9053 | 0.0724 | 0.0729 | 0.8712 | 0.0685 | 0.0603 | 5.3350 | 5.9170 | 1.0210 |
| 4.0 | 0.7342 | 0.9017 | 0.0750 | 0.0751 | 0.8529 | 0.0694 | 0.0777 | 5.3050 | 5.8820 | 1.0070 |
| 5.0 | 0.7009 | 0.8982 | 0.0699 | 0.0712 | 0.8372 | 0.0643 | 0.0985 | 5.2740 | 5.8460 | 0.9960 |
| 6.0 | 0.6791 | 0.8934 | 0.0735 | 0.0738 | 0.8244 | 0.0666 | 0.1089 | 5.2470 | 5.8140 | 0.9850 |
| 8.0 | 0.6260 | 0.8813 | 0.0680 | 0.0743 | 0.7920 | 0.0600 | 0.1480 | 5.1880 | 5.7440 | 0.9610 |
| 12.0 | 0.5756 | 0.8728 | 0.0650 | 0.0686 | 0.7431 | 0.0556 | 0.2014 | 5.0740 | 5.6100 | 0.9250 |
| 15.0 | 0.5411 | 0.8630 | 0.0756 | 0.0759 | 0.7084 | 0.0624 | 0.2292 | 4.9970 | 5.5190 | 0.8960 |
Frequently Asked Questions
What thicknesses and sizes are available for Clear Float Glass?
Clear Float Glass is available in 0.8mm – 22mm. Jumbo sizes up to 3.66m x 12m are possible, and custom cutting to your drawings is supported.
Do you offer custom processing?
Yes. Accept customized size & processing requirements - just send us your drawings, sizes or special requirements.
What certifications do your products hold?
Our clear float glass has passed multiple international authoritative tests and obtained complete conformity certificates, including CE, SGCC, AS/NZS and other global market access certifications. All products comply with GB11614-2009, EN 572 and international industrial standards, eligible for export to Europe, Australia, Southeast Asia, the Middle East and other regions.
How is the glass packed for export shipping?
All glass sheets are separated by anti-scratch PE film, then packed into ISPM15 heat-treated solid wooden crates. We use rainproof plastic wrapping and reinforced steel strapping to fix the stacks firmly, effectively avoiding breakage during long-distance sea and land transportation. Forklift loading and container stuffing are available for bulk orders.
How can I get a quote?
Email us at sales@augtonglass.com with your sizes, thickness and quantity - our sales team replies within 24 hours.
Production Line & Export Packaging

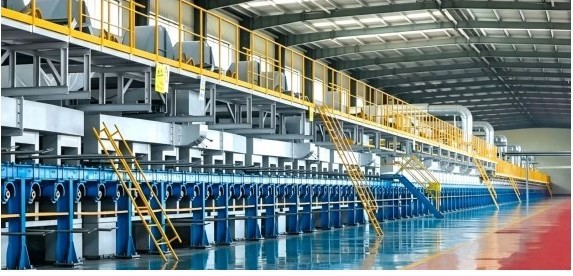

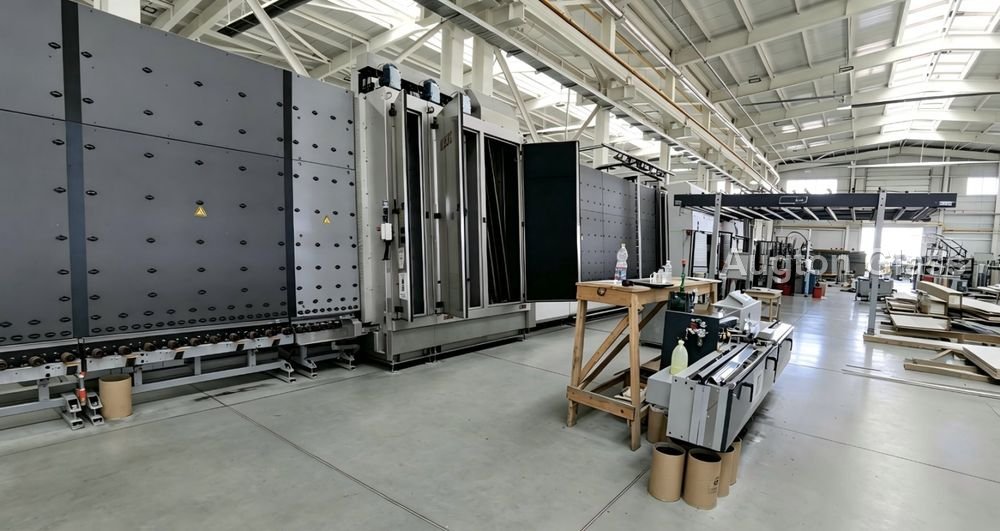

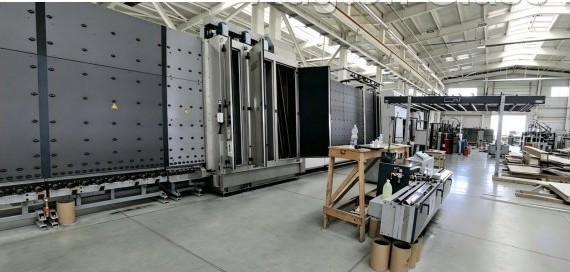

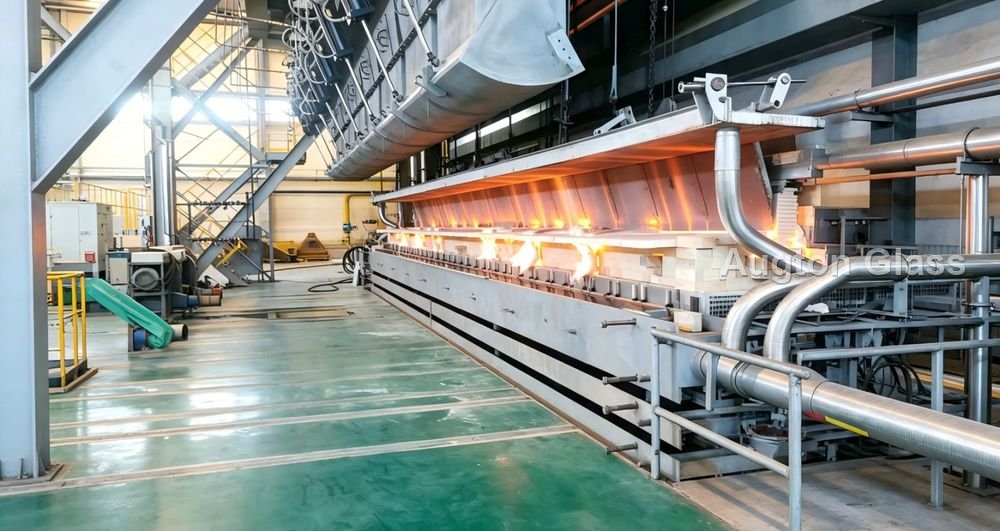

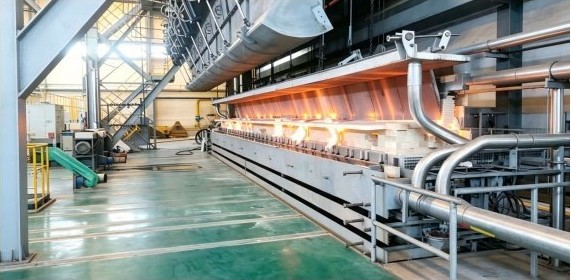

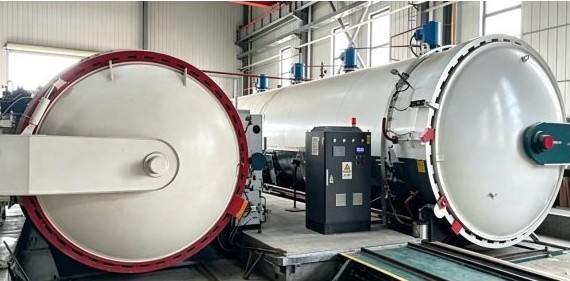

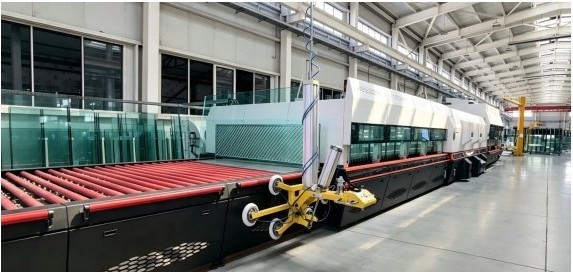

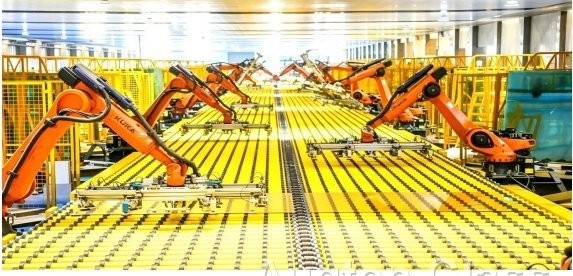

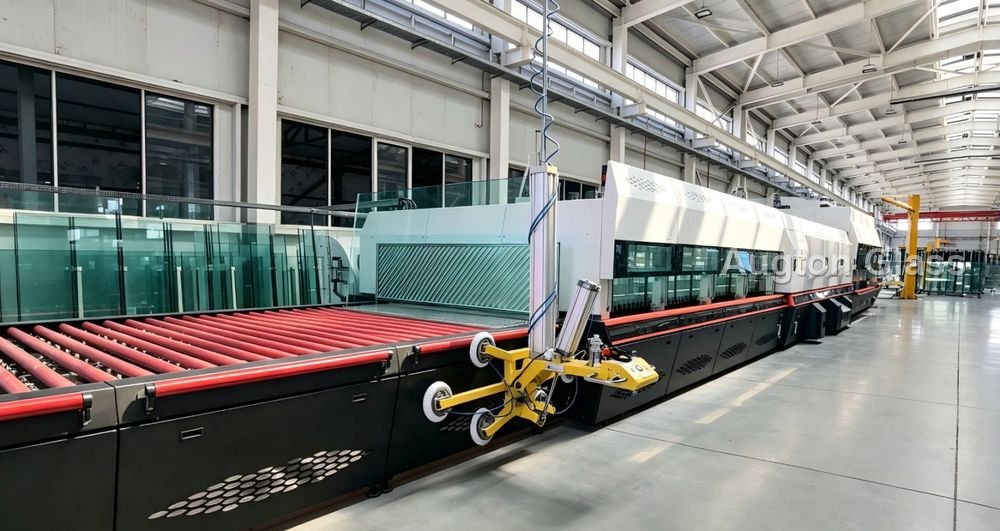

Advanced Automatic Production Workshop
We own full set automated float glass production lines, equipped with melting furnaces, tin bath forming equipment, annealing rollers, CNC cutting machines and online defect inspection devices. The whole production process is fully automated to guarantee consistent glass flatness and stable quality of each batch.

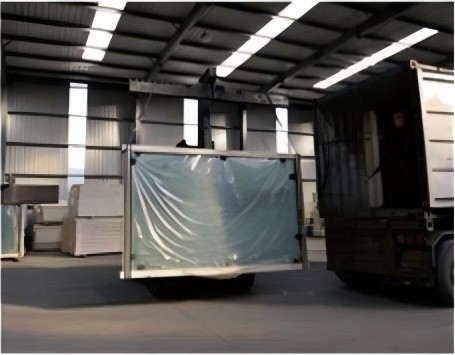

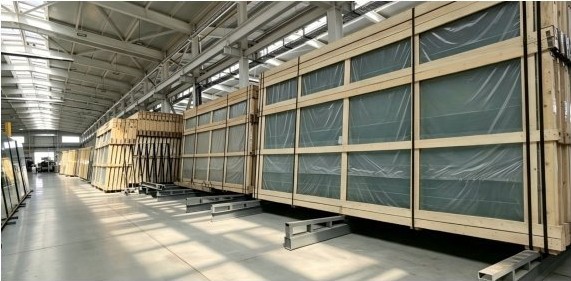

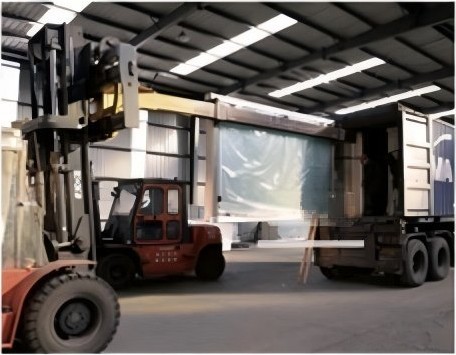

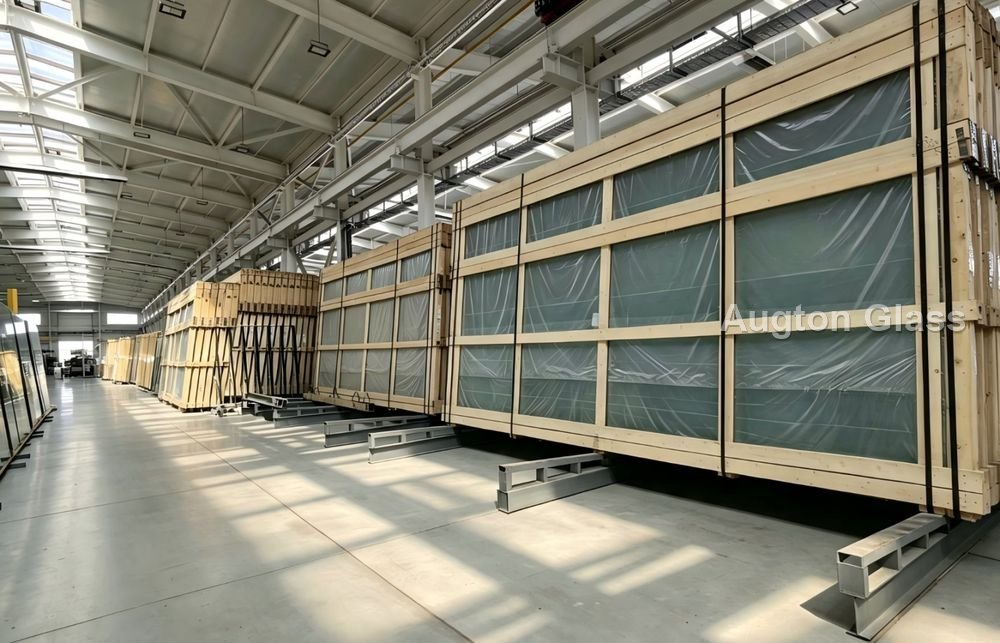

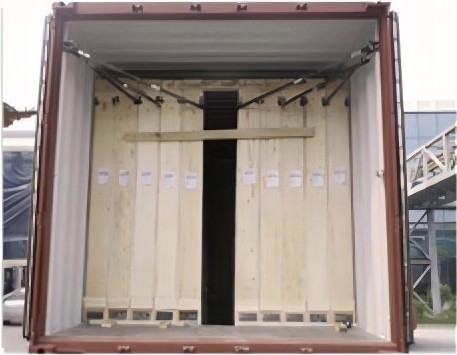

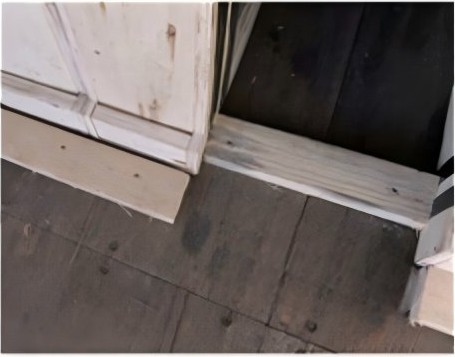

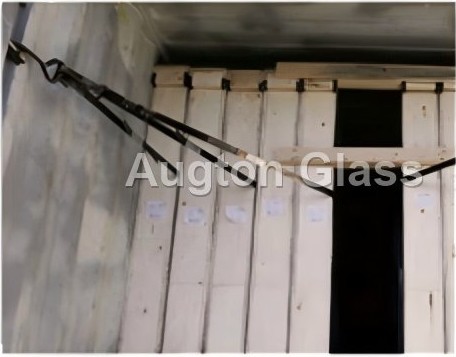

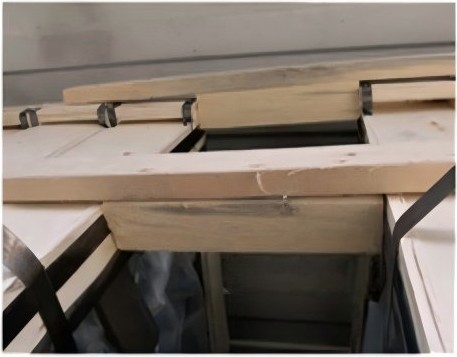

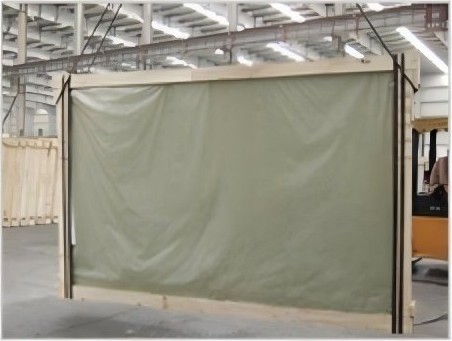

Standard Export Wooden Crate Packaging
All glass sheets are separated by anti-scratch PE film, then packed into ISPM15 heat-treated solid wooden crates. We use rainproof plastic wrapping and reinforced steel strapping to fix the stacks firmly, effectively avoiding breakage during long-distance sea and land transportation. Forklift loading and container stuffing are available for bulk orders.
Certification
Our clear float glass has passed multiple international authoritative tests and obtained complete conformity certificates, including CE, SGCC, AS/NZS and other global market access certifications. All products comply with GB11614-2009, EN 572 and international industrial standards, eligible for export to Europe, Australia, Southeast Asia, the Middle East and other regions.
We manufacture to the applicable standards of your destination market and can provide test reports, certificates of conformity and Declarations of Performance.
Europe (CE)
CE-marked glass with Declaration of Performance for EU construction products.
Americas
SGCC and IGCC certified safety and insulated glass units.
Australia & New Zealand
Safety glazing certified through SAI Global.
Middle East
SASO / GSO conformity support for Gulf and Levant projects.
