Laminated Glass Explained: Acoustic, SGP and Tempered-Laminated Compared
Two panes and an interlayer sound simple, but the interlayer choice decides whether your laminated glass blocks noise, resists hurricanes, or holds a railing together after impact. Here is how to pick the right build-up.
- The interlayer decides everything: PVB for retention, acoustics and UV; SGP ionoplast for stiffness, security and structural spans; acoustic PVB for noise.
- 0.38 mm and 0.76 mm PVB are different products — confirm interlayer type and thickness on every quote, because they look identical on paper.
- Laminated glass cannot be cut, drilled or edged after lamination; final dimensions are locked at order stage.
- Autoclave quality shows up as haze and edge bubbles — inspect delivered panels within days of arrival, not after installation.
- For overhead glazing, floors and balustrades, calculate post-breakage capacity: tempered-laminated or SGP builds hold, monolithic panes do not.
What Laminated Glass Actually Does
Laminated glass sandwiches a plastic interlayer — usually PVB (polyvinyl butyral) — between two or more glass panes under heat and pressure. When one pane breaks, the interlayer stretches and holds the fragments in place. That single property unlocks four things ordinary glass cannot do: impact safety, post-breakage retention, sound damping and UV filtering (standard PVB blocks over 99% of UV).
The Four Families You Will Actually Order
Standard PVB Laminated Glass

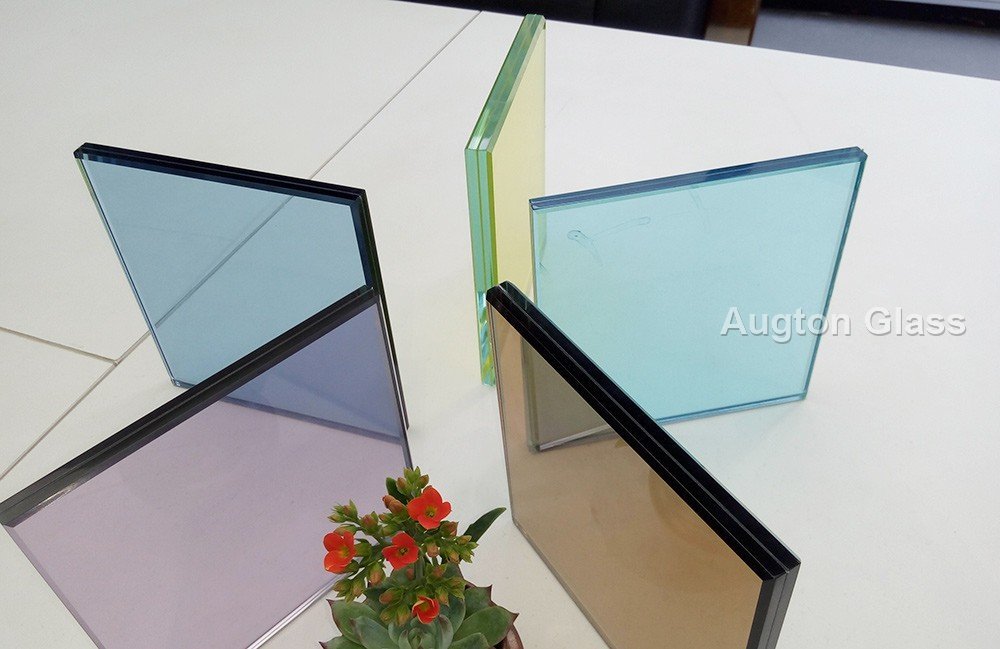

The workhorse: typically two panes of 3-10 mm glass with a 0.38 or 0.76 mm PVB sheet. Used for shopfronts, curtain wall inner lites, overhead glazing and any location where glass must stay in the frame after breakage. Our standard laminated glass line covers clear, tinted and low-iron substrates in any combination.
Acoustic Laminated Glass
A special PVB with a softer, more viscoelastic core absorbs vibration instead of transmitting it. A 6.38 mm acoustic laminate can outperform a much thicker monolithic pane — a 10.8 mm build-up (5+0.76 acoustic PVB+5) typically reaches Rw ≈ 38-40 dB versus ~31 dB for the same thickness of standard laminate. That is the difference between normal conversation and raised voices leaking through a partition. See acoustic laminated glass for tested configurations.
SGP (Ionoplast) Laminated Glass
SGP interlayers are around five times stiffer and 20 times more tear-resistant than PVB. A 5+1.52+5 SGP laminate approaches the stiffness of a much thicker PVB unit, which is why structural balustrades, glass fins, hurricane glazing and bullet-resistant assemblies specify it. The trade-offs: higher cost and less acoustic damping than soft PVB.
Tempered-Laminated Glass
Tempering both panes before laminating gives you a safety glass inside a safety glass: maximum impact strength plus full fragment retention. It is the default for frameless balustrades, glass floors, pool fences and overhead glazing above people. Compare builds on our tempered-laminated glass page.
Thickness Logic: How Specifiers Size a Laminate
- Match the wind or barrier load first — total thickness and interlayer stiffness carry the structural load, not the lamination itself.
- Choose the interlayer for the failure scenario: PVB for retention and acoustics, SGP where stiffness or security matters.
- Use asymmetric panes (e.g. 6 + 4 mm) when a single resonance frequency is a noise problem — asymmetry spreads the acoustic dip.
- For overhead or floor glazing, always calculate post-breakage capacity: tempered-laminated or SGP builds hold up; a broken monolithic pane does not.
Where Each Build Wins — Quick Comparison
| Application | Recommended build-up | Why |
|---|---|---|
| Office partition / meeting room | 6 + 0.76 acoustic PVB + 6 | Rw ≈ 38 dB, stays in frame |
| Frameless balustrade | 10 + 1.52 SGP or 12 + PVB tempered-lam | Stiffness + edge strength |
| Shopfront / jewelry window | 8 + 1.52 SGP or multi-ply attack-resistant | Delay and retention |
| Overhead canopy glazing | Tempered 6 + 1.52 PVB + tempered 6 | Post-breakage retention above people |
| Bedroom facing a highway | 5 + 0.76 acoustic + 5 in an insulated glass unit | Combines Rw with thermal control |
Fabrication Details That Decide Real-World Performance
Edges matter: an exposed interlayer edge can wick moisture and delaminate over years, so specify polished edges and compatible sealants for exposed installations. Color and clarity: standard PVB has a slight amber tint; for galleries and display cases ask for low-iron substrate or clear low-haze interlayers. And always confirm the interlayer brand and thickness on the order — a 0.38 mm and a 1.52 mm PVB sheet look identical in a quote but behave very differently in a storm.
How a Lamination Line Works — and Why Buyers Should Care
The reason to understand this sequence is quality control on arrival. A well-autoclaved laminate is optically clean with no visible edge line; a rushed one shows fine edge bubbles or overall haze within weeks of leaving the factory. Inspect panels within days of delivery — before they are installed in a frame where a claim becomes an argument.
- Both panes are cut to final size, edge-ground and washed — any glass defect is locked into the sandwich forever.
- In a dust-controlled clean room, the interlayer is laid between panes; a single hair or fingerprint becomes a permanent blemish.
- A pre-press passes the sandwich through heated rollers to seal the edges and push out most of the air.
- The autoclave finishes the job at roughly 140 degrees C and 12-13 bar for several hours, dissolving residual air into the PVB.
- Panels are inspected for edge bubbles, haze and interlayer shift before crating.
Interlayer Thickness: What the Numbers Actually Change
| Interlayer | Typical build-up | What it delivers |
|---|---|---|
| PVB 0.38 mm | 4+0.38+4 or 6+0.38+6 | Basic safety glazing; holds fragments, lowest cost |
| PVB 0.76 mm | 6+0.76+6, 8+0.76+8 | Standard safety and overhead retention; modest acoustic gain |
| Acoustic PVB 0.76 mm | 5+0.76 acoustic+5 | 6-8 dB better than standard PVB at same thickness |
| PVB 1.52 mm | 8+1.52+8 | Higher impact class, hurricane and attack-resistant builds |
| SGP 1.52 mm | 10+1.52+10 or 12+1.52+12 | Structural stiffness for fins, balustrades, glass floors |
Edges, Moisture and Long-Term Durability
Cleaning and handling on site
Standard glass cleaners are fine on both faces. Never use blades or abrasive pads to scrape cured construction mess off a laminate — scratched PVB shows permanently. Store panels vertical on edge protectors, never flat on concrete, and keep them out of direct sun stacked face-to-face, which can mark the interlayer near exposed edges.
PVB is hygroscopic: an exposed interlayer edge in a permanently damp detail will slowly wick water, whiten and delaminate from the edge inward. The defenses are simple and cheap at production stage — polished edges so the interlayer is tightly pinched and not wicking, and a compatible edge seal where panels sit in wet or exterior details. In frame details where the edge is captured in gaskets or silicone, exposure is a non-issue.
What a Proper Quote Should State
A line that just says 6.38 mm laminated hides every variable that matters. Insist the quote names: substrate (clear, low-iron, tinted) and thickness of each pane; interlayer type and exact thickness; edge work; and the safety standard the panel is certified to. Three of the four affect price; all four affect performance.
When a storm or an impact test separates suppliers, it is almost never the glass — it is the interlayer somebody swapped to save a cent. We put the interlayer specification on every proforma invoice.
Climate and Temperature Limits Worth Knowing
Standard PVB keeps its full properties in normal building environments but is temperature-sensitive at the extremes: in prolonged service above roughly 60-70 degrees C it softens enough for bubbles or interlayer flow to appear near hot edges, and in deep cold it stiffens, slightly raising haze and reducing damping. In practice this rules out unprotected laminates close to heat sources — specify ceramic-enameled or tempered builds near heaters and fireplaces, and check edge temperatures on south-facing absorptive facades. Humidity matters too: permanently wet interlayer edges whiten, which is why edge sealing in wet zones is a specification item, not an optional extra.
Frequently Asked Questions
Is laminated glass the same as tempered glass?
No. Tempering is a heat treatment of a single pane; laminating bonds two panes with an interlayer. Tempered glass breaks into small fragments but loses the opening; laminated glass cracks but stays in place. Tempered-laminated glass combines both behaviours.
How much noise does acoustic laminated glass block?
A 10.8 mm acoustic laminate typically achieves Rw 38-40 dB, roughly 6-8 dB better than same-thickness standard PVB laminate — perceptibly more than half the perceived loudness of traffic noise.
Can laminated glass be cut after manufacture?
No. Cutting, drilling and edgework must happen before lamination. Final dimensions need to be confirmed at order stage, exactly like tempered glass.
Does laminated glass block UV?
Standard PVB interlayers filter over 99% of UV radiation, which protects interiors and merchandise from fading, even though visible light passes through normally.
What is your minimum order for custom laminates?
We produce custom laminates from small trial quantities — a single crate is viable. Request free samples to test interlayer and substrate combinations before committing to a full order.
Which certifications do your laminates carry?
Laminates are produced per EN ISO 12543 and classified for impact safety under EN 12600, with ANSI Z97.1 and AS/NZS 2208 test reports available for export markets. Batch certificates accompany shipments, and full test reports for a specific build-up can be issued on request before you order.
How is laminated glass packed for export so edges arrive sound?
Panels travel vertical in crates with cork or foam edge protectors, interleaves between panels and moisture kept away from exposed interlayer edges. On arrival, store crates indoors; standing water in a crate base is the one storage mistake that can start edge whitening.
Can you build multi-ply laminates for security glazing?
Yes — three or more glass plies with alternating interlayers, often combining PVB and SGP, for attack-resistant and bullet-resistant assemblies. Send the protection class or threat description and we return a tested build-up with certification path and pricing.
Is laminated glass fire-resistant?
No — ordinary PVB laminated glass is not a fire glazing. The interlayer burns away and the panes crack in a fire. If your project has fire-rated openings, that is a different product built with intumescent interlayers or gel fills; see fire-rated glass and always match the rating to the tested assembly, not to the glass alone.
Can laminated glass be drilled for hardware like handles or spigots?
Yes, before lamination — holes and notches are cut into each pane prior to autoclaving, positioned so no hole edge sits closer than about twice the glass thickness to a panel edge. Post-lamination drilling is not possible, so hardware positions must be final at drawing approval.
The Bottom Line
Tell us the span, load and acoustic target — we will return a laminate build-up with test data and pricing within 24 hours.
