Office Glass Partitions: Acoustics, Privacy and Daylight Done Right

The Paradox of the Glass Office

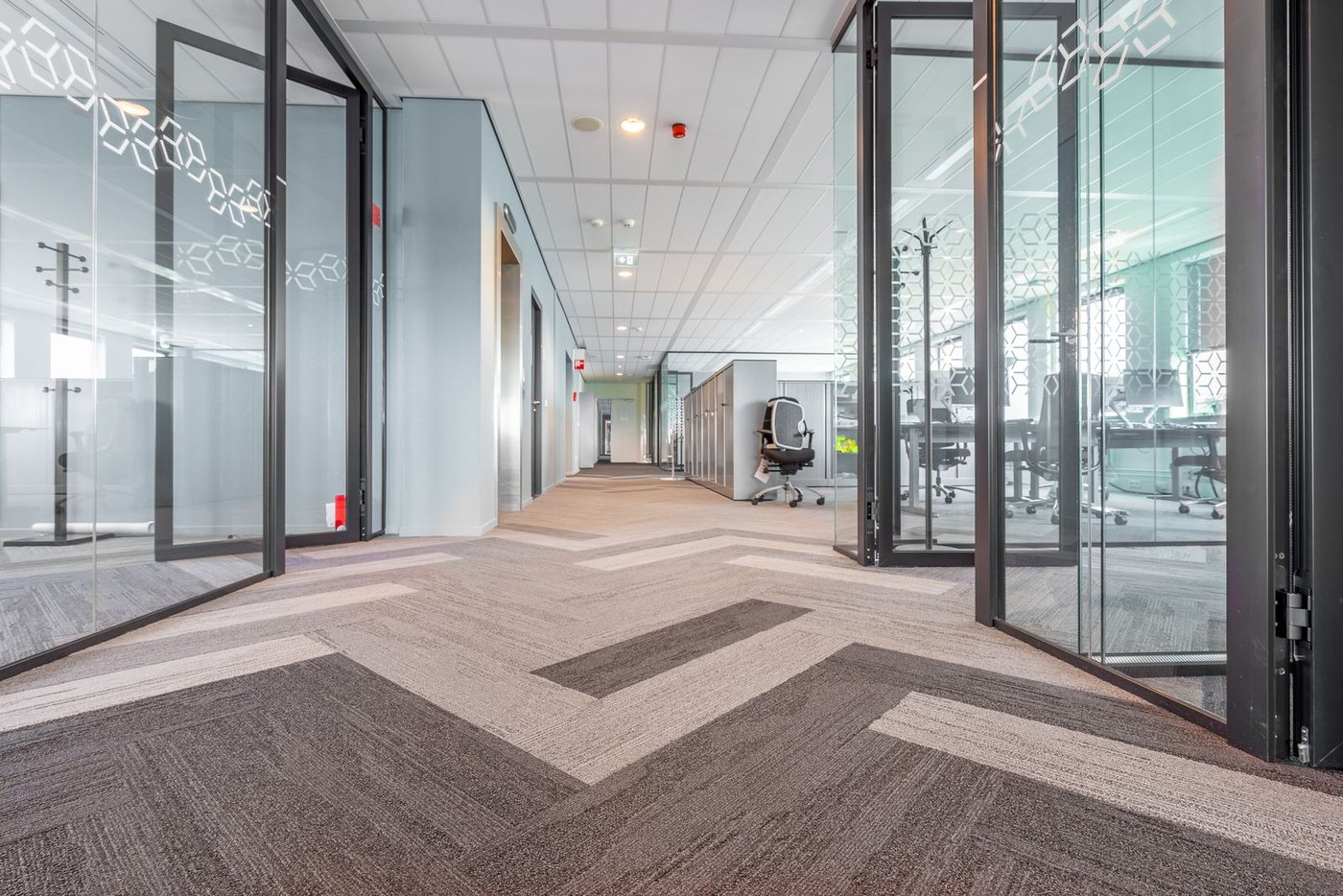

Daylight and openness are why glass partitions took over office interiors — but speech privacy is why badly specified ones get hated. A single-glazed partition in a soft-furnished open plan passes sound almost untouched: you can see the meeting, and you can hear every word of it. Getting both light and quiet is a system problem, not just a glass problem.

Start With the Acoustic Target

Define what the room must contain before choosing glass: hushed focus work needs Rw ~30-32 dB; normal meeting-room conversation Rw ~35-38 dB; board rooms, HR rooms and phone booths Rw 40+ dB. Each step up costs real money — overspecifying everywhere wastes budget, underspecifying meeting rooms wastes the whole fitout.

Glass: The First Third of the Answer

Single 10-12 mm tempered glass reaches roughly Rw 34-36 dB with good framing. The efficient upgrades: acoustic laminated glass with a soft PVB core adds 4-7 dB at the same visual thickness, and a double-glazed partition (two panes with a wide air gap, decoupled from each frame) pushes past Rw 42 dB for executive and board levels. The glass only delivers its rating when the installation lets it — see below.

The Details That Kill Ratings

• Perimeter seals: partitions must land in acoustic sealant on both faces, not silicone beads for looks. This detail alone is worth several dB.
• Floor and ceiling tracks: hollow or loose tracks re-radiate sound; solid, packed tracks are standard in rated systems.
• Doors: a standard swing glass door with a brush seal leaks like an open window relative to the wall. Drop-down acoustic seals and spring-loaded closers, or framed glass door systems with compression seals, recover most of the loss.
• Back-to-back mullions: rigidly tying the two faces of a double partition bridges the gap — use decoupled connections.
• Gaps above ceiling tiles: sound goes over the wall and comes back; partitions must continue to the slab.

Privacy: Beyond Acoustics

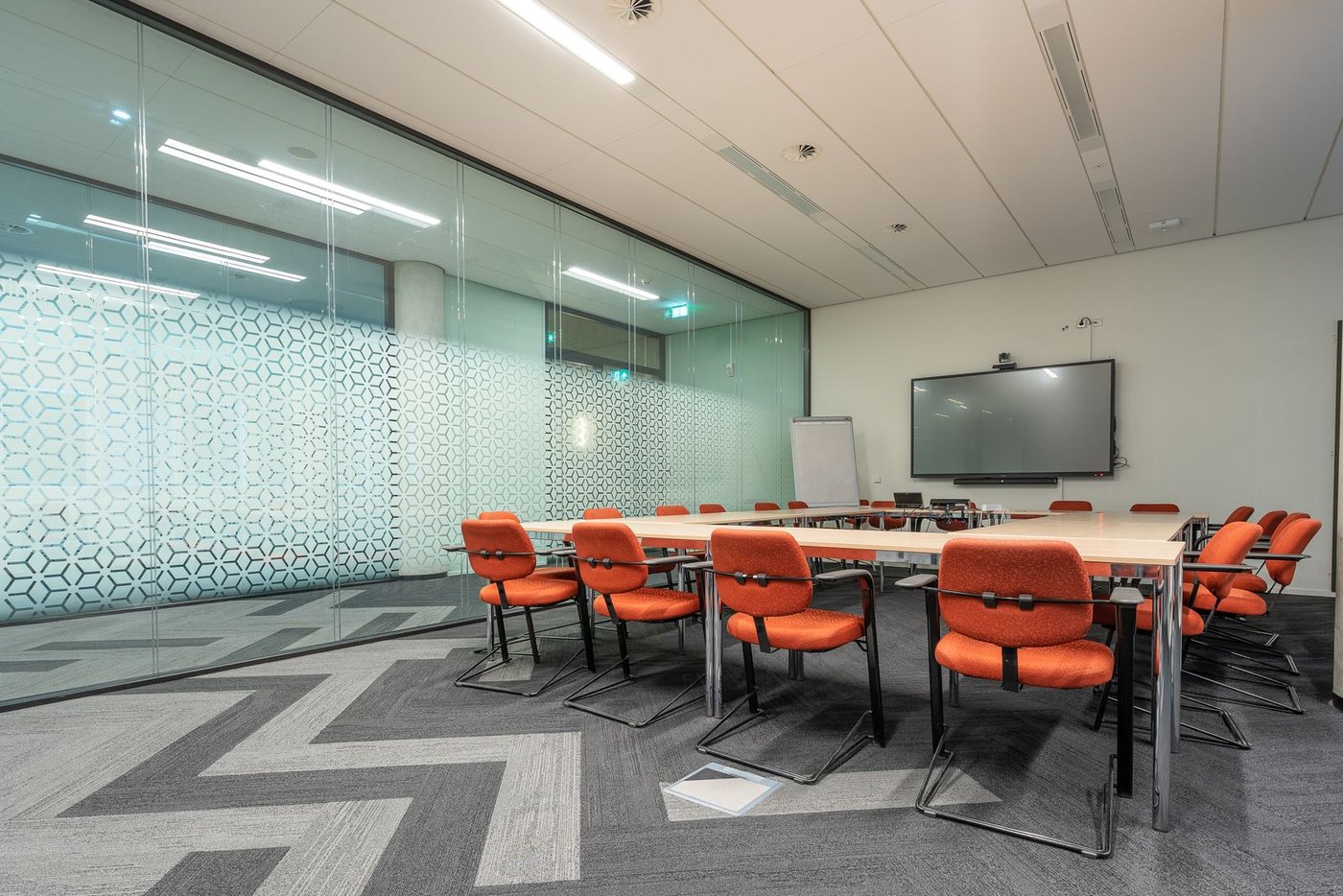

Visual privacy is cheaper: switchable smart glass frosts on demand for premium rooms, acid-etched glass gives permanent diffused privacy with full light, and patterned glass obscures at minimal cost. Many offices mix: clear glass on circulation walls, etched or smart glass on meeting rooms, manifesting strips for code compliance at full-height glazing.

A Typical Specification Stack

Doors: The Weakest Link, Itemized

• A swing glass door with a plain brush seal can leak 6-10 dB relative to the wall around it — the room is only as quiet as its worst opening.
• Automatic drop-down seals along the bottom edge recover most of the bottom-gap loss; they need a correctly prepared threshold, not carpet.
• Compression-sealed framed door systems beat brush seals for privacy-critical rooms, at the cost of visible frame lines.
• Hinge-side gaps matter as much as the bottom: a continuous gasket contact line all round the door leaf is the goal.
• Sliding barn-style doors are acoustically decorative — never specify one for a room that must contain conversation.

Manifestation and Safety Marking: The Code Items Everyone Forgets

Full-height glazing in circulation areas is required by most workplace and building codes to carry manifestation — visible markings that stop people walking into glass. The common pattern is two bands of frosted dots or lines, roughly at 850-1000 mm and 1400-1600 mm above finished floor. In doors, glazing must be tempered or laminated safety glass with the relevant certification, and side panels near door swings usually count as critical locations too. These are production-stage decisions: manifestation can be etched, printed or applied as frit bands before tempering, which is far cheaper and cleaner than site-applied film after handover.

Lab Ratings vs Field Reality

An Rw rating is measured in a laboratory between heavily insulated chambers; your fitout is not a laboratory. Field measurements on site typically land 3-5 dB below the lab number of the same partition, because flanking paths — floor slabs, ceiling voids, adjacent ducts — carry sound around the wall. That is why serious fitouts specify the field target (often written as DnT,A) rather than quoting lab figures, and why the retrofit checklist below starts with sealing, not glass.

1. Re-seal both faces of every partition perimeter with acoustic sealant, not cosmetic silicone beads.
2. Pack or replace hollow floor and ceiling tracks so panels land on solid material.
3. Upgrade the door: drop seal plus gasketed perimeter, or a compression-sealed door system.
4. Close the ceiling void — continue the partition or add a rated plenum barrier above the ceiling line.
5. Only then consider glass upgrades; swapping glass first is the expensive way to fix a seal problem.

Procurement Notes for Fitout Contractors

Order panels with hinge and patch cut-outs machined before tempering, gasket channels specified to your framing system, and manifestation included where required. For soundproof glass assemblies handling confidentiality, request the acoustic test report for the exact build-up — a generic datasheet for 'similar glass' is not the same document. Batch tall panels with your door leaves so edge work and tint match across the fitout.

We would rather quote two wall systems — one that meets the number and one that over-delivers — than sell thick glass into a partition that leaks at every joint.

Layout and Daylight Details That Make or Break a Fitout

• Align partition lines with the ceiling grid and facade mullions — a 150 mm offset reads as a drafting error for the whole floor.
• Use transom panels above 2.4 m rather than full-height glass everywhere: they cut glass cost and weight while keeping the sightlines open.
• Plan power and data before ordering — conduits run through floor tracks and posts, and retrofitting cable slots into tempered panels is impossible.
• Consider integral blinds inside double-glazed partitions for boardrooms: privacy on demand with nothing to clean and no cords.
• Keep solid walls for storage and screens; a floor of all-glass rooms confuses wayfinding and wastes the privacy budget.
