Shower Glass 101: Thickness, Styles and Hardware — A Specifier's Guide
6 mm or 10 mm? Frameless or semi-frameless? Clear, frosted or patterned? Everything a homeowner, contractor or hotel project manager should confirm before ordering shower enclosure glass.
- All shower glass must be tempered safety glass — thickness decides feel, span and hardware cost, not safety.
- 6 mm for framed and semi-frameless, 8 mm for residential frameless, 10 mm for wide doors and commercial installations.
- A 10 mm door leaf weighs 35-60 kg depending on width — hinge ratings, not looks, set the practical ceiling.
- Measure each opening at three widths after tiling is complete; out-of-plumb walls are the top cause of fit problems.
- Heat-soak testing is worth specifying for commercial installations to screen out the rare spontaneous-breakage risk in tempered glass.
Why the Right Glass Choice Matters in a Bathroom
A shower enclosure is the most heavily used glass in any home: daily thermal cycling, constant humidity, impact from doors and cleaning chemicals for a decade or more. Choosing the wrong thickness or finish does not just look off — it can mean door sag, hardware failure or a panel that will not meet local safety codes. All shower glass must be tempered safety glass; the variables are thickness, finish and configuration.
Thickness: 6 mm vs 8 mm vs 10 mm
All three are safe when properly tempered — thickness mostly decides feel, span and hardware budget:
6 mm is the international standard for framed and semi-frameless enclosures. It is lighter, cheaper and easier on hinges and rollers, and perfectly adequate when a frame or header supports the glass.
8 mm is the sweet spot for frameless doors and fixed panels in typical residential openings — a solid feel with hardware that is still widely available and affordable.

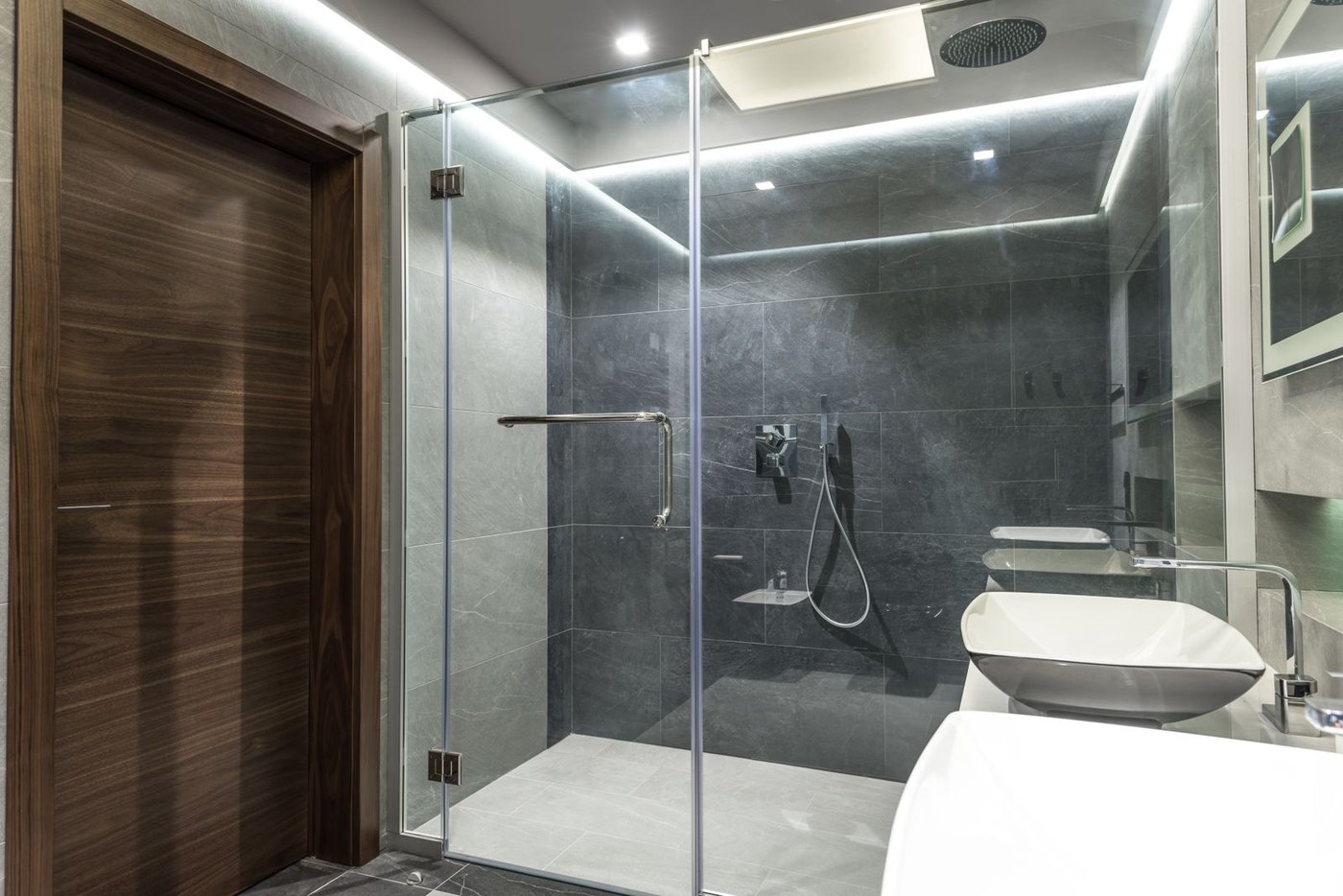

10 mm is specified for oversized frameless panels, tall doors and commercial gym or hotel spa installations where spans exceed what 8 mm hardware is rated for. Expect heavier-duty hinges, patches and floor anchors.
Beyond 10 mm the weight works against you: a 10 mm door leaf already weighs 45-60 kg, which is the practical ceiling for residential hinges.
Style Options, From Frameless to Framed
- Frameless: 8-10 mm glass, minimal hardware, open sightlines. The premium look; needs plumb walls (or shimming plans) and precise site measurements.
- Semi-frameless: 6-8 mm glass with slim frames on header or sides. Most of the open look at a mid-range price.
- Framed: 6 mm glass in full aluminum framing. Most economical and most forgiving of out-of-plumb walls; common in rental and hospitality projects.

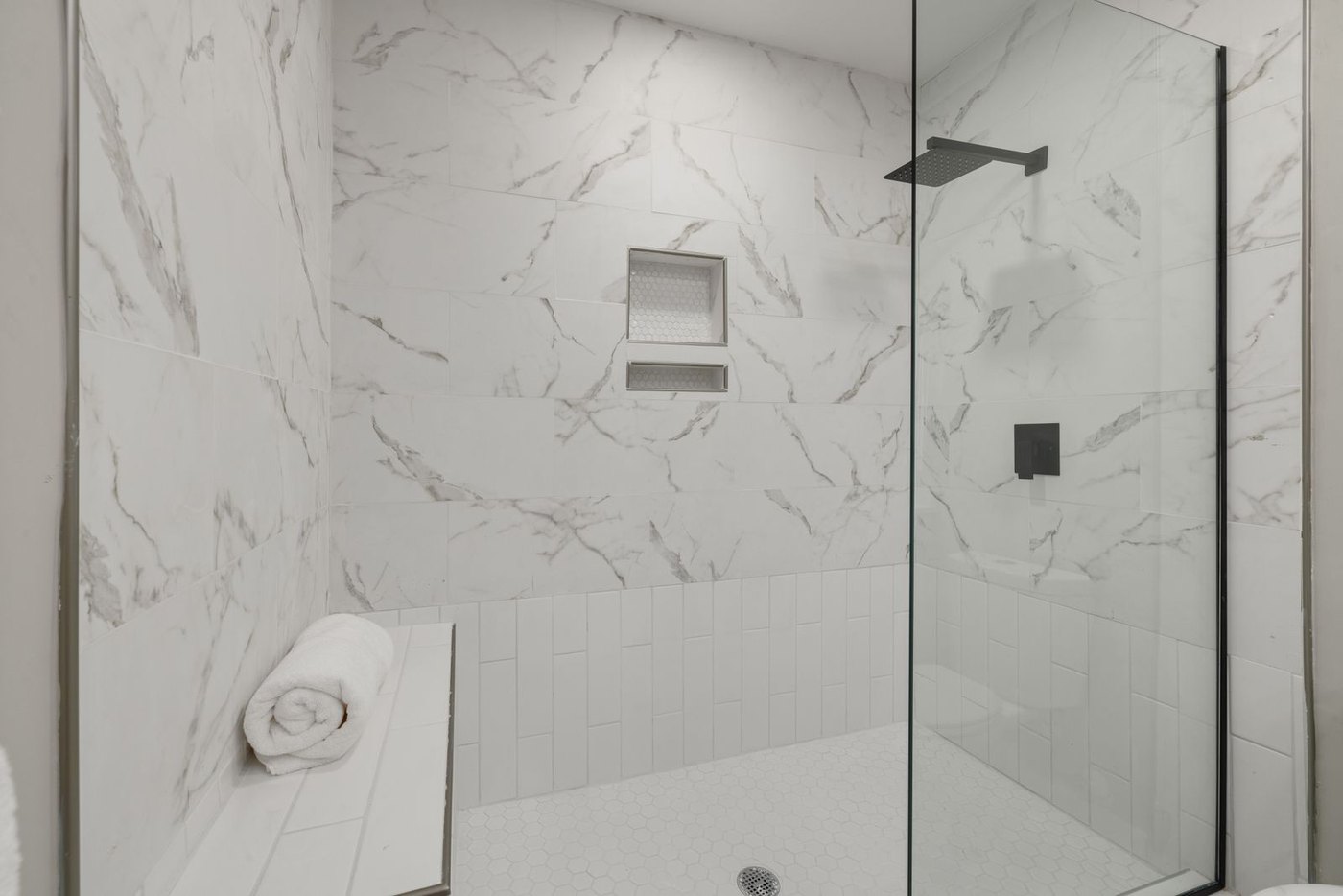

- Walk-in / wet room screens: single fixed panels, no door — trending strongly in European-style renovations. Usually 10 mm for freestanding stability.
Glass Finishes: More Than Just Clear
Clear tempered glass shows the tile work and keeps a small bathroom feeling open — it remains about 80% of what we ship. But it is not the only option:
Frosted or acid-etched glass delivers privacy with full light; ideal for family bathrooms shared by kids and adults.
Patterned glass — rain, fluted or linear textures — gives privacy and a design statement while staying easy to clean on the smooth side.
Tinted (bronze, grey) or low-iron glass tunes the look: tinted hides water spots, while low-iron glass removes the green edge tint for a truly neutral appearance in high-end projects.
Hardware and Coatings That Extend Service Life
Hardware finish (chrome, brushed nickel, matte black) gets the attention, but the specs that matter are: stainless or brass body hinges rated for the glass weight, sealed bottom rails with drip channels for framed systems, and wall profiles with adjustable tolerance for site variance. On the glass itself, a factory-applied easy-clean nanocoation reduces limescale adhesion dramatically — see our shower enclosure guide for coating details. Pair the enclosure with a matching bathroom mirror in copper-free quality to survive the same humid environment.
Five Checks Before You Order
- Measure three points of each opening width and the height — tile out-of-plumb is the number one cause of fit problems.
- Confirm hinge side, door swing arc and towel bar placement against fixtures and vanities.
- Decide glass thickness by panel span and door size, not by looks alone.
- Verify local code requires tempered (it almost always does) and whether laminated safety glass is mandated for some commercial projects.
- For hotels and gyms, specify 10 mm frameless or 8 mm semi-frameless with commercial-grade hardware — residential hardware fails fast under public use.
Working With a Manufacturer
We supply complete shower glass packages — tempered panels, cut-outs for hinges and handles, polished edges, optional nanocoating and matching mirrors — packed in export crates with foam interleaves. Custom sizes ship in 10-15 days typically. For wardrobe and closet glass doors in the same design language, see our wardrobe glass solutions.
Weight and Hardware: The Numbers Behind a Stable Door
Tempered glass weighs about 2.5 kg per square metre per millimetre of thickness, so a 700 x 2000 mm door leaf runs roughly 21 kg at 6 mm, 28 kg at 8 mm and 35 kg at 10 mm — before towel bars and handles. Hinges and rollers are rated in kilograms per pair, and underspecified hardware fails as sag, then as glass cracking at the hinge cut-out. The fix is boring and effective: match the hinge rating to the actual leaf weight including hardware, add a third hinge for wide leaves, and keep doors under about 900 mm wide at 10 mm.
| Thickness | 700 x 2000 mm door weight | Hardware implication |
|---|---|---|
| 6 mm | ~21 kg | Standard framed and semi-frameless hinges, sliding roller sets |
| 8 mm | ~28 kg | Residential frameless hinges rated 30-40 kg per pair |
| 10 mm | ~35 kg | Heavy-duty hinges or patch fittings; often three hinges |
Nickel Sulfide, Spontaneous Breakage and Heat Soak
Tempered glass carries a rare, well-documented failure mode: microscopic nickel-sulfide inclusions can expand over years and shatter a panel without any impact. The probability per panel is low, but a hotel with 400 shower panels multiplies it. Heat-soak testing holds tempered panels at around 290 degrees C for a hold period so that critical inclusions break in the factory instead of on a guest — panels that survive are dramatically less likely to fail in service. For residential work it is usually an optional upgrade; for hotel, gym and spa programs it is one of the cheapest insurance line items in the glazing budget.
Order after waterproofing and tiling are complete, not before. Final tile thickness routinely changes an opening by 10-25 mm, and 'roughly right' measurements from the framing stage are the most common reason panels arrive 15 mm out.
A Care Schedule That Keeps Glass New for a Decade
- Squeegee panels after showers when possible — most limescale is water left to dry on the glass.
- Clean monthly with a mild, non-abrasive cleaner; skip powders, scouring pads and razor blades entirely.
- Refresh the factory easy-clean nanocoating per its care guide instead of stripping it with harsh chemicals.
- Replace door seals and sweeps every few years — they are consumables, and a drip channel that seals properly protects the floor.
- Check hinge screws and roller tension annually; a sagging door caught early costs a turn of an Allen key, not a new panel.
What Ships in the Crate
A complete shower package from the factory includes tempered panels with hinge and handle cut-outs machined before tempering, polished edges on all exposed faces, optional easy-clean coating applied at line speed, and — for projects matching the bathroom out — copper-free mirrors and bathroom mirror panels crated with the enclosure. Panels are packed vertical with foam interleaves; glass arrives with batch certificates to EN 12150 or ANSI Z97.1 as your market requires. The one thing a crate cannot fix is a wrong measurement, which is why the three-point measuring rule above is the highest-value habit in this entire guide.
Measure three widths, confirm the hinge side, and ninety-nine percent of shower problems never exist. The other one percent is usually a wall that was never plumb to begin with.
Frequently Asked Questions
Is 6 mm shower glass safe?
Yes, when properly tempered — 6 mm meets ANSI Z97.1 and EN 12150 safety requirements. Thickness affects feel and span, not safety. Framed systems are designed around 6 mm glass.
What thickness should a frameless shower door be?
8 mm is the standard for residential frameless doors up to about 750 mm wide; 10 mm is used for wider or taller doors and commercial installations. Hinges must be rated for the resulting glass weight.
Does tempered shower glass need a safety film?
Tempered glass already qualifies as safety glass. Some North American specifiers add a film so that if the panel ever breaks, fragments stay bonded to the film instead of dropping into the tub — worth considering in family bathrooms.
How do I keep hard-water stains off shower glass?
Squeegee after use and clean monthly with a mild, non-abrasive cleaner. A factory-applied easy-clean nanocoating makes limescale much easier to remove and extends the interval between cleanings.
Can you match an odd-sized opening?
Yes — all our shower panels are cut to order with hinge cut-outs and edge polish before tempering. Send opening dimensions and we return a cut list for confirmation.
Do you supply hinges, handles and seals with the glass?
Yes — hinge, patch and handle sets rated to the actual panel weight, in chrome, brushed nickel or matte black, ship crated with the glass. Send your finish and the door weight and we confirm the hardware set in the quote rather than leaving it to guesswork on site.
What certifications should shower glass carry?
Tempered panels should be certified to EN 12150 for European markets or ANSI Z97.1 for North America, with AS/NZS 2208 for Australia and New Zealand. Batch certificates ship with every order, and heat-soak test documentation is available for commercial projects that specify it.
How thick can a glass shower panel go for a spa or gym?
Commercial walk-in screens and tall panels typically run 10 mm, sometimes 12 mm for freestanding stability at height. Above that, weight works against hardware and floor fixings — a better path is a steel-supported or laminated build designed with the enclosure supplier rather than simply thicker glass.
The Bottom Line
Send your opening dimensions and style preference — we will quote the full glass package, hardware included, within 24 hours.
