Aquarium Glass Guide: Low Iron Panels, Thickness by Tank Height and Export Crating

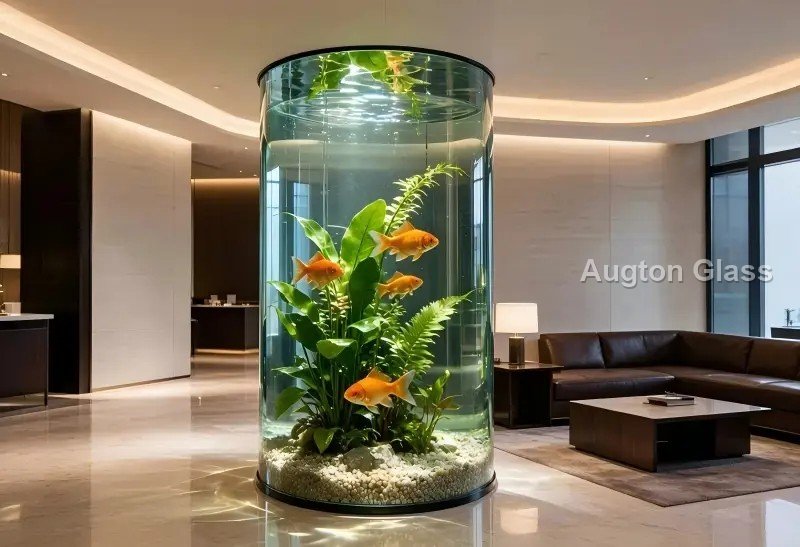

Why Low Iron Glass for Aquariums

Standard float glass contains iron, which tints the edge and body a green-teal hue. In a window or facade nobody notices; in an aquarium the water column magnifies it — a large tank built from standard glass shows a distinctly green cast against white sand, coral and bright fish.

Low iron float removes that tint. The glass is visibly clearer face-on and nearly colorless at the edges, which is why every serious display tank — home reef, retail aquarium, public ocean-view panel — is specified in low iron. The clarity difference is the first thing a client sees, and it is visible from across the room.

Our aquarium glass is cut from both high-quality clear float and low iron glass, so budget builds can use standard clear for rear and structural panels while reserving low iron for the display faces where clarity is seen.

How Thickness Is Selected: Water Pressure, Not Guesswork

Water pressure grows with depth alone — a tank twice as tall carries roughly four times the load at its base. That is why panel thickness scales with tank height, not with length or volume. A 300 mm shallow breeder tank is comfortable in 6 mm glass; a 600 mm community tank needs around 12 mm; a 1 m display tank moves to 19 mm; 1.5 m and beyond enters 25 mm-plus territory, where engineering review becomes mandatory rather than optional.

Length matters differently: long spans flex, and flex is what actually cracks tanks. Wide panels either move up a thickness step, get tempered for added strength, or are engineered with bracing and laminated construction depending on the design.

The professional answer is simple: send the tank dimensions — height, length, width, water line — and we return the thickness and panel spec confirmed by engineering review for that specific tank. Final thickness is always verified per project, never guessed from a table.

Braced vs Frameless Tank Construction

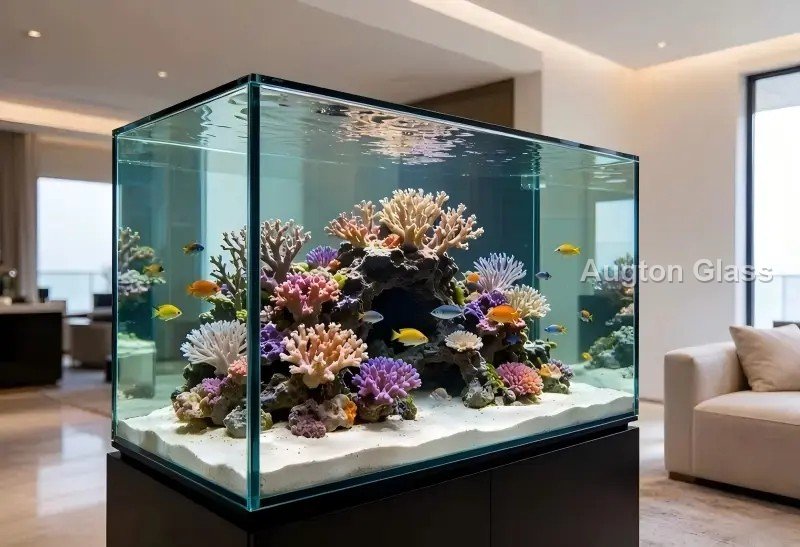

Braced tanks use top and bottom rim braces (center or euro bracing) to stiffen the long panels — the economical standard for medium tanks. Bracing adds a little visual interruption at the waterline but saves real money on glass thickness.

Frameless rimless tanks eliminate braces for the clean planted-tank look. The trade is glass: rimless designs demand thicker panels and precise edge work, because the corners and silicone seams carry the entire load without help. This is exactly where bright-polished, perfectly square edges pay for themselves — the joint line is visible.

For public aquariums and oversized ocean-view panels, construction moves to laminated and tempered combinations, sometimes with structural silicone fins. These are engineered per project with our processing partners; the aquarium glass panel kit is one input to a full glazing package.

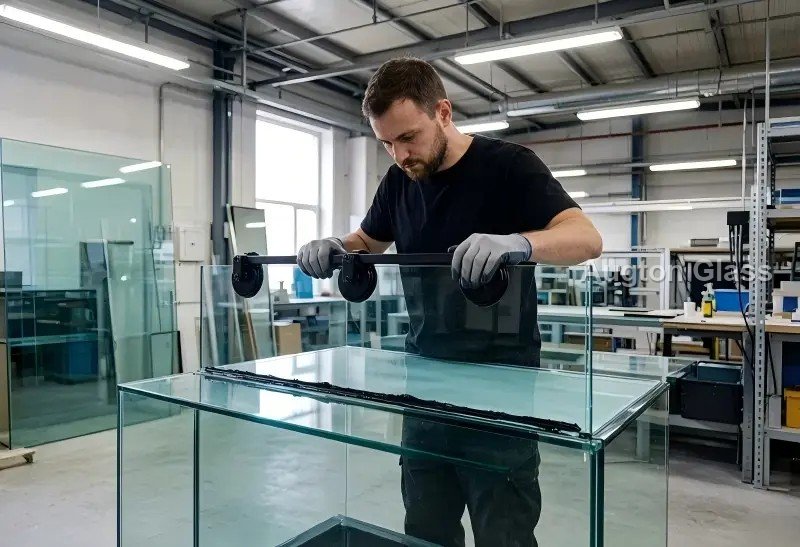

Edgework and Fabrication: What a Panel Kit Includes

Every display edge in a frameless tank is a finished surface, so edgework choice is visible forever. We supply all three workhorse finishes: flat grinded (safe, functional, slightly hazy), flat polished (ground then polished — clean and bright), and bright polished (full mirror gloss for rimless display tanks).

A ready-to-assemble kit from our line includes: panels cut to your dimensions with the agreed edge finish on display edges, drilled holes for overflow boxes, filtration plumbing and cable management, and optional screen-printed backgrounds on the rear panel. Corners arrive square and arrissed — sharp arris removal matters both for silicone bonding and for the hands that assemble the tank.

For retail and client-facing builds, screen printed glass backgrounds can carry logos or scenery; pairing the rear panel with low iron glass display faces gives the full clarity upgrade at a controlled cost.

Tempered, Laminated and Specialty Processing

Tempering roughly multiplies a panel’s strength, which solves two aquarium problems: long-span flex in wide tanks, and safety in public or commercial settings where breakage has consequences. The trade-offs are standard for the trade — tempered panels cannot be cut or drilled afterward, so every hole is placed before tempering, and breakage is total rather than a crack.

Lamination adds a security and containment layer: if a laminated display panel ever fails, the interlayer holds the glass and drains happen slowly rather than catastrophically. Public aquariums and overhead or vertical display glazing typically specify laminated construction.

The processing chain is what separates a glass supplier from a tank supplier: cutting, edgework, drilling, tempering, lamination and screen printing all happen in one controlled line, so tolerances accumulate correctly instead of drifting between vendors.

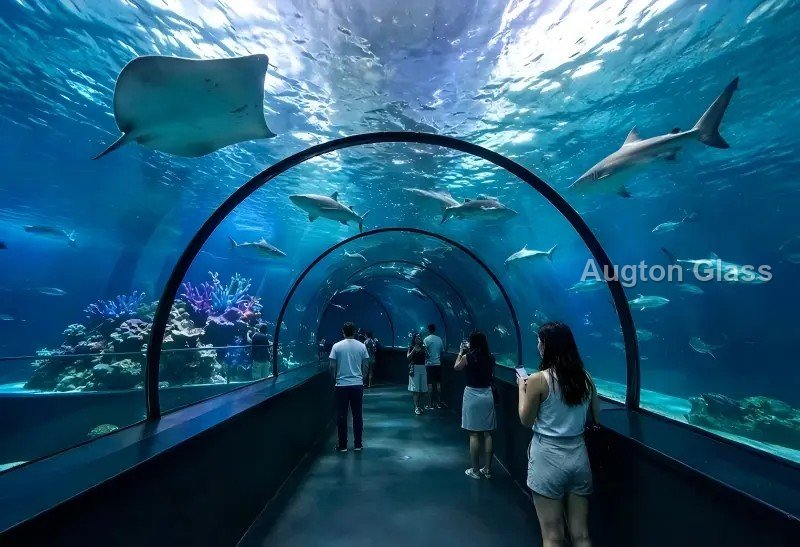

From Home Tanks to Public Ocean-View Panels

The product range spans the whole market: home aquarium kits in standard sizes, retail and office feature tanks, restaurant and hotel displays, through to public aquarium panels measured in meters. The engineering input scales with it — but the customer conversation starts the same way: dimensions, water line, and where the tank will stand.

Public and commercial projects add structural considerations: floor loading, service access, and often a full glazing package that mixes aquarium panels with architectural glass for the surrounding space. We quote the panel kit and coordinate processing so the tank builder receives panels that assemble without rework.

If the project also needs display furniture — glass table tops for the lobby, glass fence systems around the surrounding walkways — one container with one packing plan beats three suppliers and three customs entries.

Crating and Shipping Tank Panels

Aquarium panels ship in purpose-built crates: panels separated by interleaf and foam edge protectors, standing at a slight angle on engineered supports so no sheet bears a load, and braced against shifting in all axes. Holes are taped over to keep crumb and moisture out of drilled channels.

Each crate is marked with panel IDs matching the tank drawing — bottom, front, rear, sides, brace — so the assembly team unpacks directly into layout order. For kits with mixed processing (tempered fronts, laminated bases, printed rear), packing is sorted by panel position rather than by process lot.

Full containers ship with the crates braced upright; LCL shipments move in our standard seaworthy crating with additional route protection. Every order is insured for transit — ask for the packing photos before loading; we send them routinely.
