Bullet-Resistant and Security Glazing: Ratings and Real-World Use

First, the Rating Alphabet

Bullet resistance is rated by testing standards — UL 752 (North America), EN 1063 (Europe, with BR classes for rifles and FB for handguns) — against specific ammunition at specific velocities. There is no single "bulletproof" product: a level that stops 9 mm handguns is transparent to a rifle round, and every rating step adds thickness, weight and cost. Specifying starts with a threat assessment, not a catalog.

How the Glass Stops a Bullet

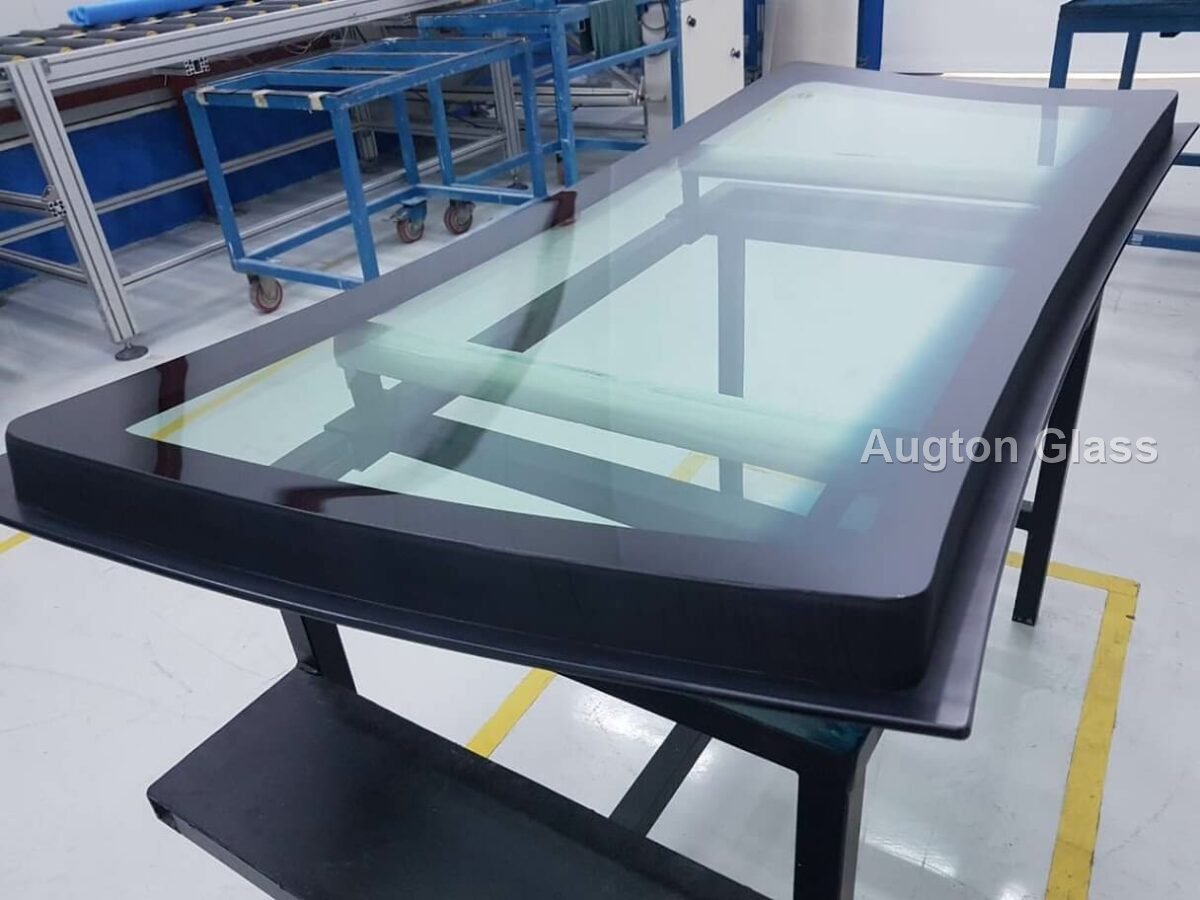

Bullet-resistant glazing is always laminated: multiple glass plies bonded with tough interlayers, sometimes with polycarbonate sheets. The glass front layers deform and absorb energy; interlayers stretch and hold; the stack sacrifices itself while the protected side stays intact. Spall behavior is the design fork: all-glass builds spall (fragments fly off the safe side), while glass-polycarbonate hybrids contain spall — required where tellers stand directly behind the glass.

Common Build-Ups and What They Defend

The SGP Advantage

Ionoplast (SGP) interlayers are roughly five times stiffer than PVB, so security laminates resist pry attacks and multiple hits with less thickness. For attack-resistant rather than bullet-rated glazing — smash-and-grab delay, jewelry vitrines, safe-deposit viewing — SGP laminated glass is usually the most efficient answer, and it partners with tempered-laminated glass elsewhere in the same project where lighter protection suffices.

Real-World Specification Notes

• Frames matter as much as glass — a rated panel in an unrated frame fails at the anchorage; test the assembly, not the pane.
• Optical quality: thick laminates distort more; demanding sightlines (banks, tolls) specify optical-grade builds.
• Weight: rifle-level panels run 60-100 kg/m² — structure and hardware must be engineered for it.
• Certification should name the testing lab and shot pattern; we ship test reports with every rated batch.
• Complementary products (attack-resistant laminates, bullet-resistant assemblies) can share one production batch for consistent optics across a counter line.

Reading a Test Report Before You Sign

1. Standard and level named exactly — UL 752 with the level and shot count, or EN 1063 with the BR (rifle) or FB (handgun) class.
2. Ammunition type, bullet mass and velocity as tested — compare these against your threat assessment, not against a catalog headline.
3. Shot pattern: number of rounds, spacing between hits, and whether edge shots at the frame line are included.
4. Spall result: fragments contained or not — the decisive line for staffed positions.
5. Testing laboratory named, with accreditation and report number; a certificate without a lab is a brochure.
6. Assembly scope: glass plus frame tested together — rated glass in an unrated frame fails at the anchorage, not at the glass.

Weight, Structure and Installation Planning

Rifle-level panels run 60-100 kg/m² — a single 1200 x 2000 mm lite can exceed 150 kg, and a transaction counter with four such openings is a structural line item, not a glazing detail. Everything downstream is engineered around those numbers rather than discovered on installation day.

• Rebates and glazing beds sized to the tested assembly detail, with setting blocks and approved gaskets — improvisation voids the rating.
• Deflection limits checked on the surrounding structure: flexing frames unload impact energy into the glass edge.
• Transaction hardware (pass-through drawers, trays, voice ports) specified to the same threat level as the glazing.
• A lifting plan: rated panels move on vacuum lifters or by teams, and an edge chip during handling is a rejection criterion, not a touch-up.

Lifecycle: Inspection, Cleaning and Replacement

Security glazing is low-maintenance but not no-maintenance. Inspect edges and interlayers annually for delamination whitening — caught early, a re-sealed edge stops moisture ingress; left alone it spreads and a 38 mm panel becomes a scheduled replacement. Clean the glass faces with mild soap and water; wherever polycarbonate forms the protected inner face, use only PC-safe cleaners, because ammonia-based glass sprays craze the surface over months. Keep a serial-to-test-report register in the building file so any replacement panel matches the original rating exactly — SGP laminated glass and tempered-laminated glass elements from the original build can then be reproduced against stored recipes instead of re-engineered.

Choosing Between the Standards

Projects straddling North American and European markets always ask which standard to follow. The honest answer: they test different things and do not translate cleanly. UL 752 levels are defined by specific cartridges, velocities and shot counts, with a spall/no-spall suffix; EN 1063 BR/FB classes define ammunition classes and leave spall behavior to a separate designation. A project spec should name one primary standard, then cross-reference the other for information only — dual-certified paperwork for a single build-up invites arguments at customs and at insurance review alike. What travels between the two systems is the logic, not the numbers: define the threat, add margin for the unexpected, and let the rating follow the assessment. Cash rooms, embassy compounds and jewelry vitrines each sit at a genuinely different point on that curve, which is why bulletproof glass is quoted from a threat schedule rather than from a price list.
