Unitized Curtain Wall
QR
Unitized curtain wall systems are fully assembled and glazed in our factory, then shipped to site and lifted directly into place floor by floor. Factory assembly delivers superior quality control, dramatically faster installation and excellent airtightness — the preferred glazing solution for high-rise towers and large commercial projects with tight schedules.
Solution Overview

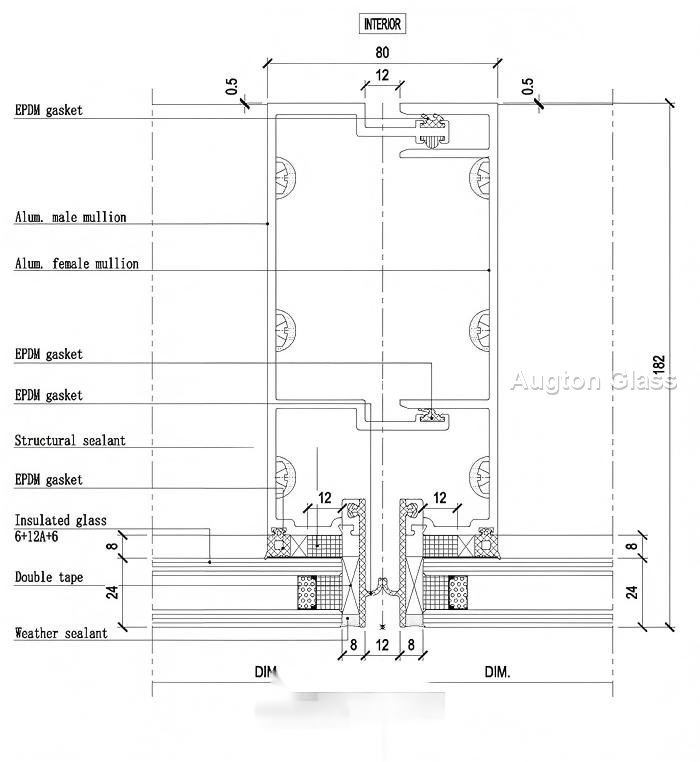

Each unitized panel is composed of a vision zone and spandrel zone, glazed with insulated Low-E units, laminated or tempered safety glass, and sealed with weather-tight gaskets before leaving the factory. Panels connect to the building through interlocking male-female joints with a stepped pressure-equalization chamber and an internal drainage system that resists rain penetration and air infiltration — even under driving wind loads at high altitude.

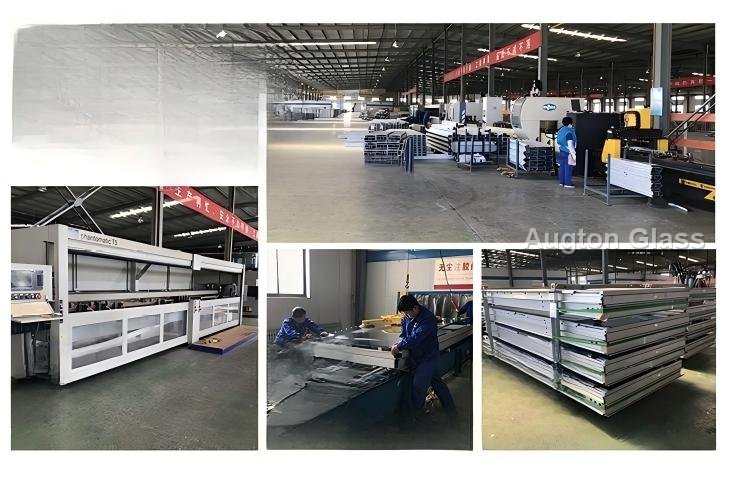

Because up to 90% of the work is completed indoors, on-site labor, scaffolding time and weather risk are all minimized. Installation can proceed floor by floor in parallel with the main structure, shortening the overall construction program. AUGTON GLASS supplies project-specific shop drawings, glass and panel fabrication, and complete export packaging for curtain wall contractors worldwide.
Key Features
- Factory assembly with strict QC on every unit
- Interlocking joints with internal drainage — superior air and water tightness
- Floor-by-floor installation up to 90% faster than stick systems
- Integrates Low-E, laminated and tempered insulated glazing
- Excellent seismic and inter-floor displacement performance
- Project-specific shop drawings and export packaging
