Oversized Glass Fins
QR
Oversized glass fins are structural glass ribs that support façades, canopies and all-glass walls in place of steel — jumbo laminated sections up to 18 m long and 700+ mm deep that carry wind and dead loads while staying completely transparent.
Solution Overview
Fins are built from 3 to 5 plies of heat-soak tested low-iron glass laminated with stiff SGP ionoplast interlayers, so the section keeps bending stiffness even if one ply is damaged. Typical builds are 3×12 mm for 6–9 m spans and 5×12 mm beyond, with silicone-bonded connection plates pre-fitted at splice nodes.
AUGTON GLASS is one of few Chinese processors able to temper, laminate and edge-polish jumbo fins in-house, with vertical handling that avoids optical distortion. We supply fins with splice hardware, stainless base shoes and project-specific load documentation, packed in steel-framed crates for ocean freight.
Key Features
- Jumbo sections to 18 m in a single piece
- 3–5 ply low-iron laminate with stiff SGP ionoplast interlayers
- Heat-soak tested; load documentation per project

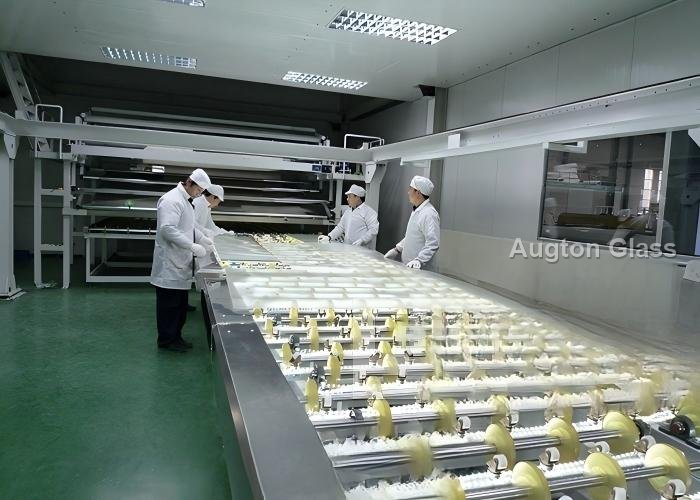

- In-house tempering, laminating and edge polishing
- Vertical handling avoids optical distortion
- Steel-framed export crating for ocean freight
