An Insulated Glass Unit Is Only as Good as Its Weakest Detail: 10 Things Buyers Overlook
Two panes and a spacer look simple — but fogging, spacer choice, gas fill and edge seals quietly decide whether an IGU lasts 25 years or five. The ten details experienced buyers check before signing.
- IGU quality is invisible on installation day — it shows up in year three as fogging and year eight as seal failure.
- Warm-edge spacers and a machine-applied butyl primary seal remove the two most common failure modes for a minor cost adder.
- Cavity width peaks at 12-16 mm for air or argon — wider cavities convect and perform worse.
- Low-E coating position follows climate: surface #2 for cooling loads, surface #3 for heating loads.
- Verify with batch-tied test reports (EN 1279, ASTM E2190) and cross-section photos, not a generic certificate.
Why IGU Quality Is Invisible Until It Isn't
An insulated glass unit performs perfectly on installation day regardless of quality. The differences appear in year three (fogging), year eight (spacer corrosion) or year twelve (seal failure) — long after the invoice is paid. That lag is why experienced buyers audit details instead of judging samples.
The Ten Details
1. The Spacer
Aluminum spacers are cheap but conduct heat straight out of the unit's edge, creating the cold stripe where condensation forms. Warm-edge spacers (stainless composite or polymer) cut edge heat loss substantially and lengthen seal life. Ask what's in the quote.
2. Desiccant Fill
Molecular sieve inside the spacer absorbs the moisture sealed into the cavity at production. Underfilled spacers mean early fogging. It costs almost nothing to do right and is invisible in a photo.
3. Primary Seal Quality
The butyl primary seal does most of the moisture-vapor blocking. Applied by machine with consistent coverage — or skipped to save seconds — makes a decade of difference.
4. Secondary Seal Chemistry
Silicone secondary seals resist UV and stay elastic; polysulfide suits shaded frames. The wrong chemistry for the exposure voids the warranty quietly.
5. Gas Fill and Verification
Argon fill improves U-value meaningfully, but only if the fill is verified (gas chromatograph sampling) and the unit is dual-sealed to hold it. "Argon-filled" with a single seal leaks out within a few years.
6. Coating Position
Low-E on the wrong surface wastes performance. Cooling climates want the coating on surface #2, heating climates on #3. A supplier who doesn't ask your climate is guessing.
7. Edge Deletion on Coated Glass
Coatings must be stripped 2-3 mm along the edge so the seal bonds to glass, not metal. Missed edge deletion is the classic cause of slow creeping fog lines.
8. Glass Washing Water Quality
Washing with hard or recycled water leaves mineral dust inside the cavity forever. Deionized water is the standard in serious IGU plants.
9. Cavity Width Discipline
Cavity performance peaks around 12-16 mm for air and argon; beyond that convection currents actually worsen performance. Bigger is not better.
10. Certification Traceability
Ask for test reports (EN 1279, ASTM E2190, IGCC/IGMA as applicable) tied to the production batch — not a generic certificate from 2015. Every batch from our line ships with traceable documentation.
The Cheap Detail That Costs the Most
If forced to rank: the spacer and primary seal cause the majority of field failures. A warm-edge spacer upgrade typically adds a low single-digit percentage to unit cost and removes the two most common failure modes at once. It is the best value-for-money line in the whole specification.
How to Verify Before Shipment
- Request cross-section photos of actual production units — spacer, butyl line, secondary seal depth visible.
- Ask for fogging test (EN 1279-2) results per production family, not just per product type.
- For acoustic units — the same build quality rules apply to soundproof glazing — request Rw test data on the exact build-up.
- Order a sample unit for destructive inspection if the project volume justifies it: we supply samples for exactly this purpose.
Build-Up Anatomy and the Performance Numbers
Numbers on a datasheet only transfer to a building if the details in the ten-point list above are real — the spacer, seals, gas and coating position. A perfect build-up with a skipped butyl line is a fogging schedule, not a window.
| Configuration | Typical U-value (W/m²K) | Notes |
|---|---|---|
| Single glass 6 mm | ~5.8 | No cavity — the baseline everything beats |
| Double clear 4-12-4, air | ~2.8-3.0 | The historical default |
| Double low-E 4-12-4, argon | ~1.1-1.4 | The volume standard for new work |
| Double low-E 4-16-4, argon | ~1.1 | Slightly better at the 16 mm optimum |
| Triple low-E 4-12-12-4, argon | ~0.6-0.8 | Cold climates and passive-style builds |
| Acoustic laminated double | Build-up dependent | Rw gains come from laminated glass asymmetry and mass |
RFQ Checklist: What to Put in the Specification
- Dimensions and tolerances per unit: state cut size tolerance (typically ±1 mm) and whether units sit in rebates that punish oversize.
- Build-up written out: glass thicknesses, coating glass and surface number, cavity width(s), gas and fill percentage target (typically ≥90% argon).
- Spacer type: warm-edge model named explicitly, with bent corners (not corner keys) preferred for seal integrity.
- Seal system: butyl primary plus silicone or polysulfide secondary, with secondary depth matched to exposure.
- Performance targets: U-value and, where relevant, Rw for soundproof glazing — stated on the exact build-up, not a family average.
- Certification: EN 1279 or ASTM E2190 reports tied to the production batch, plus IGCC/IGMA listing where the market requires it.

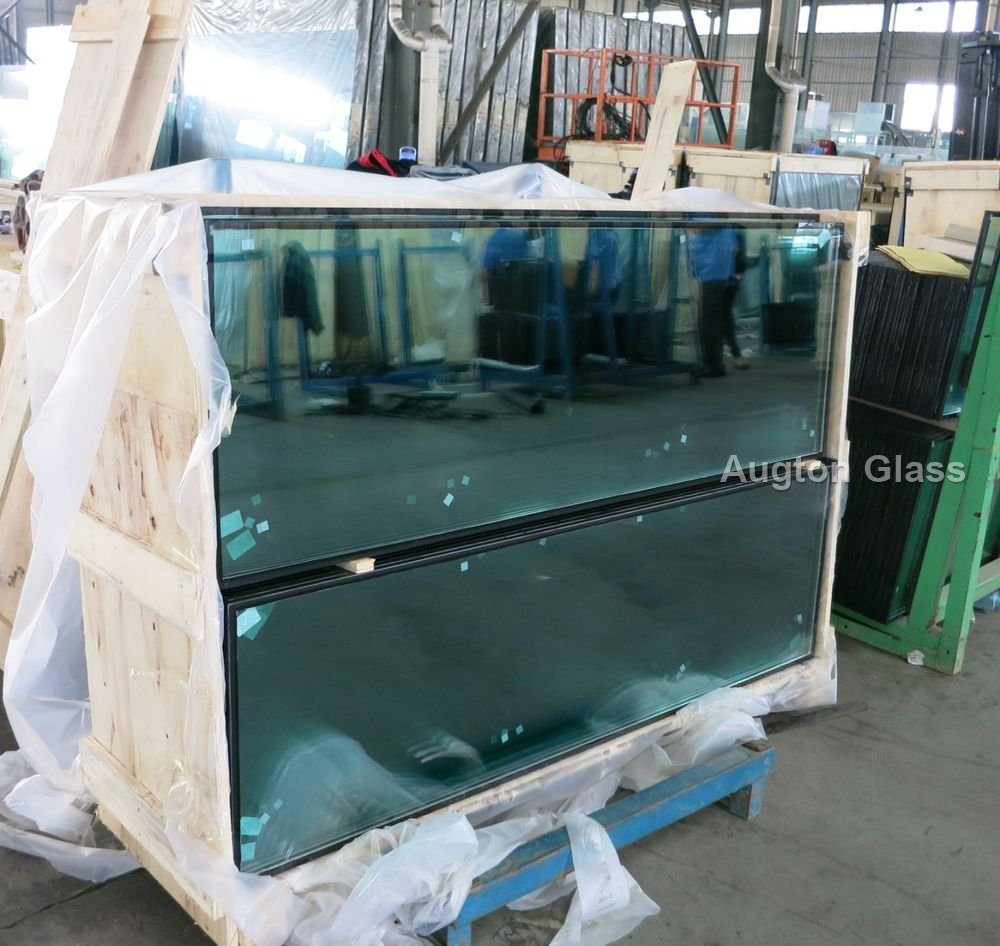

- Packing: vertical crating, edge protection, interleaves — state it, because IGU edges are where transport damage starts.
Transport, Storage and Site Handling
- Units travel and store vertical, never flat — flat storage bends units and loads seal edges.
- A-frames or stillages with soft edge liners; straps never tighten directly against glass or spacer lines.
- Keep units out of direct sun while packed: solar heat buildup inside sealed crates stresses coatings and seals.
- Glazing blocks matter on site: setting blocks carry the unit's weight, and location spacers stop glass walking in the rebate — both are part of seal longevity.
- Allow silicone to cure before exposing the unit to weather per the sealant datasheet; a rain-soaked fresh seal is a future leak.
- On arrival, inspect corners first — corner impact is the dominant transport failure and easiest to catch before installation hides it.
Before signing for a container of IGUs, open one crate at random and check: spacer corners, butyl line continuity at the visible edge, and coating position against your spec sheet. Ten minutes at the port beats a year of correspondence about fogging — and we supply samples with the same build for exactly this comparison.
Certification: Factory Records Beat Framed Certificates
Certificates decorate walls; production records predict field performance. When auditing an IGU supplier, ask for the documents that tie a certificate to your actual units: batch numbers on the frost-point or fogging test (EN 1279-2) results, gas fill verification logs if argon is specified, and the calibration records behind the filling machine. A plant that tests per production family and retains those records can answer "what was tested with my batch" — a plant with a single framed EN 1279 certificate from years ago cannot.
Third-party schemes (EN 1279 in Europe, ASTM E2190 in North America, IGCC/IGMA certification programs) exist because IGU failures are invisible at delivery, so the industry standardizes on audited process evidence rather than inspection alone. The buyer's leverage is simple: make batch-tied documentation a line item in the purchase order, not a hope. Suppliers with real quality systems welcome it — the question itself sorts the market faster than any factory visit.
Frequently Asked Questions
Why is there condensation inside my double glazing?
Seal failure — moisture-laden air has entered the cavity and the desiccant is saturated. The unit needs replacement; the cause is usually a poor primary seal, wrong seal chemistry or missed edge deletion on coated glass.
Is argon fill worth the cost?
Yes, when the unit is dual-sealed and the fill is verified: argon lowers U-value by roughly 0.2-0.3 W/m²K versus air. Without seal quality, the gas migrates out and the benefit disappears.
What spacer should I specify?
Warm-edge (stainless composite or polymer) for all new work. The upgrade cost is minor and it cuts condensation at the glass edge while extending seal life.
How long should a quality IGU last?
A properly built unit with dual seals and warm-edge spacer is engineered for 20-30 years of service. Budget units commonly fail within 5-10 years, first as corner fogging.
Can you build IGUs with laminated panes?
Yes — laminated-outside, laminated-inside or both, common for acoustic and security requirements. Build-up and certification data are provided per configuration.
What edge seal depth should a quality IGU have?
Secondary seal depth scales with unit size and rating — as a rule of thumb, single-sealed budget units run thin 5-8 mm lines while dual-sealed quality units show a continuous butyl line plus a deeper silicone or polysulfide body. If the visible edge seal looks like a thin painted line, ask for a cross-section photo before ordering.
Can IGUs be made in shapes, arches or oversized panels?
Yes — shaped units (arches, trapezoids, raked heads) and large-format units are standard factory work, though shapes and very large sizes call for build-up review: spacer bending, gas fill and seal depth all adapt to geometry. Send the shape drawing with dimensions for confirmation.
What happens if units arrive damaged?
Document with photos at unloading — crate label visible — and file within the carrier claim window. Replacement units are produced against the original batch records, so build-up, spacer and gas match what was ordered. This is another reason the specification in the RFQ checklist matters: replacements reproduce it.
The Bottom Line
