Curved Glass in Architecture: Bending, Applications and Limits
Curved glass turns corners, wraps lobbies and tops canopies — but every bend has physics and cost rules. How bending works, what it costs, and when to choose curved vs segmented.
- Thermal bending slumps glass near 600 °C over a mold; cold bending forces flat glass inside the frame — different physics, different budgets.
- Specify radius, arc length (or angle) and height — chord-only drawings cause most factory queries.
- Tighter radius and thicker glass fight springback; let the frame carry the stiffness instead.
- Bends stack with tempering, lamination and IGU builds — each added process adds tolerance stack-up.
- Molds are catalogued and stored per project: repeat panels skip the tooling cost and most of the lead time.
How Glass Actually Gets Curved
Flat glass bends in one of two ways. Thermal bending: the sheet heats to ~600 °C in a bending furnace, slumps or presses into shape over a mold, then anneals or tempers in the same cycle. Cold bending: flat glass is mechanically forced into a curve at installation, held by the frame — cheaper, but limited to gentle radii and permanent frame stress. Most architectural work — curved glass facades, revolving doors, canopy glazing — uses thermal bending for its stability and optical quality.
The Numbers That Define a Bend
- Radius: practical minimums scale with thickness — roughly 300-500 mm for 6 mm glass, growing with thickness; tight radii with thick glass fight springback.
- Arc vs chord: drawings must define radius and arc length, not just chord width — the mold is made from radius and angle.
- Height: bending furnaces cap panel height (commonly 2.4-3.6 m depending on machine); taller curved panels may need lamination from two curved lites.
- Tolerances: expect ±2-3 mm on arc geometry; site measurements must precede mold making, not follow it.
Where Curved Glass Earns Its Premium

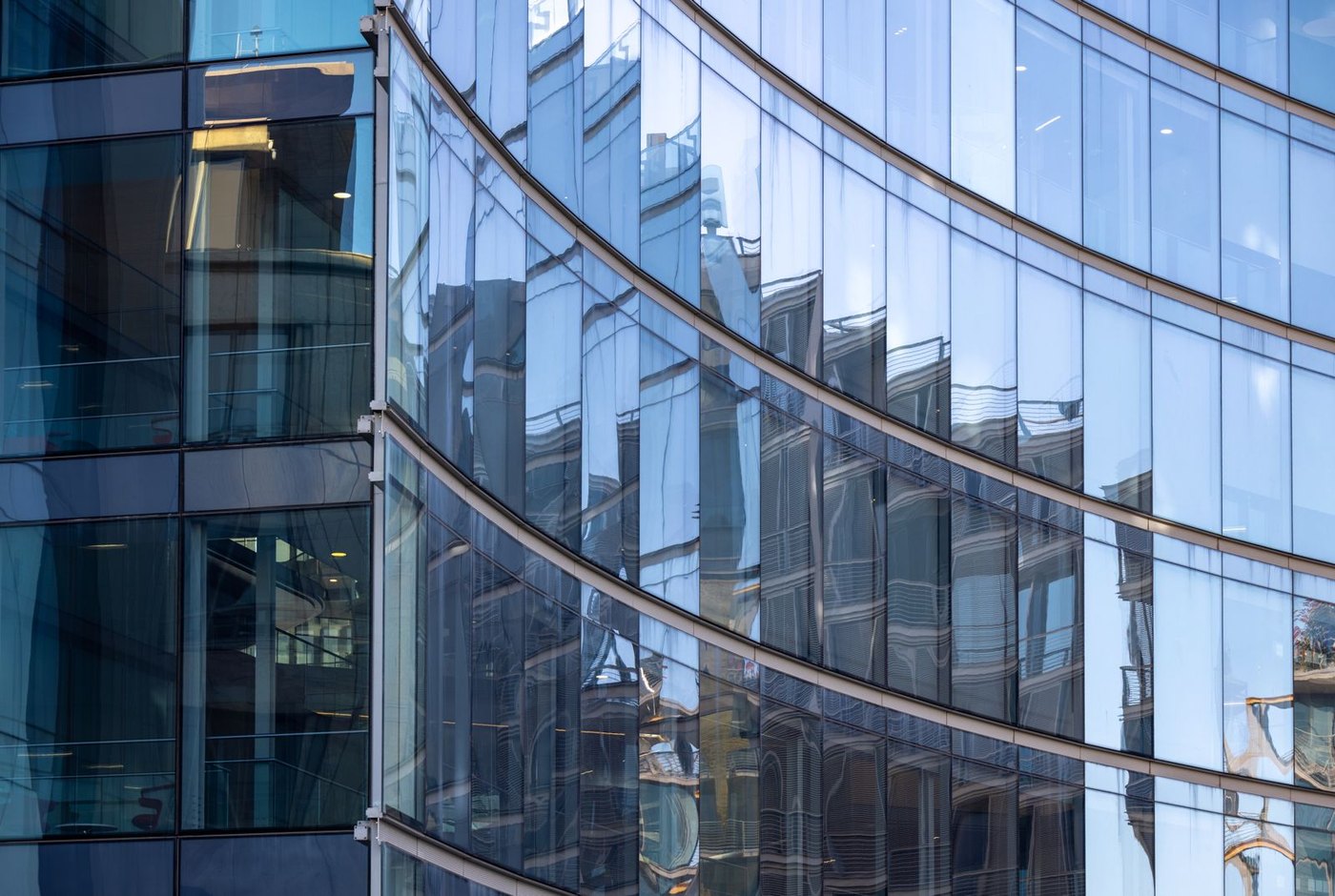

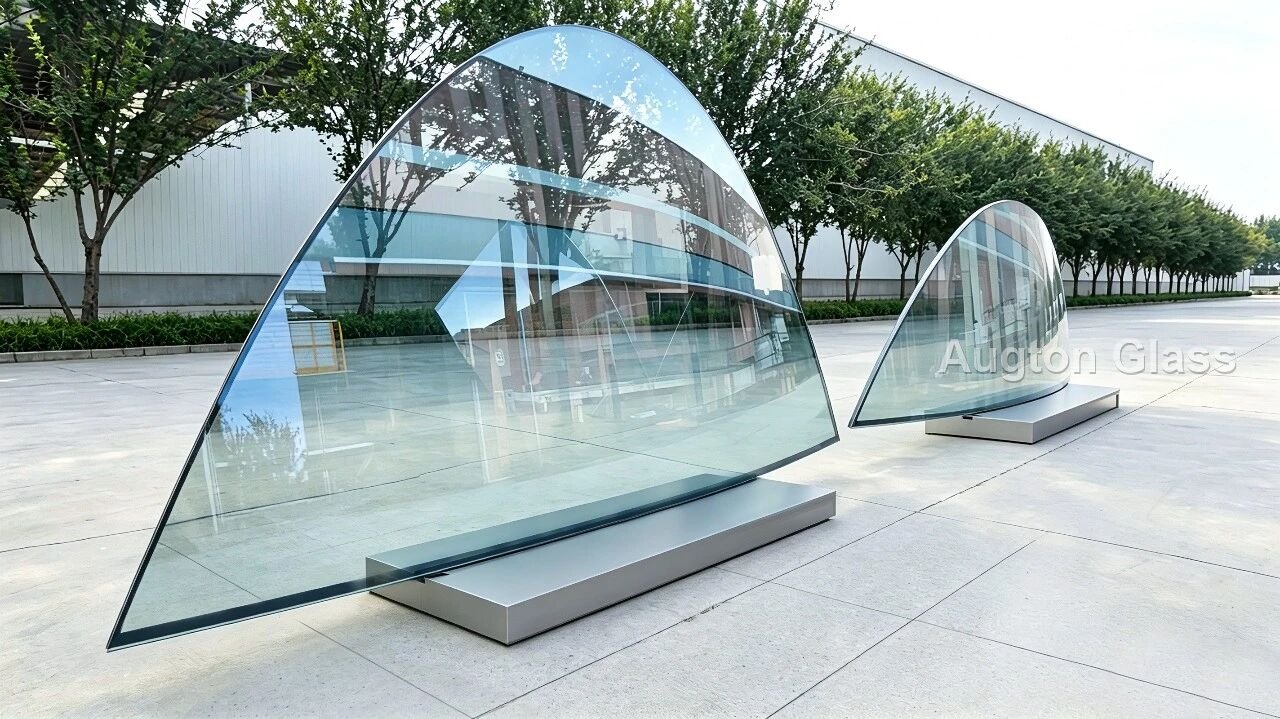

Revolving doors and curved shop entrances keep sightlines open around the corner. Glass canopies with curved edge profiles shed water elegantly without visible structure. Facade corners, balcony wraps and observation floors use curved IGUs; interior partitions and shower screens go curved for soft geometry. In every case the alternative — segmented flat panels with visible corner joints — changes the design language entirely, which is the real reason projects pay the bending premium.
Curved Plus Everything Else
Curving stacks with other processes: curved tempered glass for safety locations, curved laminated builds for overhead glazing, curved insulated glass units for conditioned facades, and curved printed or coated panels with the coating applied before bending. Each added process adds tolerance stack-up — the earlier the bending fabricator joins the design conversation, the fewer expensive surprises later.
Design Rules of Thumb
- Prefer single-axis bends (one radius, one plane) — double-curved (spherical) panels jump to specialized molds and cost multiples.
- Keep holes, notches and cutouts away from the curved zones; stress concentrates there.
- For tight radii, reduce thickness rather than fight springback — stiffness comes from the frame, not the panel.
- Order replacement strategy upfront: molds are stored, so repeat panels are cheaper than first ones.
Practical Minimum Radii by Thickness
Radius limits scale with thickness because springback grows faster than stiffness: thin glass takes tight curves; thick glass resists and fights back after release from the mold. Treat the figures below as feasibility bands to frame a conversation, then confirm against the actual drawing.
| Glass thickness | Typical minimum radius (thermal bend) | Notes |
|---|---|---|
| 6 mm | 300-500 mm | Most interior work: curved shopfronts, furniture, display |
| 8 mm | 500-800 mm | Doors, partitions, shower screens |
| 10 mm | 800-1200 mm | Balustrades, canopy edge panels |
| 12 mm and up | 1200 mm and larger | Structural uses; springback dominates the design |
From Drawing to Shipped Panel: The Production Sequence
- Drawing review: radius, arc length or angle, height, build-up and tolerances — chord-only sketches go back for definition before anything is cut.
- Mold or template making: CNC-machined to the exact curve and catalogued against the project code.

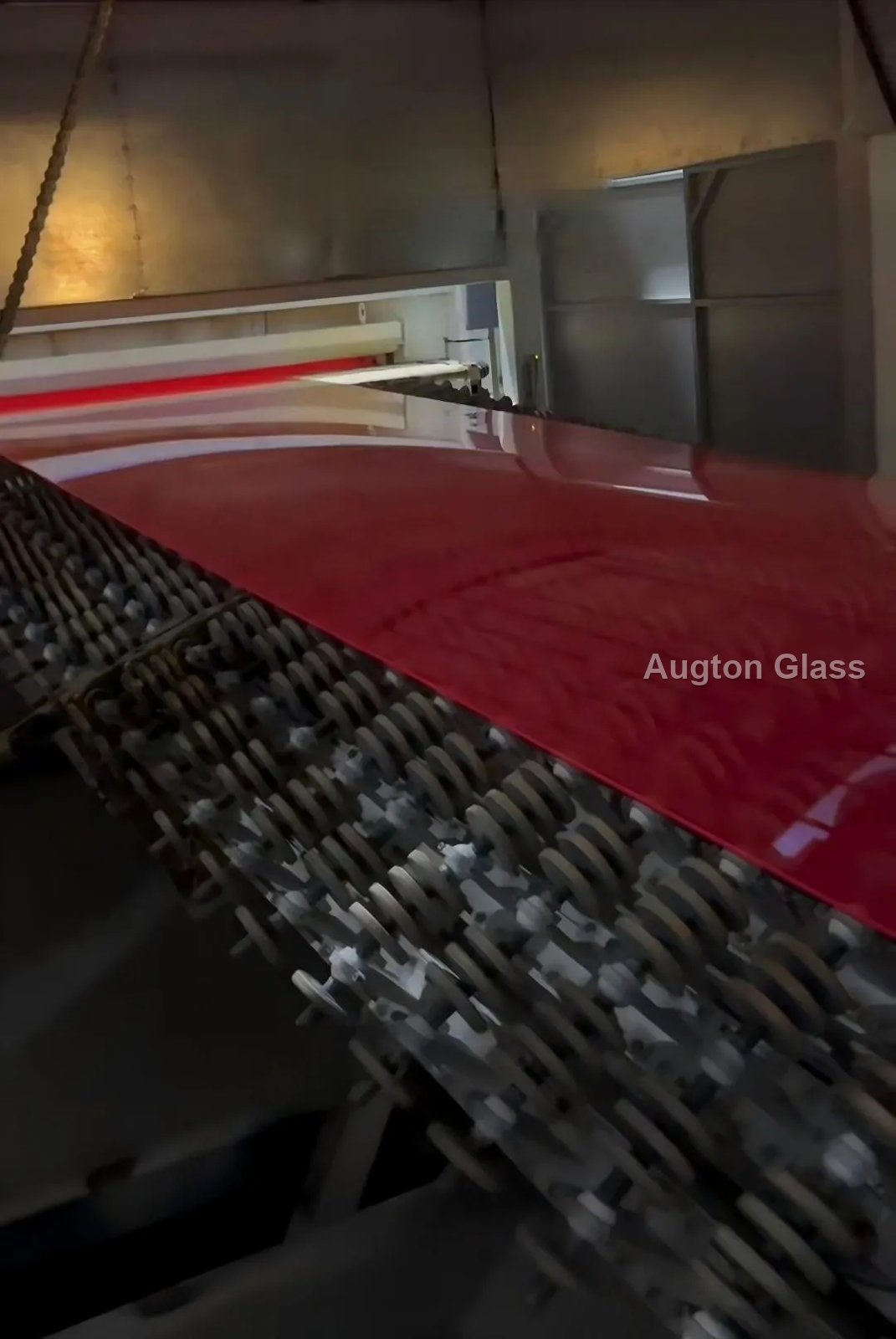

- Bending cycle: glass soaks near 600 °C, slumps or presses onto the mold, then cools under a controlled anneal.
- Optional tempering in the same furnace pass for safety-rated locations such as doors and balustrades.
- Edge work, holes and notches — kept away from curved zones where stress concentrates.
- Lamination or IGU assembly with bent spacers for insulated curved units.
- Inspection against the template gauge, then crating with shaped cradles that support the arc.
Site measurements must precede mold making, not follow it. A mold cut from unverified site dimensions bakes the error into every panel produced on that tool — and the tool, not the panel, is the expensive part to redo.
What Actually Drives the Price of a Curve
Four levers set curved glass pricing. Tooling: one mold per unique curve, amortized across the quantity produced on it — twenty panels sharing one radius price very differently from twenty unique curves. Geometry: tight radii and thick glass demand slower furnace cycles and carry higher reject rates. Process stack: each extra step (tempering, lamination, IGU assembly, coating before bending) adds both cost and tolerance stack-up, so a curved tempered laminated IGU is a different universe from a single bent lite. Quantity: bends love repetition — value-engineer the design toward shared radii and the per-panel price follows. This is also why early fabricator involvement pays: a 5% radius change at sketch stage can halve the tooling count; the same change after molds exist doubles nothing but the cost.
Curved Glass in Practice: Three Worked Examples
Curved storefront corner
A retail corner in 8 mm curved tempered glass on a 900 mm radius replaces two flat panels and a heavy corner post. The glass bends and tempers in one cycle; the frame is a simple channel. Budget the mold against maybe six panels — modest quantities, modest tooling, instant street presence.
Curved balustrade on a stair
Balustrade curves run 10 mm minimum for stiffness, which pushes the practical radius beyond 800-1000 mm. Where the stair turns tighter, the honest answer is a segment of curved laminated panels with visible but deliberate joints — glass balustrade hardware adapts to curved base shoes if the radius is consistent.
Curved IGU facade corner
Conditioned buildings need insulated glass even around the corner: two curved lites assembled with a bent spacer into a sealed unit. Tolerance stack-up is real here — curve, then laminate, then IGU — so the fabricator quotes feasibility against the drawing before promising the corner matches the elevation render.
Frequently Asked Questions
What is the tightest radius possible in curved glass?
It depends on thickness: roughly 300-500 mm radius for 6 mm, scaling upward with thickness. Tighter radii are possible with thinner glass or segmented construction — send the drawing for confirmation.
Can curved glass be tempered?
Yes — bending and tempering happen in the same furnace cycle, producing curved tempered glass for doors, balustrades and safety glazing. Curved laminated and insulated builds are also standard.
Is cold-bent glass a real alternative?
For gentle curves (large radii, typically over 3-5 m) yes — flat glass is forced and held by the frame. It avoids mold costs but imposes permanent stress and needs careful engineering; tight radii still require thermal bending.
How are curved glass dimensions specified?
By radius, arc length (or angle) and height, plus glass build-up. Chord-and-depth drawings cause the most factory queries — define the radius and angle explicitly.
Do you keep molds for repeat orders?
Yes — molds are catalogued per project and stored, so repeat panels and phase-two orders skip the tooling cost and lead time.
What are the size limits for curved panels?
Bending furnace height typically caps panels at 2.4-3.6 m depending on the machine; length follows arc length. Taller curved units are built as laminated pairs of curved lites — send the drawing for a definite answer rather than a rule of thumb.
How is curved glass packed for export?
In crates with shaped cradles that support the arc, foam interleaves, and orientation marking so the curve never carries a point load. Repeat orders reuse the same cradle design, which is stored together with the mold.
Can curved glass carry a low-E or reflective coating?
Yes — coatings are applied before bending so the heat of the bend fires them on. Confirm the coating choice early with the bending fabricator, since some coatings behave differently through the bending cycle and a swap after tooling is a costly restart.
What tolerance should I expect on arc geometry?
Typically ±2-3 mm on the arc against the template gauge, tighter on request for visible signature curves. This is why site dimensions freeze before tooling and why curved panels are checked against a physical gauge, not a drawing alone.
How does lead time for curved glass compare with flat?
Add roughly 1-2 weeks over equivalent flat work for the mold and bending cycle on first orders. Repeat panels against a stored mold run close to flat-glass schedules — another reason to keep radii shared across a project.
The Bottom Line
Send the radius, arc and build-up — we will confirm feasibility, tooling cost and per-panel pricing within 24 hours.
