U-Glass, Glass Block and Fused Glass: Textural Architecture
Three ways to build with glass where the material itself is the facade: channel glass's fluted planes, glass block's luminous masonry, and fused glass's artisan depth.
- U-glass is structure and skin in one profile: full-height translucent walls with minimal framing, single- or double-glazed.
- Glass block buys privacy, impact resistance and 30-90 min fire ratings — but panels are modular and never trimmed on site.
- Fused glass is sample-driven: approve texture and color tiles in the real light before production panels follow.
- Assembly choice matters: mortar gives the classic masonry read; silicone-bonded systems build faster and curve naturally.
- All three lines accept sample and small-pallet orders with export crating and container loading plans.

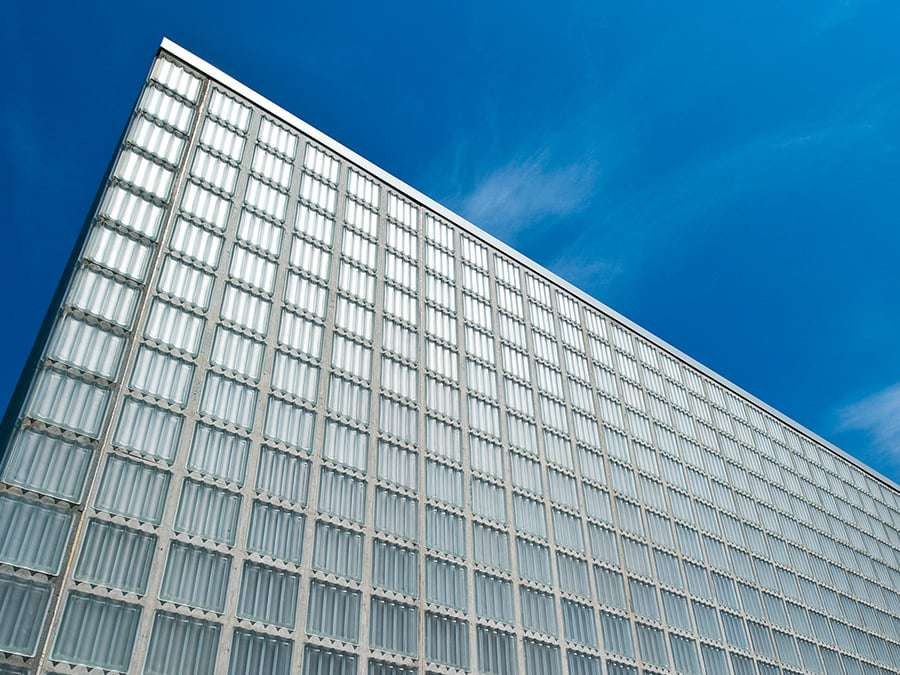

U-Glass (Channel Glass): Walls of Fluted Light
U-glass is a self-supporting channel-shaped profile — a structural glazing material, not just cladding. Panels interlock vertically into continuous walls several meters tall with no visible framing: the classic look of parking structures, stairwells, facades and industrial renovations that want translucency with privacy. Light transmission runs 70-85% while silhouettes behind the glass blur into texture.
The practical numbers: standard widths around 232-330 mm, flange depths 41-60 mm, lengths up to ~6 m, installable single- or double-glazed (two layers face-to-face for better thermal and acoustic values). It is tempered or heat-strengthened on request, cuts with standard tools, and weighs a fraction of the masonry look it creates.
Performance comes in layers. A single-glazed wall sits around U 3.0-4.5 W/m²K; interlocking a second layer roughly halves that, and factory-supplied thermal inserts close most of the remaining gap. Surfaces can be clear, sandblasted or wired, and profiles run vertical or horizontal — the flutes read completely differently in each orientation, so confirm the direction on a mock-up before ordering hundreds of meters. Impact resistance and non-combustibility make it a quiet favorite wherever code and graffiti-prone locations meet.
Installing U-Glass: The Sequence
- Confirm wall height against profile length — U-glass runs full-height from floor track to head track, so the profile is ordered to the opening, not cut later.
- Fix perimeter tracks (floor, head and jambs) plumb and true; the tracks carry the wall's lateral loads.
- Set the first panel with setting blocks and check verticality — every following panel inherits any lean.
- Stack and interlock panels flange to flange; double-glazed walls interlock two layers face-to-face with an air cavity between them.
- Seal perimeter and panel joints with compatible silicone; leave the head joint able to absorb thermal movement.
- Add wind bracing at the intervals shown on the engineering drawing for exposed elevations.
- Clean flutes before the final silicone skin forms — flute channels collect construction dust on a careless install.

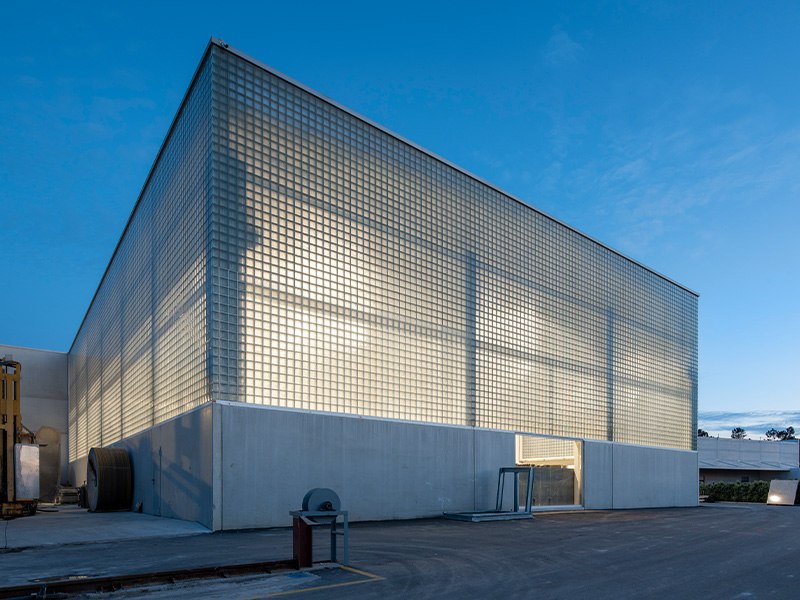

Glass Block: The Luminous Masonry
Glass block is hollow, partially evacuated glass masonry — mortared or silicone-bonded into walls that pass light but not sight, and resist impact and fire far better than any window. Bathrooms, basements, garages and industrial windows are the residential classics; designer facades use it in curved or patterned walls where its modular rhythm becomes the architecture.
Specifications that matter: size (190/240/300 mm squares dominate), pattern (clear, wave, frost), fire ratings (30-90 min assemblies exist) and perimeter reinforcement for load-bearing or safety-critical walls.
Weights and limits deserve respect: a block wall runs roughly 100-130 kg/m², so the surrounding structure must be designed for it, and panel sizes are capped — large walls are broken into panels with control joints rather than built as one endless sheet. Pattern choice is the privacy dial: clear gives maximum light with visible silhouettes, wave distorts gently, frost anonymizes completely. Sound insulation improves over any window of the same thickness, which is why block walls persist in mechanical rooms and stairwells.
Glass Block Walls: Mortar or Silicone?
Two assembly systems dominate, and the choice changes the wall's look, speed and structure:
| Attribute | Mortar-laid (traditional) | Silicone-bonded (spacers) |
|---|---|---|
| Joint appearance | Mortar joints, classic masonry read | Near-invisible joints, floating glass look |
| Reinforcement | Steel rods in every second horizontal joint | Perimeter frame carries the loads |
| Speed of installation | Slower, mason-skill dependent | Faster, alignment built in |
| Curved walls | Possible but labor-heavy | The natural system for curves |
| Fire-rated assemblies | Standard path (30-90 min systems) | Per tested system documentation |
Fused Glass: Artisan Depth at Scale
Fused glass layers and melts multiple glass sheets in a kiln — bubbles, textures and color pools become permanent three-dimensional features. Long a studio craft, it now scales to architectural use: lobby feature walls, bar fronts, reception desks and decorative glass wall installations where the panel is the artwork. Every panel is slightly unique; budget for sample-driven approval rather than exact repeatability.
Practical limits keep expectations honest: panel size is bounded by kiln dimensions (typically under 2 × 3 m per piece), thickness builds from the layer stack rather than cutting, and production panels vary slightly in bubble density even within one firing — the sample approval defines the acceptable range rather than a single identical look. Edges can be left kiln-textured or ground flat, and fixing systems range from standoff pins through slots to framed channels, all sized to the real weight.
Fused Glass: From Sample to Wall
Kiln-forming runs at around 800 °C for a full fuse — slumping, bubbles and color pooling are controlled by the firing curve, which is why every panel carries its own character. The commercial workflow is sample-driven: we produce sample tiles of the agreed texture and color, you approve them under the actual light conditions of the space, and production panels follow the approved recipe. Panels are built from stacked lites — 2×8 mm and 3×10 mm builds are common, reaching 16-30 mm finished thickness — which is why lead times of 3-5 weeks and heavier-than-expected fixing details are both normal and worth planning for. Backlit installations need the LED layout designed behind the wall before panels are ordered, since light changes how the fused texture reads.
Choosing Between the Three
| Need | Best fit | Why |
|---|---|---|
| Long translucent facade on a budget | U-glass | Self-supporting, fast to install, minimal structure |
| Privacy window that feels like architecture | Glass block | Security + fire ratings + zero maintenance |
| Hero feature wall with organic depth | Fused glass | Unique kiln-formed character |
| Industrial renovation, stairwells, parking | U-glass | Vertical spans, impact resistance, low cost per m² |
Thermal and Acoustic Numbers at a Glance
Numbers this rough are for orientation, not specification — every product line has pattern- and profile-dependent variants. We issue the tested data for the exact profile, pattern and assembly with the quotation, which is what permits and consultants actually need.
| Metric | U-glass (single / double) | Glass block wall | Fused glass panel |
|---|---|---|---|
| Light transmission | 70-85% | Varies by pattern (clear ~80%) | Depends on layers and color |
| Thermal (typical U) | 3.0-4.5 / ~1.8-2.5 W/m²K | ≈2.7-3.2 W/m²K | Not an insulation product |
| Weight | A fraction of masonry | 100-130 kg/m² | Heavy per m² (multi-layer stack) |
| Privacy | Silhouettes blur into texture | Full visual privacy by pattern | Decorative, not privacy glazing |
| Fire / structure role | Non-combustible, self-supporting | 30-90 min rated assemblies exist | Feature element only |
Installation Notes Worth Knowing
- U-glass walls need only perimeter tracks and occasional wind bracing — the profile is the structure; specify orientation (flutes horizontal or vertical) early since it changes the look completely.
- Glass block wants properly sized openings: panels are modular and cannot be trimmed — the frame is built to the block, not the reverse.
- Fused glass panels are heavy per m² (multiple layers) — fixings must be designed for the weight, and backlit versions need LED planning behind the wall.
- All three accept our standard export crating; U-glass nests efficiently, block and fused panels pack individually.
Order U-glass by wall height minus the track allowance, and glass block by finished panel dimensions — neither can be trimmed on site. Send the opening schedule before ordering profiles or blocks and we return the exact stacking plan with the quotation.
Where Each One Earns Its Cost
- Budget-per-meter facades, stairwells, parking structures: U-glass wins on installed cost per m² of lit, private wall — nothing else builds a translucent wall with so little supporting structure.
- Security plus daylight: glass block's impact resistance and fire ratings lead its price band — the reason basements and light wells keep choosing it.
- Brand-defining interiors: fused glass costs real money per m², but on one reception wall or bar front it delivers what paint, stone and printing cannot — genuine three-dimensional depth that reads differently at every hour.
- Renovation overlays: all three suit projects where the existing structure cannot take heavy new loads — U-glass and fused panels weigh far less per m² than masonry look-alikes.
Textural glass is chosen with the hands as much as the eyes — order the samples, touch them, then commit the budget.
Frequently Asked Questions
Is U-glass structurally self-supporting?
Yes — the channel profile gives it longitudinal stiffness, allowing vertical walls without mullions up to several meters, subject to wind load. Perimeter framing and bracing per engineering drawings handle lateral loads.
Can U-glass be insulated?
Double-glazed U-glass (two interlocked layers with an air cavity) substantially improves U-value and acoustics — the standard approach for conditioned buildings.
Are glass blocks strong enough for a walkway or floor?
Specific structural-grade blocks are rated for pedestrian floor panels and are used in basement walkways and light wells — always as engineered assemblies with the manufacturer's structural data, never improvised.
Can fused glass be used outdoors?
Yes — kiln-formed panels are full-thickness glass and weather-stable. Exterior use mostly raises fixing and thermal-expansion questions, which we address in the mounting design.
What are U-glass maximum lengths?
Standard production reaches ~6 m; longer profiles are possible per project with special logistics. Send the wall height and we confirm the profile and transport plan.
What is the MOQ and how are these products packed for export?
Sample and single-pallet quantities are accepted on all three lines. U-glass nests into efficient container loads — a 20 ft container carries hundreds of square meters depending on profile; glass block palletizes densely; fused panels crate individually with foam separation. The quotation includes the container loading plan so freight is known before you commit.
How do I clean and maintain these glass surfaces?
U-glass and glass block wash like ordinary glass — mild detergent, a soft brush in the flutes or joints, no abrasives. Perimeter silicone is the maintenance item: inspect annually on exterior walls. Fused glass needs only a soft cloth; its texture shows hard-water spots, so in hard-water areas place it where a rinse or squeegee pass is practical.
The Bottom Line
Send the wall dimensions and the effect you're after — we will quote U-glass profiles, block patterns or fused panel designs with samples.
