Technical and Appliance Glass: Whiteboards, Switch Panels and Instrument Covers

Why Appliances Went Glass

Glass wins on appliances for three reasons: it takes ceramic printing (graphics that never wear — see our printing comparison), it cleans like a countertop, and it reads as premium. From oven doors to washing machine lids to coffee machine fronts, appliance glass is now the default face of white goods and small appliances.

The substrate choice follows the duty. Tempered soda-lime covers most control panels and door faces; borosilicate or glass-ceramic takes over where the surface itself gets hot — oven inner doors, hob covers, fire panels — because thermal-shock resistance, not strength, becomes the governing property. Matching substrate to duty early avoids the expensive discovery that a panel which survives handling still fails after its fiftieth heat cycle.

Glass Whiteboards: The Office Upgrade

Whiteboard glass replaces melamine and enamel steel boards: ghost-free erasing for the life of the wall, magnetic variants (backed with steel sheet), printed grids and logos, and frameless polished edges that suit modern interiors. The spec details that separate good boards from regrets: 4-6 mm tempered glass (thinner flexes and squeaks), a proven non-ghosting surface treatment, and wall-mount standoffs that keep the panel perfectly flat.

Sizing and mounting details complete the specification. Boards run from 600 × 900 mm personal boards to 1200 × 2400 mm wall-spanning panels; panels above roughly 1.8 m in width are made 6 mm to control flex between standoffs. Standoff hardware fixes through pre-drilled holes (typically four per panel) with wall anchors doing the real work — drywall-only mounting is the most common installation failure we hear about. Rounded corners, polished edges and optional magnetic backing round out the order sheet.

Glass Switch Panels: Touch Meets Glass

Glass switch panels put capacitive touch behind printed glass — the control interface of smart homes and hotels. The manufacturing stack: 3-4 mm tempered glass, ceramic-printed legends and icons, optional IR/UV blocking zones, and edge grinding tuned for flush bezel mounting. Color consistency across a building's panels is a batch discipline — panels ordered from one production run match exactly.

Behind the glass, the touch layer is engineered as a matched pair: capacitive sensitivity is tuned to the panel thickness, so a 3 mm and a 4 mm build are not interchangeable — changing thickness after the electronics are fixed shifts touch thresholds. Tight radius corners (smaller than standard grinding allows) and flush-mount bezels are common hotel requirements; both are done before tempering and belong on the drawing, not the purchase order.

Ceramic Printing: From Artwork to Fired Panel

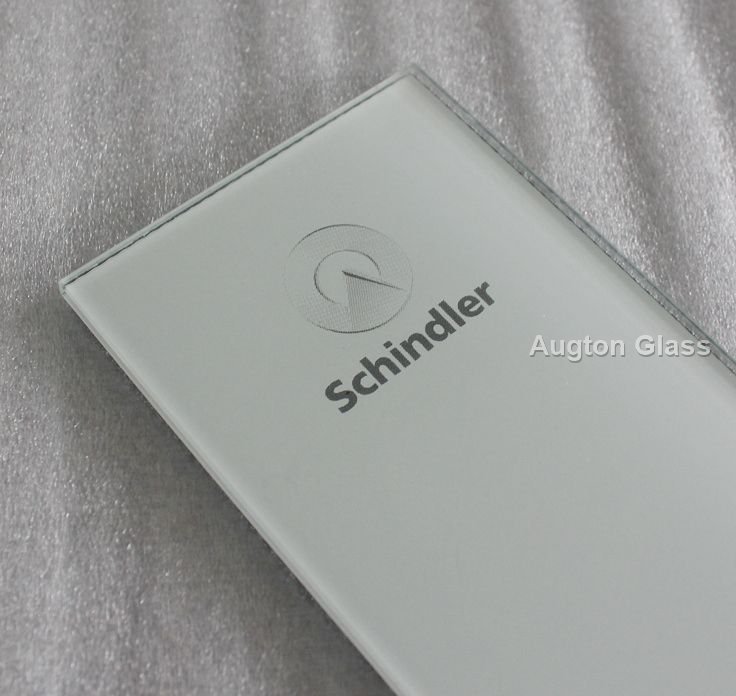

Printed legends survive appliance life because the ink is glass-ceramic enamel fired into the surface, not paint sitting on top. The production chain:

1. Artwork is prepared as vector files; every color becomes a separate screen in the print sequence.
2. Screens are made at the right mesh for each element — fine legends need finer mesh than solid back-panels.
3. Ceramic enamel ink is printed on the annealed glass; multiple passes build opacity for white and light colors.
4. Panels run through the tempering furnace at ~700 °C, where the enamel fuses permanently into the glass surface.
5. Color is checked under standardized lighting against the approved master panel — batch-to-batch consistency is the real QC work.
6. Post-print inspection covers registration, pinholes and edge cleanliness before panels move to packing.

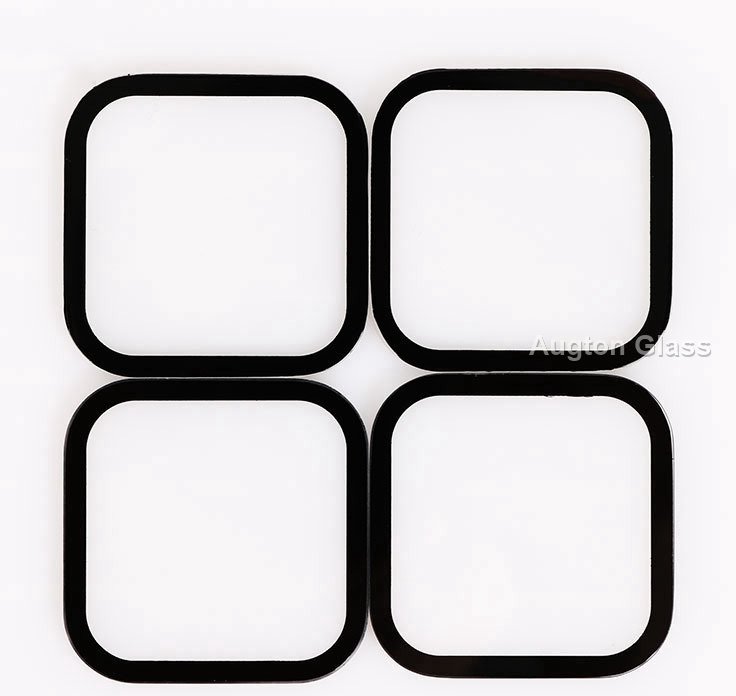

Instrument and Equipment Covers

Instrument glass covers gauges, meters, analyzers and control cabinets: optical clarity where operators read needles and screens, chemical resistance where panels get wiped down, and anti-reflective or anti-glare finishes where lighting is hostile. Small, precise, often drilled and printed — this is CNC and silkscreen territory more than flat-sheet commodity work.

Anti-glare (etched) and anti-reflective (coated) finishes are the two answers to hostile lighting, and they behave differently: etched AG diffuses reflections at the cost of slight haze, while AR coatings keep clarity and cost more — control cabinets in bright halls usually take AG, laboratory and analyzer covers with screens behind take AR. Small drilled panels also ship with the question of print: many instrument covers carry scale marks or warnings, which ties the order back into the ceramic printing line.

Tolerances That Decide Fit

Appliance and technical panels drop into housings with little slack — these are the tolerances we hold as standard on tempered soda-lime panels:

What We Need to Quote Technical Glass

• Drawings with tolerances: hole positions, edge radii, thickness at critical points.
• Print artwork or the existing panel to match — silkscreen legends are matched color by reference.
• Environment: temperature range (drives heat glass choices), humidity, cleaning chemicals.
• Volumes: prototype quantities and series quantities price differently; both are producible.
• Compliance needs: food-contact, IK/impact or electrical housing ratings where applicable.

Prototypes, MOQ and Series Production

Technical glass runs in two economies. Prototypes and first articles are produced from single crates — worth doing before committing tooling, because a printed sample settles color, edge finish and fit questions that drawings cannot. Series production amortizes screen setup and runs on batch discipline: one production batch per color keeps a whole building's switch panels identical.

Typical prototype lead time is 7-12 days after artwork approval; series orders are scheduled by volume with the artwork locked as a controlled document. Reorders are matched against the stored master panel, so a panel ordered two years later still lands the same white and the same icon weight.

Common Failure Modes We Screen For

• Edge chips from unlined handling — the reason every technical panel ships edge-protected, and the first thing incoming inspection should check.
• Print registration drift across a batch — caught by master-panel comparison under standardized light, not by eye in the packing bay.
• Hole-edge breakout from drilling worn panels — solved by tooling discipline and first-article checks, not by sorting after the fact.
• Thermal cracking where the wrong substrate met the duty — avoided by the substrate-to-duty review at quotation, before anything is cut.
• Ghosting on whiteboards bought on price alone — the surface treatment is the product; we test erase cycles on every production batch.

Appliance glass is judged over ten thousand open-close cycles — we build and test for the ten-thousandth, not the first.
