Greenhouse and Horticultural Glazing: Light, Heat and Louvers
Commercial growers don't pick glazing by looks — they pick it by photosynthetically useful light, heat retention and how much crop a pane shade costs. The numbers that decide.
- Growers buy PAR (400-700 nm), not brightness — clear greenhouse glass transmits ~90% of light.
- Diffusing glass trades 1-4% transmission for deeper canopy light penetration — a net yield gain on tall crops.
- Tempered 4-5 mm is the modern standard; laminated builds go over walkways and packing areas.
- Louver walls with 4-6 mm tempered louver glass blades give full ventilation with storm-safe sealing.
- Order glass cut to the bay schedule — tempered panels cannot be trimmed on site.

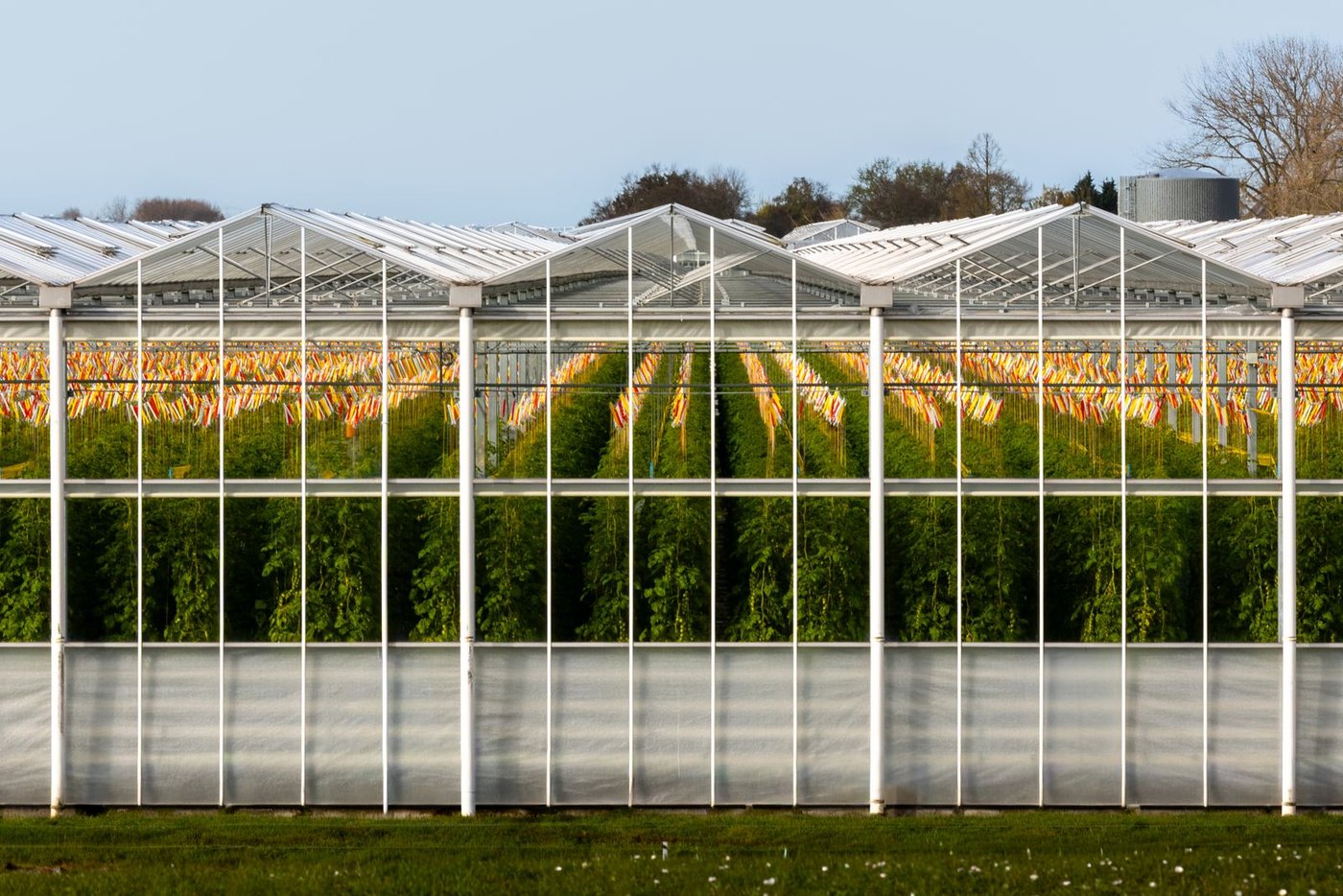

The Grower's Metric: PAR, Not Brightness
Plants don't use all light equally — photosynthetically active radiation (PAR, 400-700 nm) is what drives growth. Glazing choices trade total light transmission, PAR quality, heat retention and durability. Clear greenhouse glass transmits ~90% of light with excellent PAR passage; low-iron glass pushes clarity further; diffusing glass scatters light deeper into the canopy, which modern vegetable and cannabis operations pay premiums for because scattered light reaches lower leaves instead of burning the top row.
Tempered, Wired or Film — Safety Over Crops
Glass above people and crops must fail safely. Tempered greenhouse glass is the modern standard; in some markets wired glass persists for fire-adjacent rules, and laminated builds serve where overhead glass covers walkways or packing areas. Hail-prone regions specify tempered with higher impact classes — the crop-to-glass economics invert quickly when a hailstorm takes out a season.
Louver Glass: Ventilation as Architecture
Louver glass — narrow blade-style panes in operable frames — is the workhorse of greenhouse ventilation walls and tropical buildings: full airflow when open, weather sealing when shut. Blades are tempered, typically 4-6 mm, and clip into standard louver hardware. Because blades are small and interchangeable, breakage replacement is trivial — one reason louver walls dominate in hot, storm-exposed climates.
Solar Glass and Energy Balance
The energy question cuts both ways: greenhouses need sun by day and lose heat by night. Solar glass technologies bridge the gap — photovoltaic glazing generates power while transmitting selected wavelengths, and thermal screens/Coated glass manage nighttime heat loss. Semi-closed greenhouses now run dynamic glazing strategies borrowed from low-E facade design, trading light for climate control by season.
Specification Checklist for Growers
- Match transmission and diffusion to the crop: leafy greens tolerate more diffusion; fruiting crops want maximum PAR.
- Tempered per code for any glazing above head height or over walkways.
- Consider double-glazed gable walls and end walls where heating costs dominate.
- Louver walls: confirm blade hardware compatibility (blade length and clip pitch) before ordering glass.
- Order glass cut to bay geometry — retrofit trimming destroys tempering; supply bay dimensions, not guesswork.
Transmission Numbers by Glazing Type
Two cautions on the table. First, transmission claims are measured on clean, new glass — condensation films and dust on real roofs cost several points that washing recovers. Second, polycarbonate loses transmission as it yellows over seasons while glass does not, which is why the lifetime-average gap is wider than the new-build numbers suggest. Low-iron formulations matter most where spectrum neutrality drives color and compact growth — the reason premium ranges accept the cost premium for the extra couple of points.
| Glazing type | Light transmission | PAR passage | Best suited to |
|---|---|---|---|
| Clear tempered single glass 4-5 mm | ~89-90% | Excellent | General vegetable and flower production |
| Low-iron tempered glass | ~91-92% | Excellent, neutral spectrum | High-light crops, research and premium ranges |
| Diffusing (structured or etched) glass | ~86-89% | Excellent, scattered deeper into canopy | Tall fruiting crops, cannabis, pot plants |
| Double-glazed glass 4-16-4 | ~76-80% | Good | Cold-climate gables and end walls where heating dominates |
| Polycarbonate multiwall | ~76-82% new, declining | Good | Budget builds, hail-exposed zones |
Condensation, Roof Geometry and Water Management

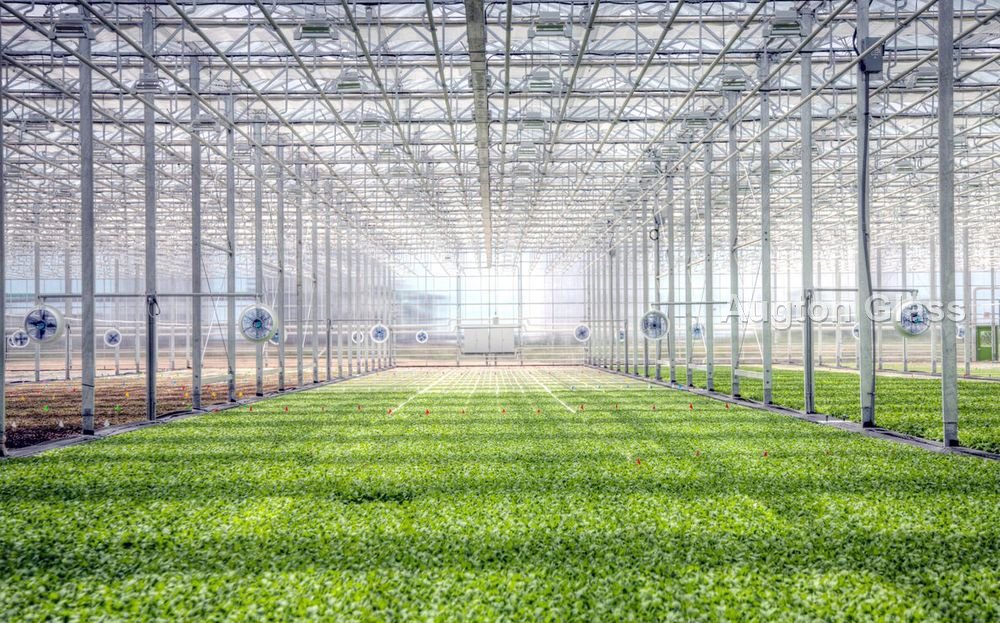

A greenhouse roof is a condensation machine by design: humid air meets cool glass every night. Good glazing details turn that from a drip hazard into controlled water: condensation channels on the glazing bar profiles collect film condensation and route it to gutters instead of onto leaves. Panel length and lap follow the bar system — typical roof bays run 1.0-1.65 m wide by panel lengths matched to gutter spacing, with end laps sealed per the bar manufacturer's details.
Roof pitch plays in too: steeper roofs shed condensation along the glass rather than dripping at the lap, and they shed snow. In cold-climate ranges, double glazing the end walls and gables cuts night heat loss substantially while the roof stays single-glazed for maximum light — a common hybrid because roof area drives light and wall area drives heat loss.
Ordering, Packing and Fitting Notes
- Freeze the bay schedule: panel count, sizes, roof vs wall splits, louver blade lengths and clip pitch — all geometry comes from this document.
- Confirm bar system compatibility: glass thickness range and blade lengths must match the glazing bar and louver hardware datasheets.
- Order with the safety plan in mind: tempered over open crop areas, laminated over walkways, packing areas and anywhere overhead glass meets people.
- Specify crating by bay: panels packed in installation order per bay lets crews work from the crate without re-sorting.
- Fit setting blocks and follow the bar system's edge clearance — typically 3-5 mm per edge — so glass never sits hard against steel.
- Wash and inspect after fitting; haze from packing or handling is cheaper to fix the day of installation than the week before harvest.
Never order "standard sizes" and plan to trim on site. Tempered greenhouse glass is cut to size before tempering — any attempt to trim it after treatment destroys the panel entirely. Supply the bay dimensions to the factory and let the cutting happen while the glass is still annealed.
Hail, Storms and Insurance Reality
Hail risk reorders the whole glazing decision. Tempered glass carries good impact ratings for its weight, but a serious hailstone on a light 4 mm panel is a loss; some growers respond with heavier builds, some with laminated roof zones over the most valuable crop, and some accept polycarbonate in hail alleys. The economics are crop-specific: a season of high-value produce behind a hailstorm loss dwarfs the glazing cost difference, which is why insurers increasingly ask for impact class documentation on glass roofs. Whatever the region, keep a spare percentage of roof panels in local storage — storm replacement is measured in days of lost climate control, not glass price.
We pack greenhouse panels by bay and label every crate — a planting season does not wait for a crew to hunt through mixed crates for one roof panel.
Cleaning and Seasonal Maintenance
- Wash glass between crop cycles with soft brushes and neutral detergent; recovered transmission pays back the labor within weeks in light-limited seasons.
- Inspect glazing bar seals and lap tapes annually — a lifted lap tape admits water and breeds algae that permanently etches glass.
- Clear condensation channels and gutters before the humid season; blocked channels drip onto crops exactly where disease pressure is worst.
- Replace cracked panels immediately: a small roof crack becomes a wind-lifted panel, and one missing panel pressurizes neighbors to fail next.
- Keep gaskets and clips in stores alongside the spare glass percentage — a storm repair needs both, not just glass.
Frequently Asked Questions
Is glass better than polycarbonate for greenhouses?
Glass transmits more light (especially after polycarbonate yellows), lasts decades and resists scratching; polycarbonate insulates better per weight and survives hail flex. Commercial high-light crops lean glass; budget and hail zones often lean PC.
Does diffusing glass reduce total light?
Slightly — 1-4% transmission loss — but it redirects light into the lower canopy, raising usable PAR per plant. For tall crops the yield gain outweighs the small transmission cost.
What thickness is greenhouse glass?
Commonly 4-5 mm tempered for standard bars and panels; heavier builds or double glazing in cold climates. Louver blades run 4-6 mm tempered to the hardware's blade length.
Can greenhouse glass be diffused and tempered together?
Yes — diffusion comes from the glass texture or interior etch, tempering from the heat treatment; both combine in one pane, which is the standard commercial build.
Do you supply glazing for full greenhouse projects?
Yes — roof and wall panels, louver blades and gable glazing, cut to bay schedules and crated for export. Send the bay drawing set for a per-panel quote.
How long does tempered greenhouse glass last?
Decades — glass does not yellow, embrittle or lose transmission like polymer glazing. The service-limiting parts are gaskets, clips and bar seals, which are cheap and renewable. That transmission stability over 20+ years is the core argument for glass in high-light production.
How is greenhouse glass packed for export?
Vertically in timber crates, size-sorted per bay with foam interleaves and edge protection, louver blades boxed by length and clip pitch. Crates are labeled by bay and roof/wall zone so installation crews can sequence directly from the packing list.
Can you supply glass for retrofitting an older glasshouse?
Yes — send the bar system name and measured bay dimensions, including any panels that vary. Old ranges often have mixed bay sizes from previous repairs, so a per-panel schedule with locations avoids ordering 200 identical panels for a roof that is not uniform.
The Bottom Line
Send your bay schedule and crop type — we will return glass recommendations with transmission data and export pricing.
