Glass Railings vs Traditional Railings: The Modern Architectural Shift
Balustrades went from metal pickets to invisible glass in fifteen years. What changed — and what to specify so a glass railing stays code-compliant and crystal-clear for decades.
- Glass balustrades meet the same 0.74-1.0 kN/m line loads as picket railings while keeping the view — that is why the market converted.
- Channel mounting is the workhorse system; frameless and glass-handrail builds require tempered-laminated glass.
- 10-12 mm tempered suits most channel systems; 8+8 or 10+10 laminated for structural frameless runs.
- All holes CNC-drilled before tempering — site drilling voids the safety rating.
- Coastal projects need 316 stainless hardware and a rinsing routine, or the hardware fails before the glass does.
Why Glass Won
Traditional railings — steel pickets, timber balusters, cable systems — have one thing in common: they interrupt the view. Glass balustrade systems remove the visual barrier entirely while meeting the same code loads, which is why balconies, staircases, terraces and pool surrounds converted wholesale. The bonus effects: glass doesn't block daylight on internal stairs, doesn't rust or rot, and wipes clean instead of needing repainting.
The Four Mounting Systems
Spigot (Core-Drill) Mounted
Round stainless spigots grip each panel through drilled holes or clamps into floor sockets. Minimal hardware, maximum transparency, but panels need regular tension checks and the mount shows at the base.
Channel (Base Shoe) Mounted
Panels drop into an aluminum or steel channel that can be dry-set with wedges or wet-set in grout. The channel hides the fixings completely — currently the most popular system for decks and balconies. Structural glass variants eliminate the handrail too.
Standoff / Point-Fixed
Glass stands off the structure on cylindrical standoffs through drilled holes — a crisp look for interior stairs and mezzanines where the floor edge is accessible.

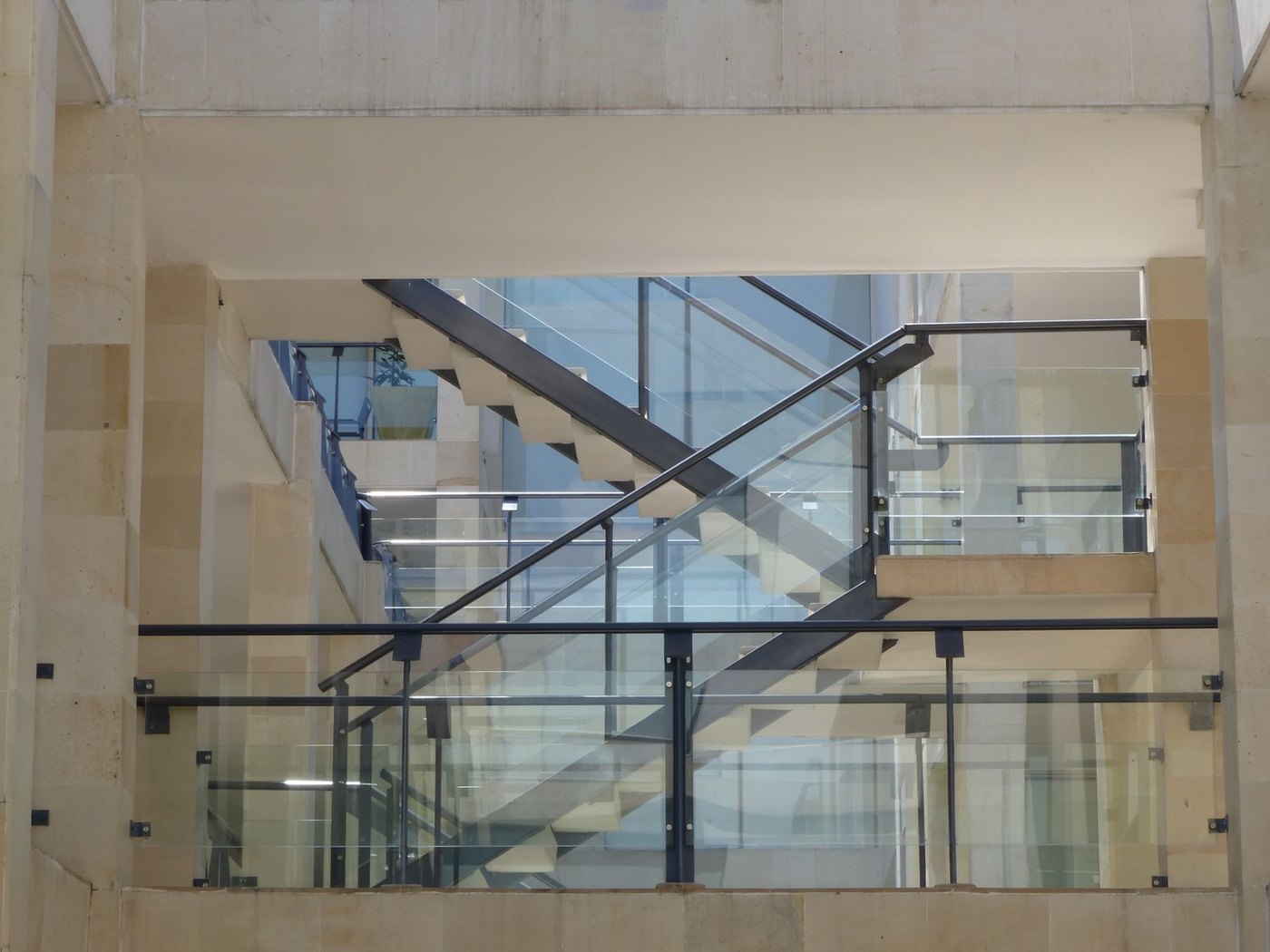

Framed / Post-Supported
Glass infill panels between steel or aluminum posts. Most economical, easiest to code-certify, and the right answer where panels span long distances or winds are severe.
Glass Choice: Where Safety Regulations Bite
Codes worldwide (IBC in the US, EN 12600/1991 in Europe, AS 1288 in Australia) treat balustrade glass as a location where people can fall against it. That drives two requirements: all panels must be safety glass — tempered as the minimum — and for any panel where breakage could create a fall gap (especially with a glass top rail acting as a guard), tempered-laminated glass is specified so the barrier survives panel breakage.
Typical residential builds: 10-12 mm tempered in channels; 8+8 or 10+10 mm tempered-laminated for frameless structural balustrades and anything with a glass handrail.
Full Glass Staircases: The Statement Version
When the staircase itself goes glass — treads, risers and balustrade — the engineering steps up. Glass staircases use thick laminated treads (typically three or more plies) calcuated for point loads, and stair tread glass with anti-slip textures or etched strips underfoot. The result reads as pure architecture, and it is why this category commands premium budgets.
Specification Checklist
- Confirm governing code and load requirement (typically 0.74-1.0 kN/m line load) before choosing the mounting system.
- Frameless + glass handrail = laminated glass, no exceptions in most jurisdictions.
- Specify polished edges — exposed raw edges on balustrade glass are both a hazard and a chip risk.
- Order panels with factory-drilled holes for spigots/standoffs; site drilling voids tempering safety.
- For coastal balconies, specify 316-grade stainless hardware and consider a marine-grade coating on the channel.
Lifecycle Cost: Glass vs Steel vs Cable
The honest comparison is not purchase price but cost per year of view. Steel wins the first invoice and loses the repaint cycle; cable wins on hardware cost and loses on tension maintenance; glass carries the highest upfront number and the lowest lifetime fuss. For waterfront and view-driven residential work, that arithmetic is why glass keeps taking share.
| Factor | Glass balustrade | Steel picket railing | Cable railing |
|---|---|---|---|
| Initial cost per meter | Medium-high | Low-medium | Medium |
| View obstruction | None — continuous transparency | High — pickets every 100 mm in many codes | Low but visible horizontal lines |
| Maintenance cycle | Glass cleaning + channel debris rinse; no repainting | Repaint or recoat every 3-7 years outdoors | Tension checks and cable re-tensioning annually |
| Typical service life | 25+ years (glass itself indefinite) | 15-25 years with coating upkeep | 15-20 years, hardware-limited |
| Code review | Well-established load paths; straightforward | Straightforward | Child-safety rules on cable spacing need checking |

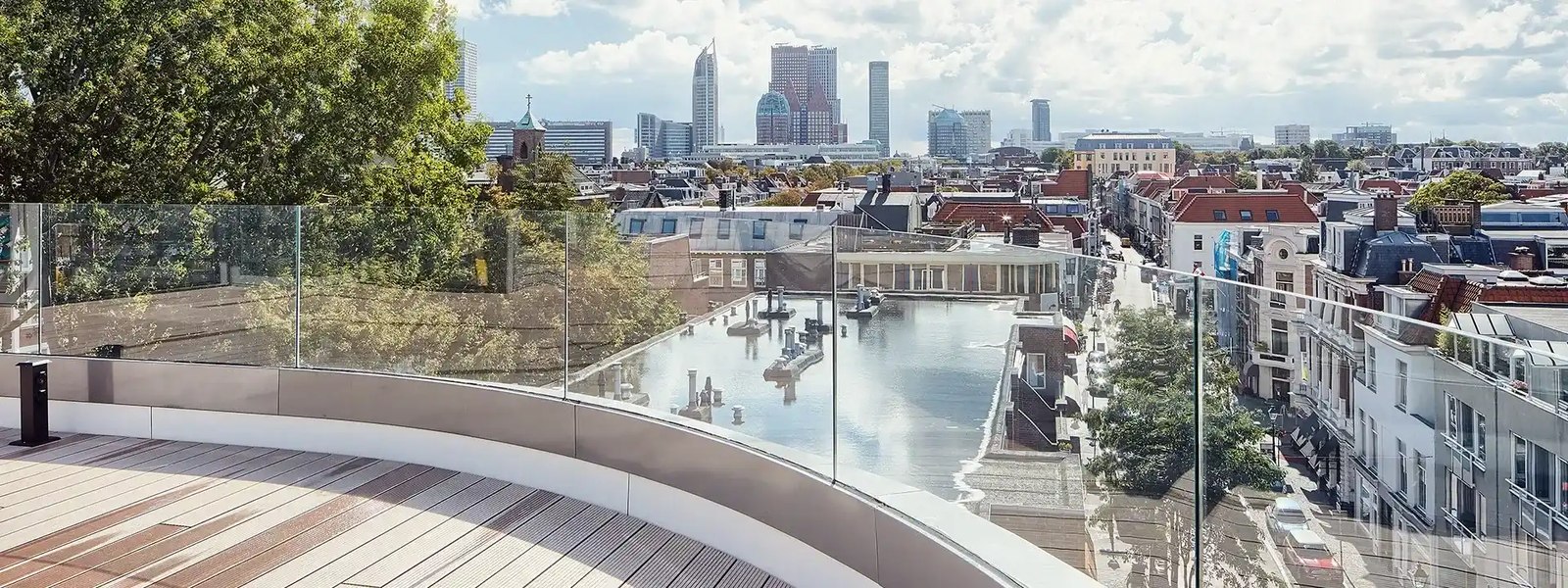

Wind Loads, Height and Structural Considerations
Indoor stairs see one load case; a 20th-floor balcony sees another. Design wind pressure scales with height, exposure and local code — from roughly 0.5 kPa on sheltered low-rise work to 1.5 kPa and beyond for exposed high-rise — and the panel bends under it like a vertical plate. Thicker panels, closer post spacing or post-supported systems absorb that load; a frameless channel system that passes at ground level can deflect visibly at height. Deflection limits, not breakage, usually govern the design: codes typically cap lateral movement so the panel stays inside its channel under gust load.
Floor-edge condition decides the mount. A slab with a formed upstand accepts a surface channel; a structural topping or paver system may need a recessed channel cast in; steel-framed edges favor post systems with welded base plates. Survey the slab before ordering — panel heights and channel lengths are cut to the surveyed dimensions, and glass cannot be re-cut after tempering.
Installation Sequence for Channel Systems
- Survey the finished slab: level, length, and edge condition — confirm against panel schedule before releasing production.
- Set and anchor the channel to line and level with shims; correct channel alignment now is what makes the glass line read straight later.
- Dry-fit a few panels to verify fit and reveal any slab variation before setting the full run.
- Set panels with the specified wedge or grout system, keeping even reveals at every joint (typically 8-12 mm).
- Fit handrail or cap rail where specified, then torque all fixings to the hardware supplier's values.
- For wet-set systems, protect the channel during cure and keep traffic off until the specified strength is reached.
Never drill, notch or edge-cut tempered railing glass on site. Tempering locks surface compression in place — any cutting after treatment shatters the panel and voids certification. Every hole for spigots and standoffs must be CNC-drilled before tempering, which is why hardware hole patterns must be finalized before production starts.
Retrofitting Traditional Railings to Glass
Many conversions keep the structure and swap the infill: existing steel posts accept new glass clamps or post-mounted channels, and masonry balustrades take channel systems anchored into the coping. The survey questions are load path (do the existing posts carry the line load without the old infill acting with them?), fixing substrate (concrete, steel or timber changes the anchoring), and panel height against the new infill geometry. Where the old railing was also the guard, the replacement glass must qualify as the guard itself — which pushes the build to laminated per the code logic above. Retrofits are cheaper than rebuilds, but only when the substrate is verified before glass is ordered.
The best railing projects measure the slab twice and order once — glass tolerances are tight because glass never gets re-cut after tempering.
Frequently Asked Questions
Is 10 mm tempered glass enough for a balcony railing?
For channel-mounted systems with a metal handrail, 10 mm tempered meets most residential codes. Frameless systems and any configuration with a glass handrail generally require tempered-laminated panels — confirm with your local code.
Why laminated glass for frameless balustrades?
If a single tempered panel breaks, the opening becomes a fall hazard until replaced. Laminated panels hold together and keep the barrier functional after breakage — the logic behind most modern code requirements.
Can glass railings handle strong wind loads?
Yes, when the panel thickness and mounting are engineered for the site's wind pressure. High-rise and exposed coastal sites typically move to 12-17.5 mm builds or post-supported systems.
How do you clean outdoor glass railings?
Standard glass cleaner and a squeegee, plus periodic rinse of the channel to clear debris. Coastal installations benefit from quarterly fresh-water rinsing to limit salt buildup on hardware.
Do you supply railing glass with holes pre-drilled?
Yes — all spigot and standoff holes are CNC-drilled and countersunk before tempering, to your hardware supplier's hole pattern. Send the fitting drawings with the panel schedule.
How long do glass railing panels last outdoors?
The glass itself is effectively permanent — tempered and laminated panels do not corrode, rot or fade. What ages is hardware and mounting: gaskets, channel coatings and stainless grade decide whether the system looks new at year 20 or needs hardware renewal. That is why hardware specification matters as much as glass thickness.
Can I convert my existing wood or steel railing to glass without replacing everything?
Often yes — if the posts or balustrade structure are sound, glass can be fitted with clamps or channels onto the existing structure after a load and substrate check. If the old railing was the only guard, the new glass build must qualify as the guard, usually requiring laminated panels.
How are railing panels packed and shipped?
Vertically in timber crates with foam interleaves and corner protection, holes protected, hardware boxed separately. Panel crates are forkliftable for site handling. Tell us site access constraints — narrow stair landings and elevator limits shape crate size.
The Bottom Line
